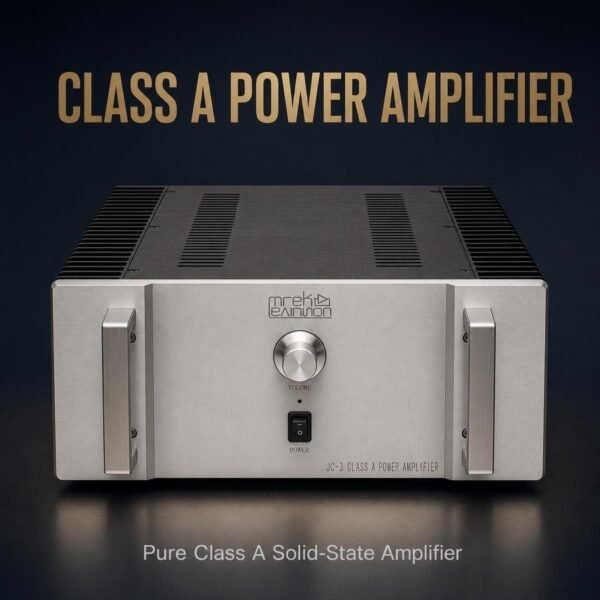

Faithfully reproduces the classic Mark Levinson ML2/JC3 circuitry, featuring true pure Class A 25W+25W output, 12 high-quality Onsemi gold-label power transistors, and independent dual 200W toroidal transformers, providing discerning audiophiles with a warm, tube-like musical performance.

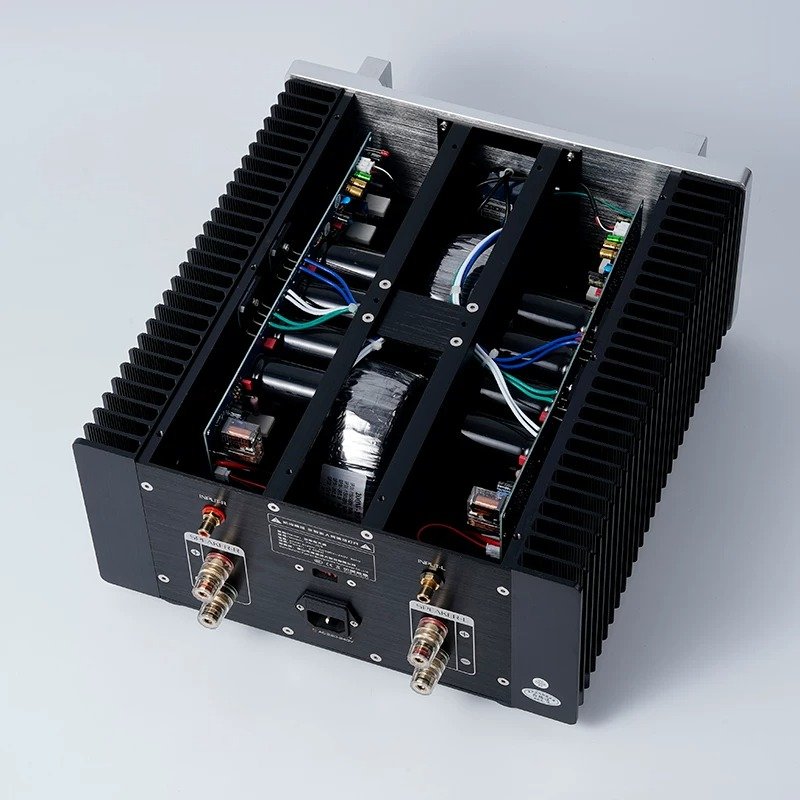

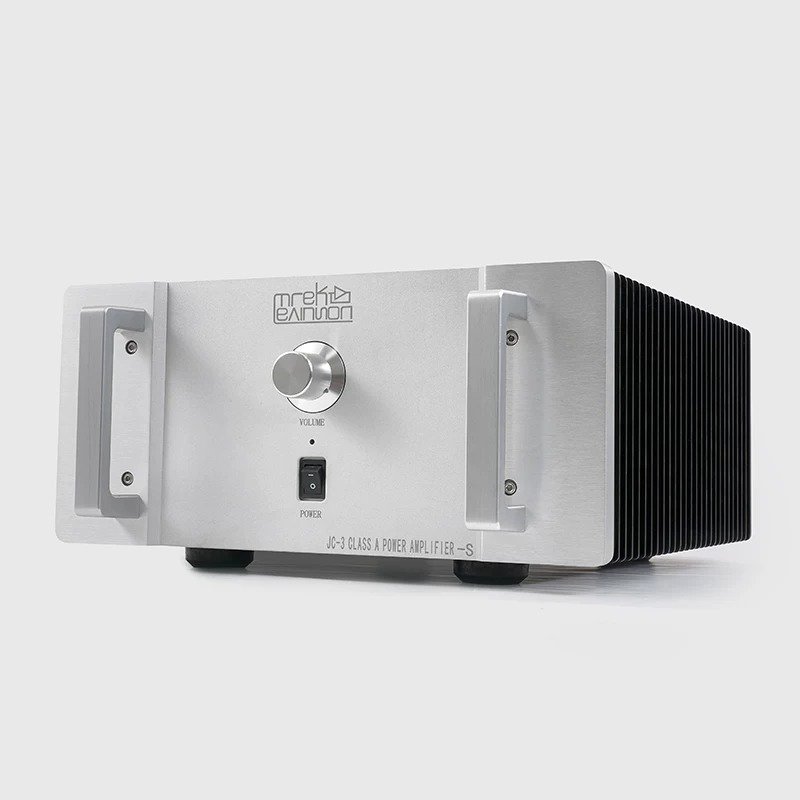

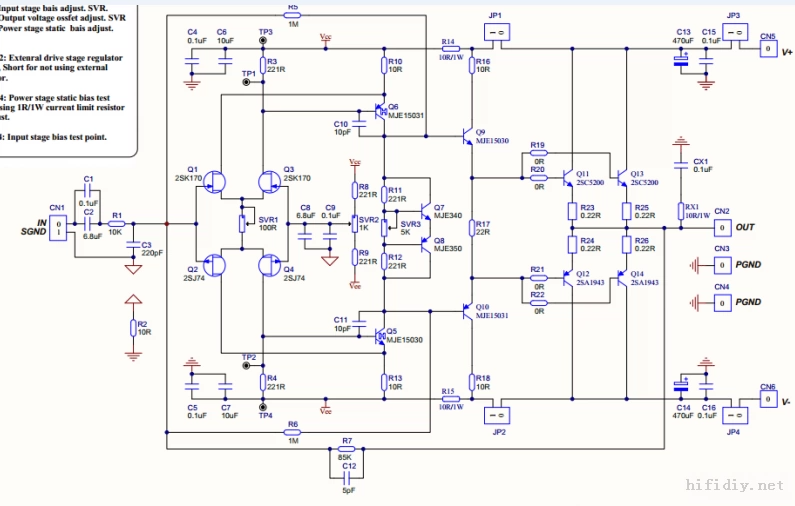

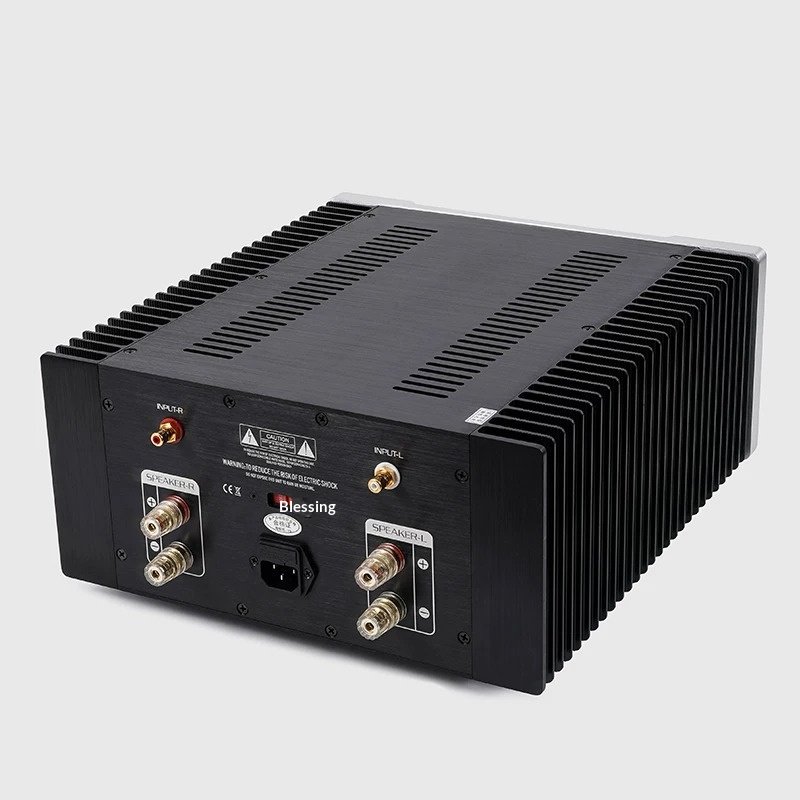

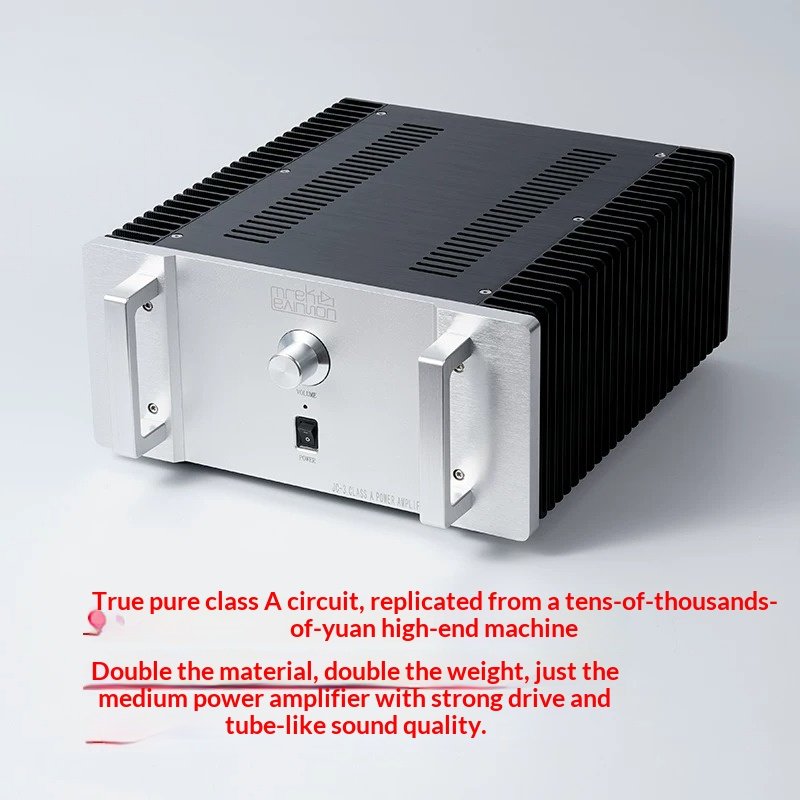

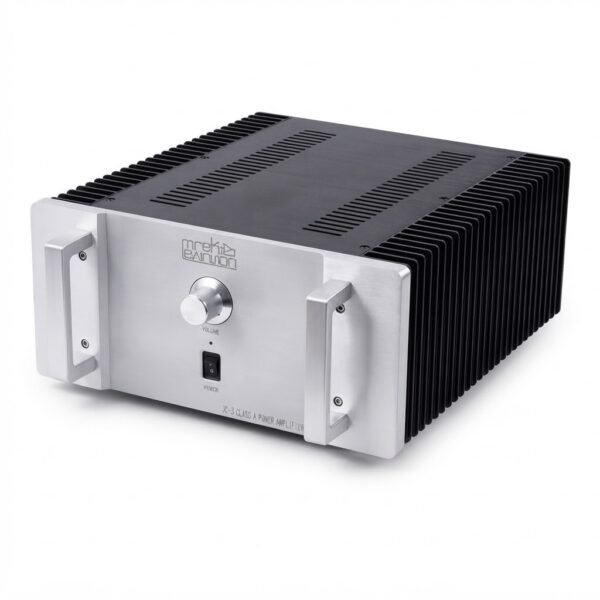

The BRZHIFI JC3 is a high-end solid-state power amplifier meticulously crafted for audiophiles seeking reference-grade sound quality. We employed the legendary Mark Levinson ML2/JC3 circuit design, proven in the history of high-end audio, and paired it with a fully symmetrical JFET input architecture using the discontinued 2SK170/2SJ74 transistors to reproduce the rich, natural, and exceptionally smooth sound renowned for classic Levinson amplifiers. Every component was carefully selected to ensure uncompromising audio performance: 6 pairs of gold-plated ON Semiconductor TO-3 packaged power transistors per channel; independent 200W 4N oxygen-free copper low-leakage toroidal transformers for each channel; and 8 ELNA FOR AUDIO LAO series 10000µF main filter capacitors, for a total capacitance of 80000µF. This sophisticated configuration achieves an ultra-low total harmonic distortion of 0.01%, a signal-to-noise ratio of 102dB, and powerful drive, working perfectly even with a 1-ohm speaker impedance, revealing every detail of your music collection.The all-aluminum alloy chassis weighs only 15.9 kg and features precision-machined heatsinks to ensure stable operation over extended periods. We’ve also integrated a comprehensive three-layer protection system, including DC detection, power-on surge delay, and over-temperature protection, as well as dual parallel sealed Omron relays to extend the lifespan of the entire audio system. Its minimalist deep silver metallic exterior perfectly complements any high-end home listening room or living room HiFi setup, adding a retro, high-end audiophile aesthetic to your space.
Output Power: 25W×2 (8 ohms, Class A only) | 35W×2 (6 ohms) | 50W×2 (4 ohms)
Total Harmonic Distortion: 0.01%
Signal-to-Noise Ratio: 102dB
Minimum Drive Impedance: 1 ohm

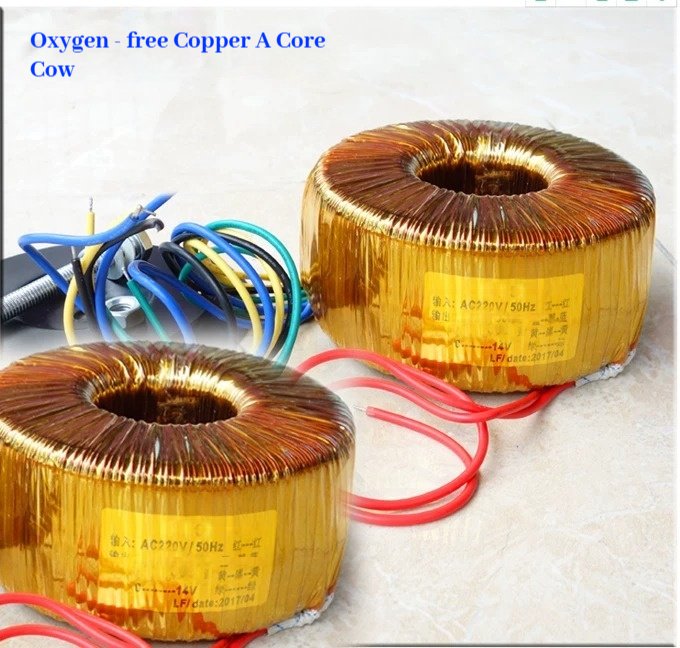

Power Supply: Dual 200W 4N OFC Toroidal Transformers

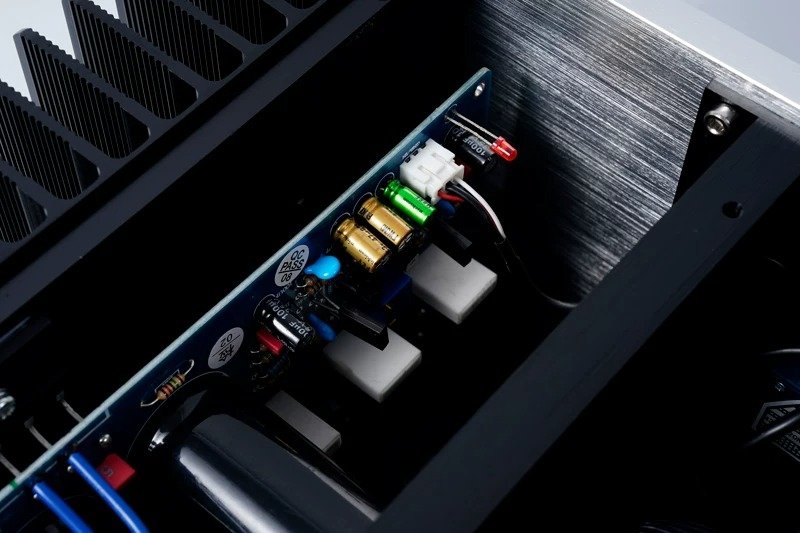

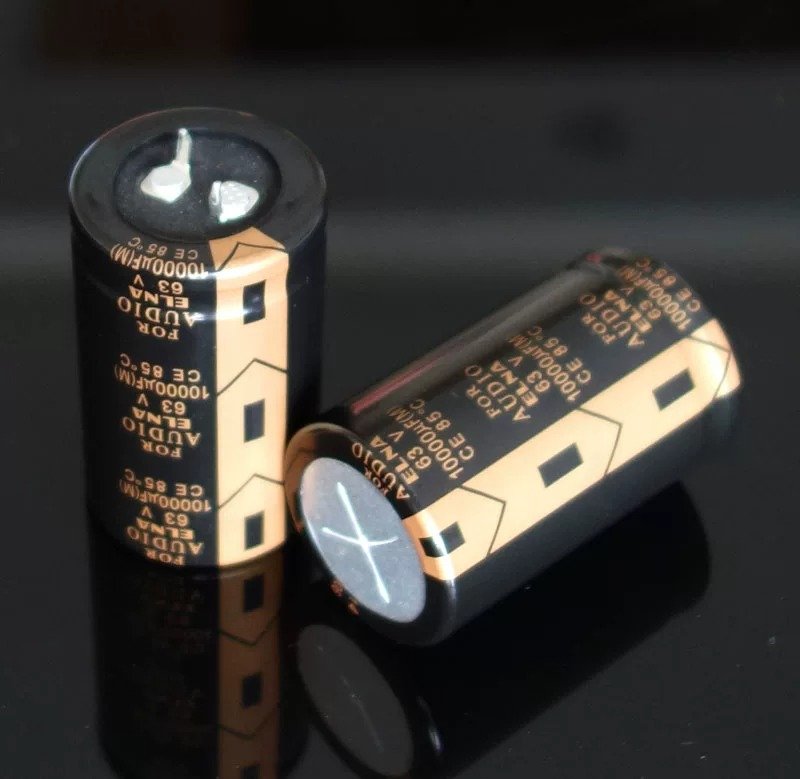

Main Filter Capacitors: 8 x ELNA FOR AUDIO 10000µF, total 80000µF

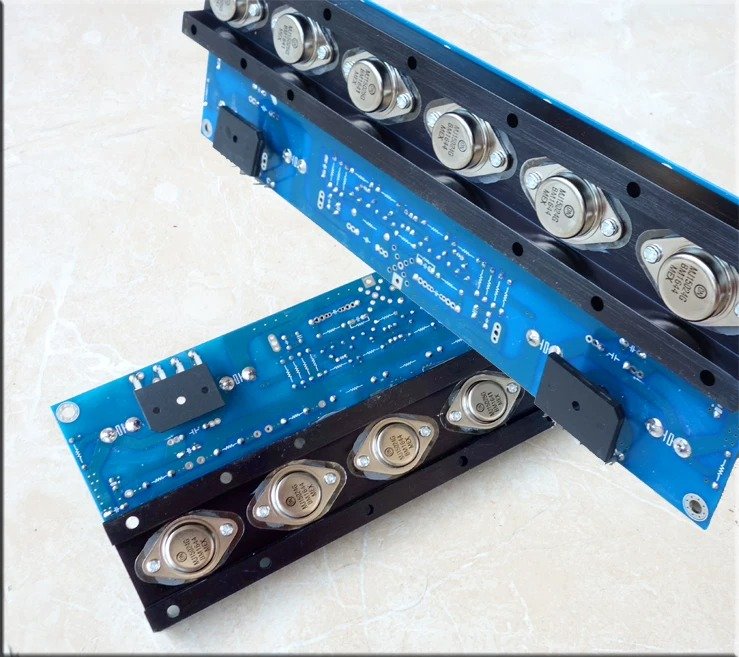

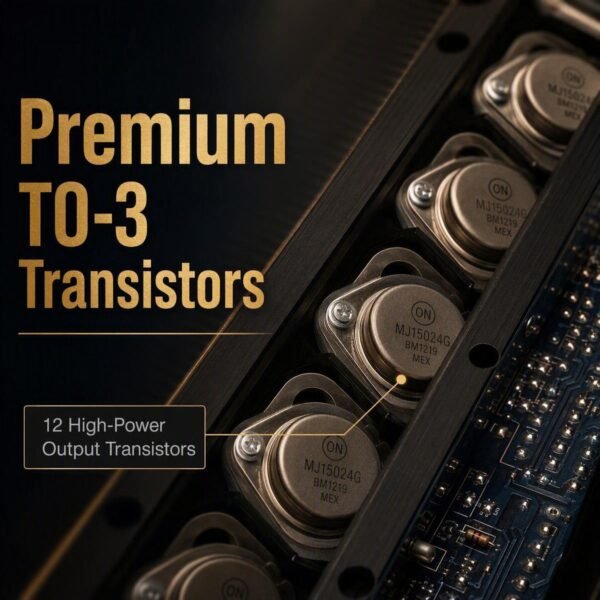

Output Transistors: 12 ON Semiconductor TO-3 Gold-Plated Power Transistors

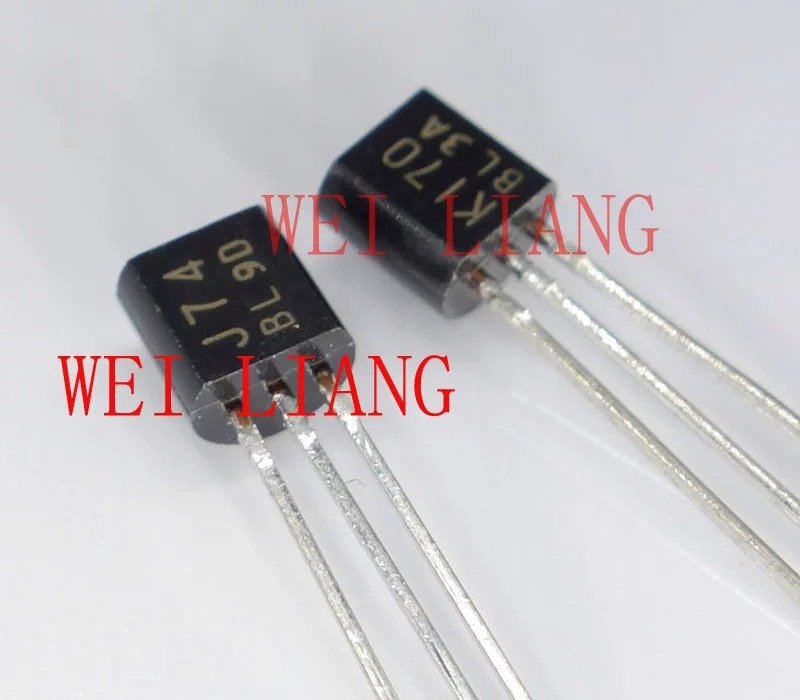

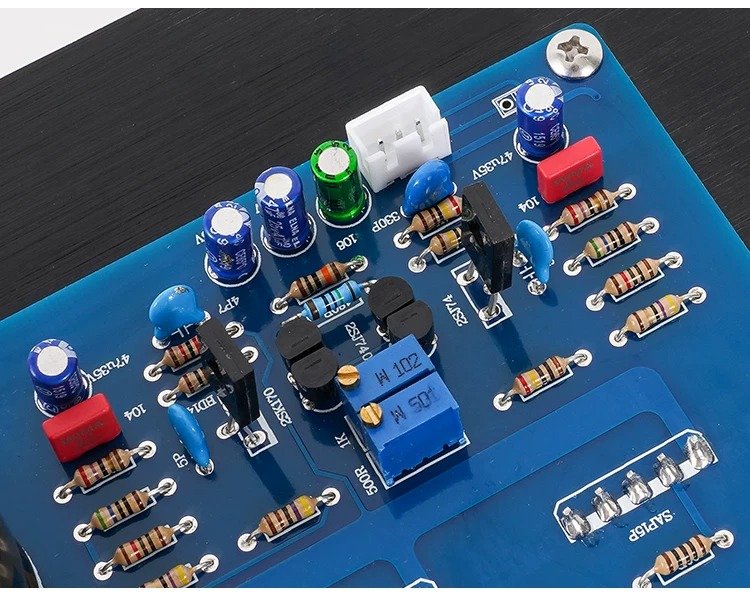

Input Transistors: Discontinued 2SK170 / 2SJ74 JFETs

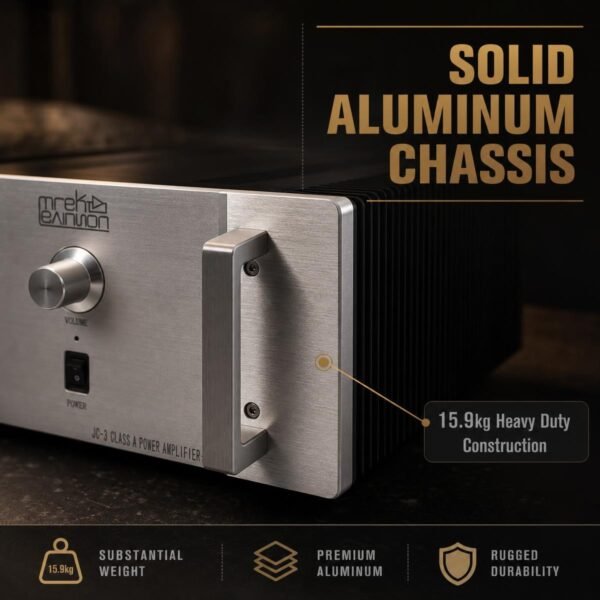

Net Weight: 15.9kg

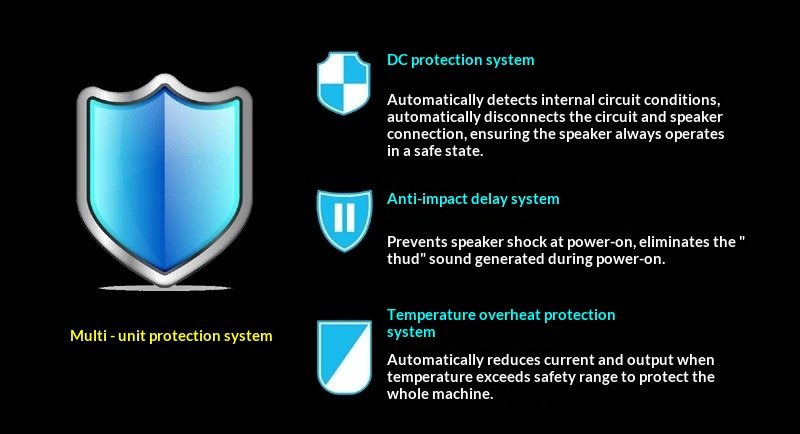

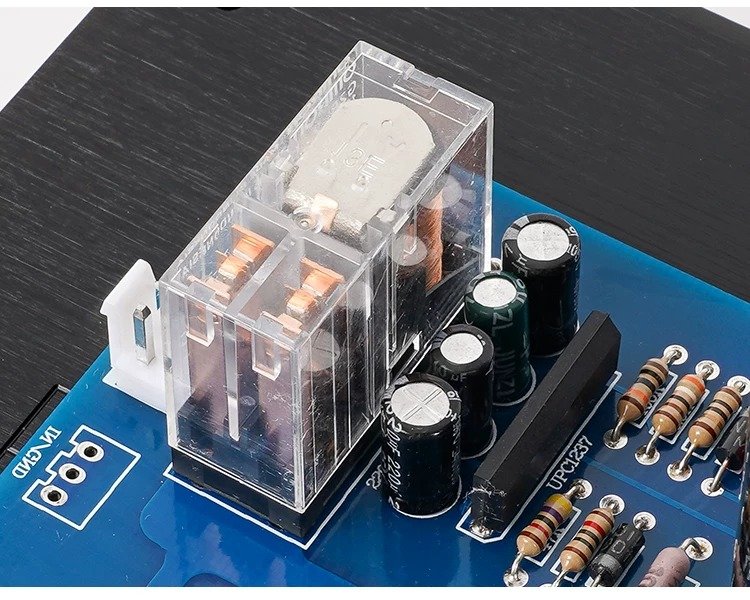

Protection Functions: DC cut-off, power-on delay, overheat protection
