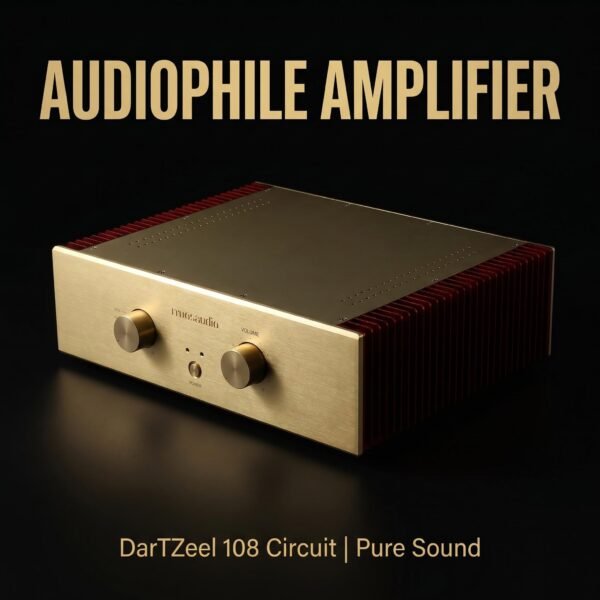

Adopts iconic Full Moon Curved Blade DarTZeel no large loop feedback amplifier circuit, delivers warm, soft, natural and relaxing sound for long-hour immersive music listening, zero harshness causes no listening fatigue even after extended play
Equipped with 3 pairs of precisely matched ON MJL3281/1302 power transistors per channel, paired with 500W high-grade Nippon Steel transformer, outputs 120W*2 at 8Ω and 240W*2 at 4Ω, high damping factor provides full, tight control of any connected speakers

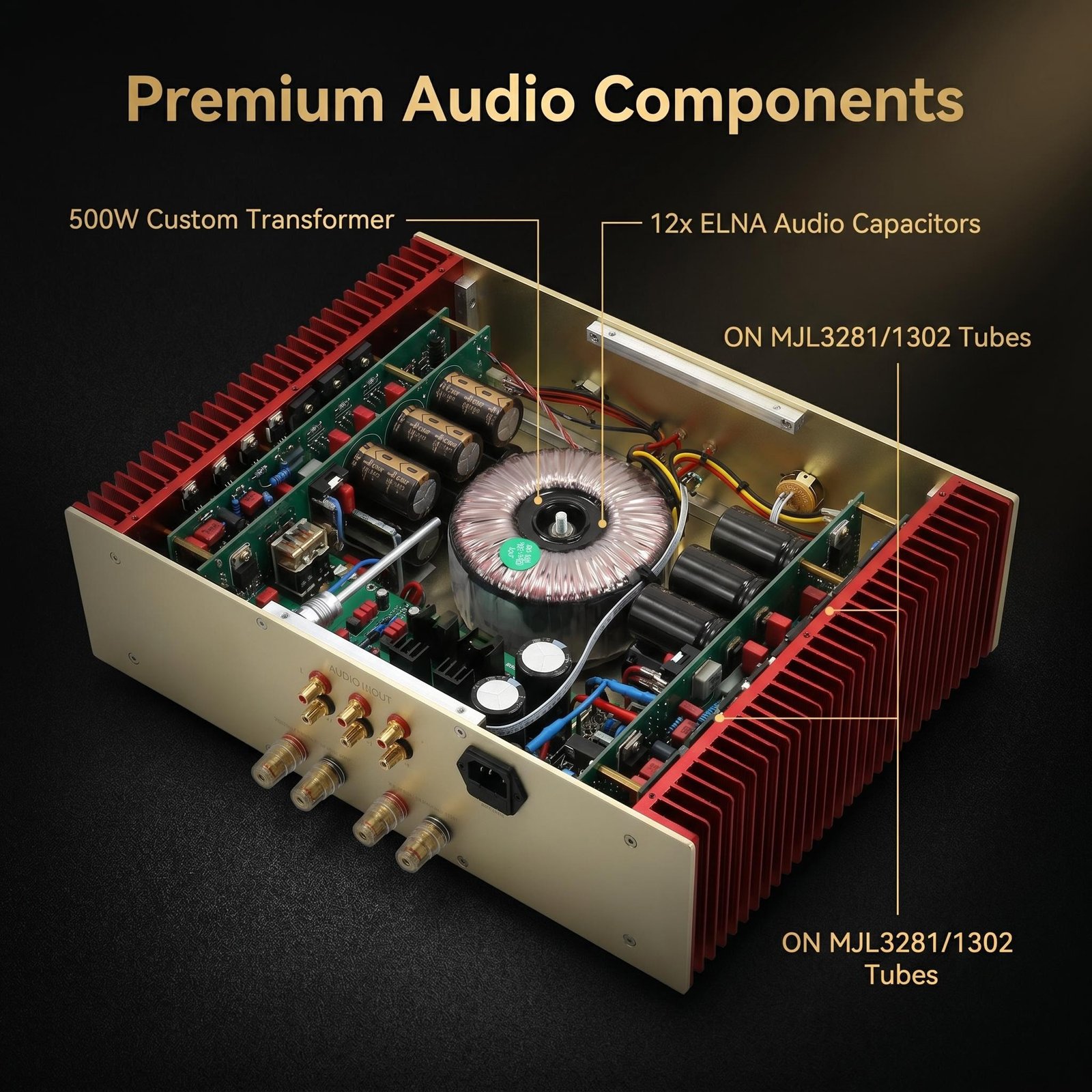

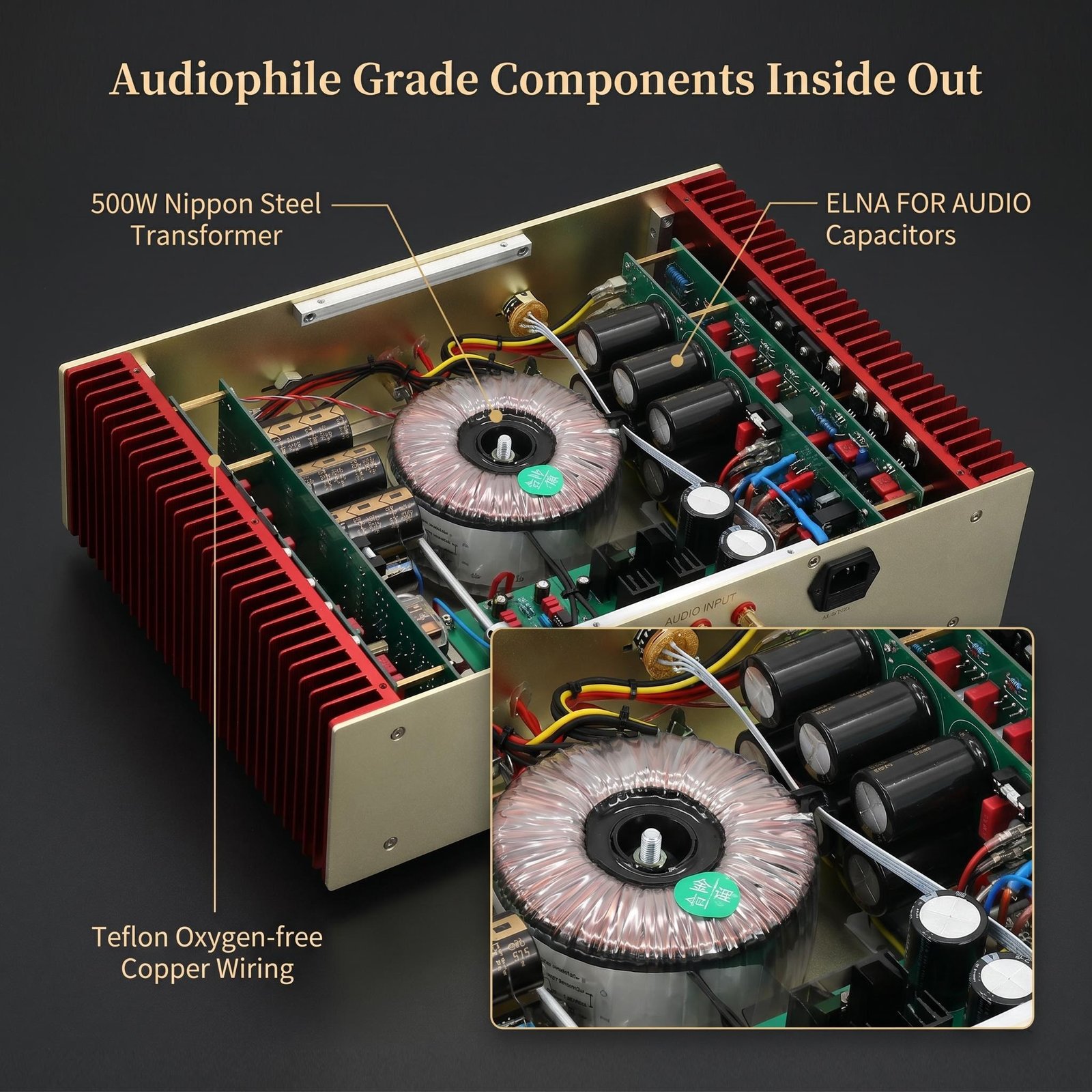

Built with top-tier audiophile grade components, including 12pcs ELNA FOR AUDIO 10000uF large capacitors, warm-sounding OPA828 single op-amp for preamplification, CMC pure copper RCA terminals, and Taiwan Teflon oxygen-free copper internal wiring for pure signal transmission
Features MBL style preamplifier circuit with independent parallel regulated power supply, 3 separate RCA audio inputs, dual mono block rear stage design with fully separated left and right channel power supply to achieve ultra-high channel separation

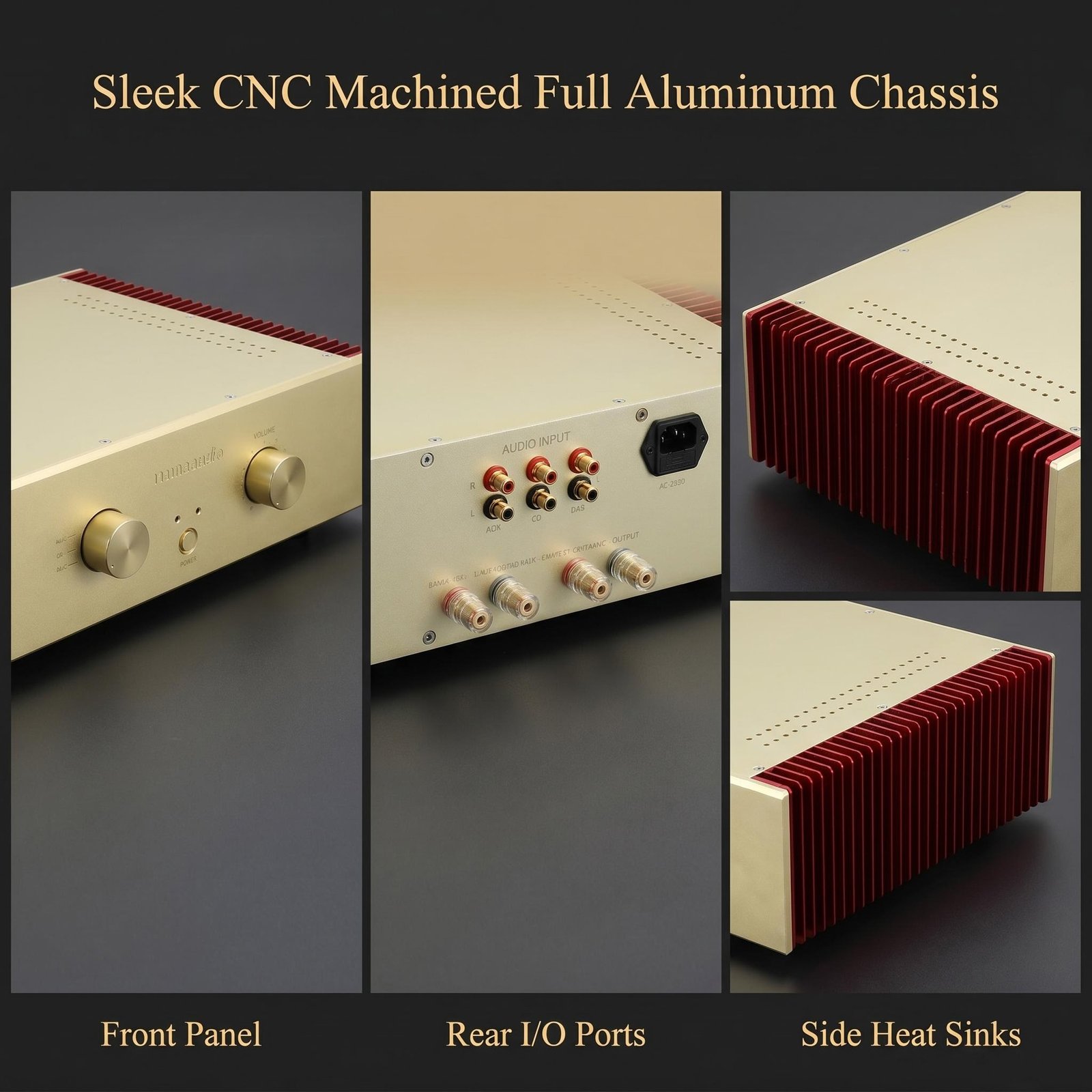

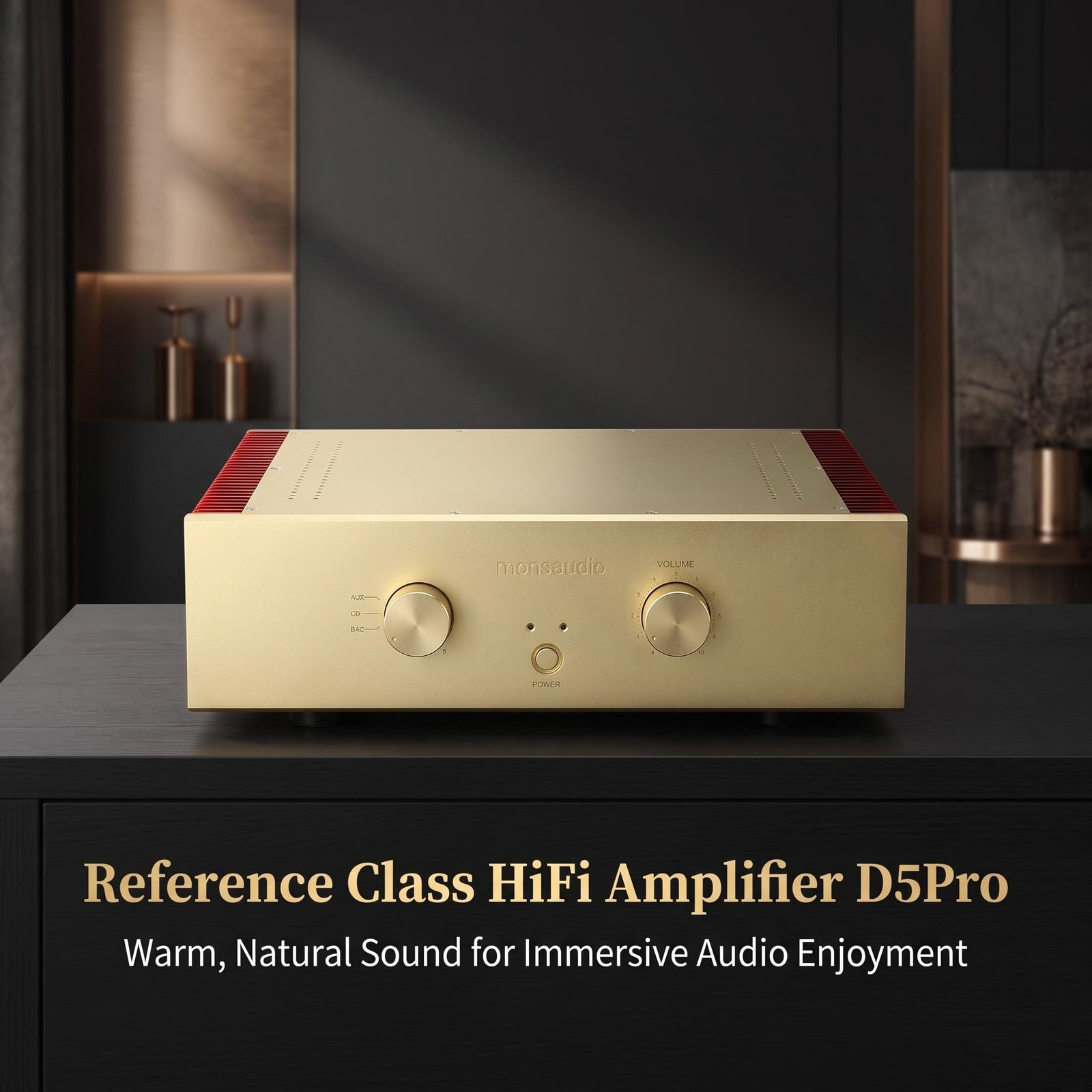

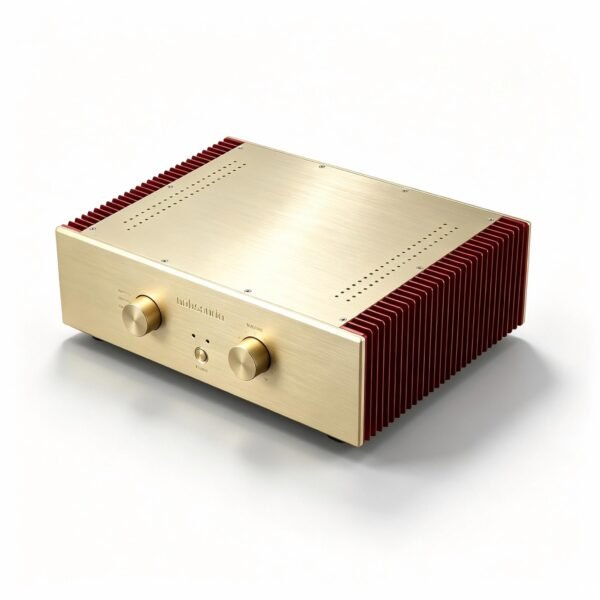

Premium CNC machined full aluminum chassis with elegant champagne gold finish and red heatsink, complete soft start circuit and full protection for connected speakers, measured 108.5dB SNR and ultra low 0.0033% THD for transparent, detailed hi-fi performance

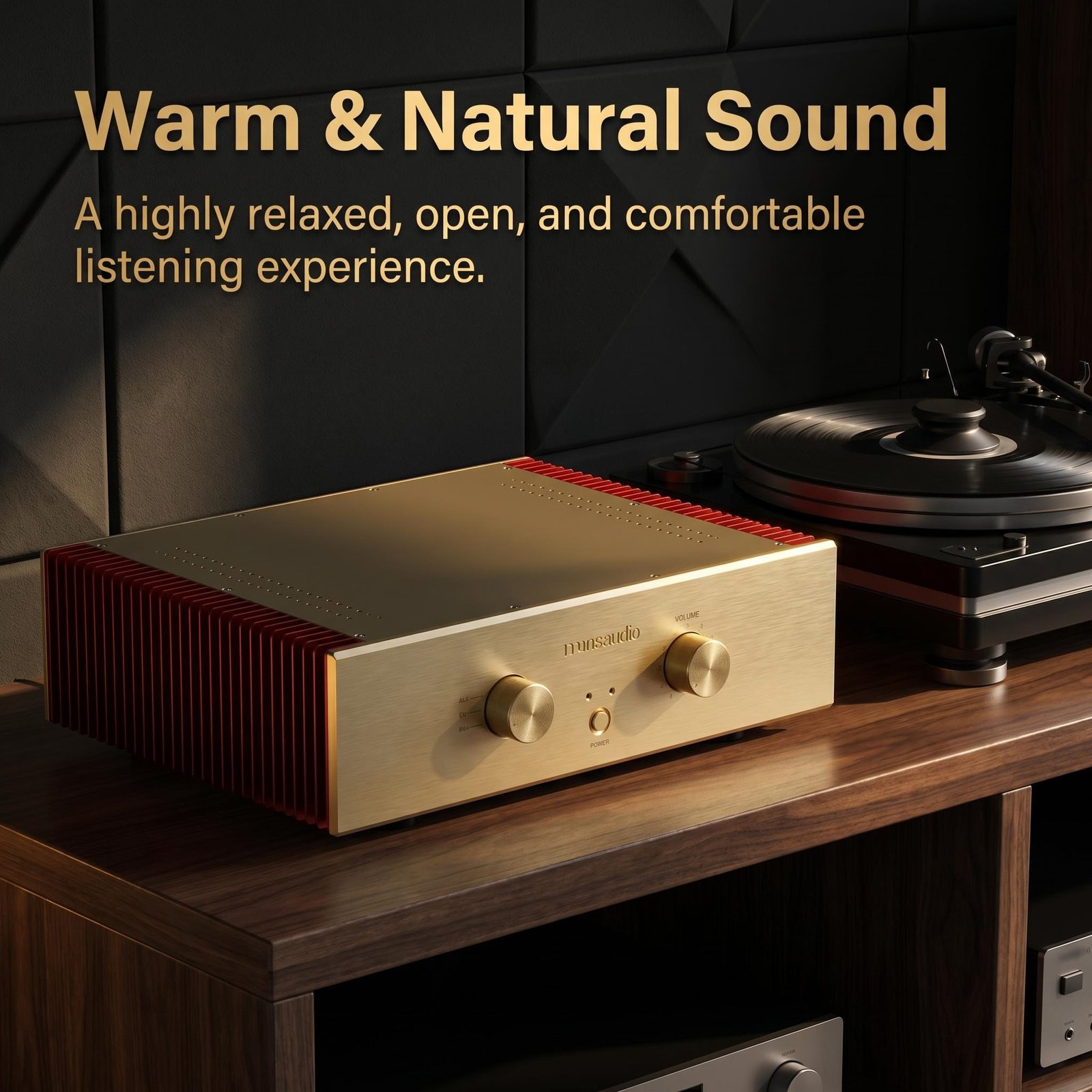

For audiophiles who are tired of harsh, clinical-sounding amplifiers that force you to stop listening after 30 minutes, our D5Pro integrated amplifier is perfectly crafted for you to sit back, relax, and enjoy your full music collection for hours on end. The signature no large loop feedback circuit delivers expansive, open, natural sound with rich low end that has both satisfying fullness and deep extension, every note comes through with zero harshness and full musicality. We strictly select every internal component to keep the signal path as pure as possible, the dual mono separated power supply architecture eliminates crosstalk between left and right channels, so you can hear clear, layered soundstage positioning even with entry level hi-fi speakers. The classic European Hi-Fi style solid metal build fits perfectly into your premium home audio setup, adding a touch of elegant, retro luxury to your living room listening space.

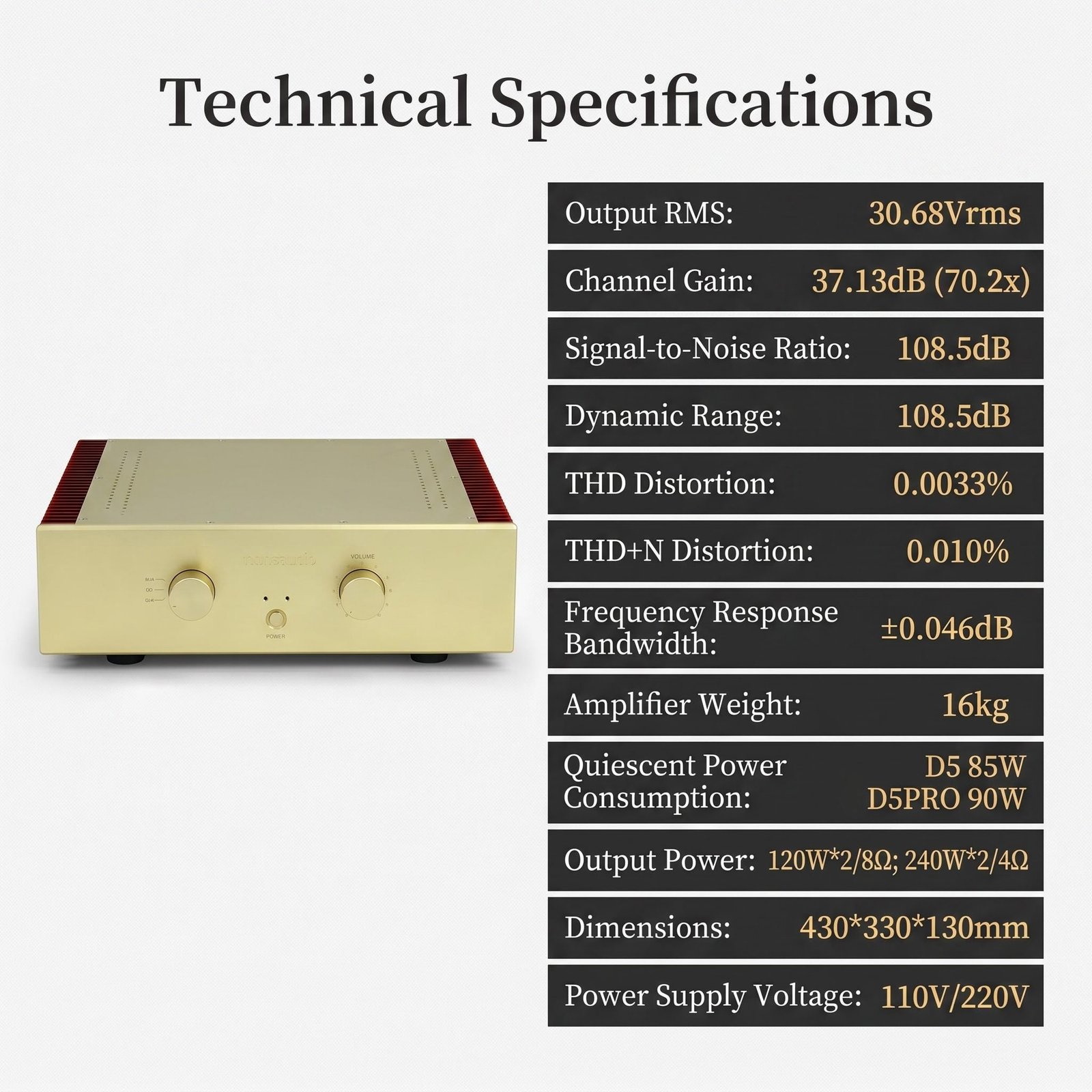

Output Power: 120W*2 @ 8Ω, 240W*2 @4Ω
Output RMS Voltage: 30.68Vrms
Channel Gain: 37.13dB (70.2 Times)
SNR: 108.5dB
Dynamic Range: 108.5dB
THD: 0.0033%
THD+N: 0.010%
Frequency Response: ±0.046dB
Power Transistor: 3 pairs of ON MJL3281/1302 per channel
Transformer: 500W high grade New Japan Steel transformer
Capacitor: 12pcs 10000uF ELNA FOR AUDIO audiophile capacitor
Preamp Op-amp: OPA828 warm sound single op-amp
Inputs: 3 x RCA

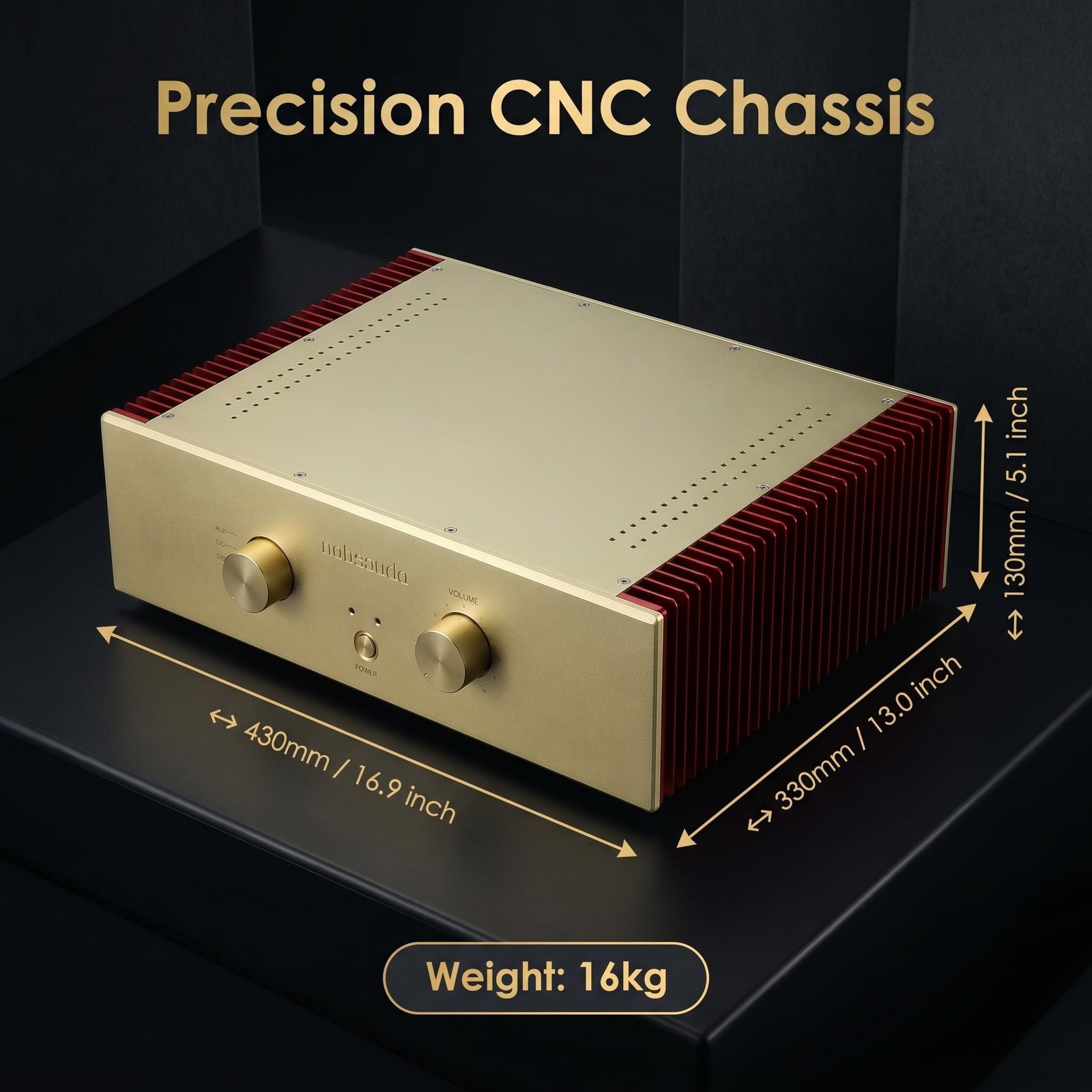

Dimension: 430*330*130mm
Net Weight: 16kg
Static Power Consumption: 90W
Weight
19 kg
Dimensions
57 × 48 × 24 cm
Version

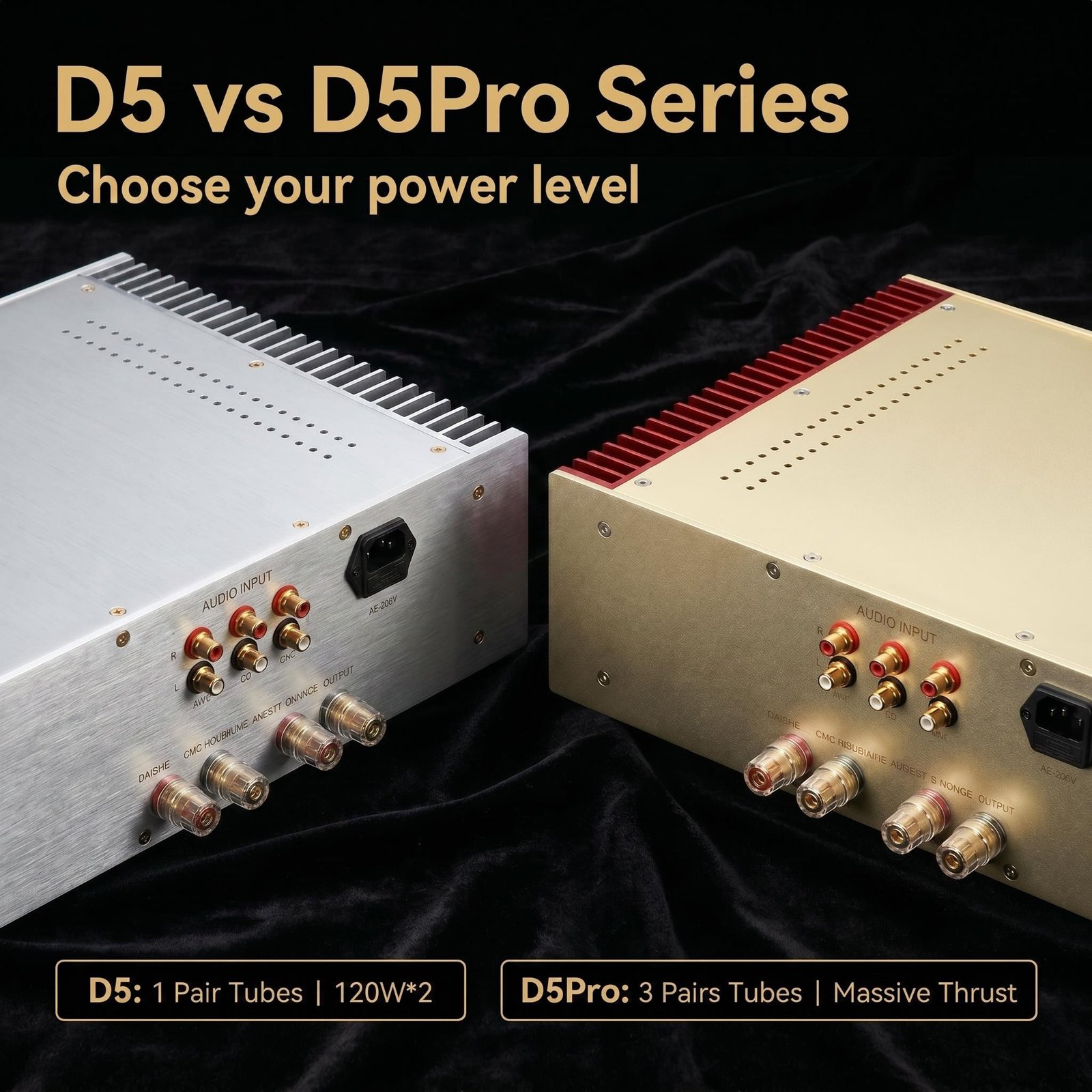

D5, D5Pro

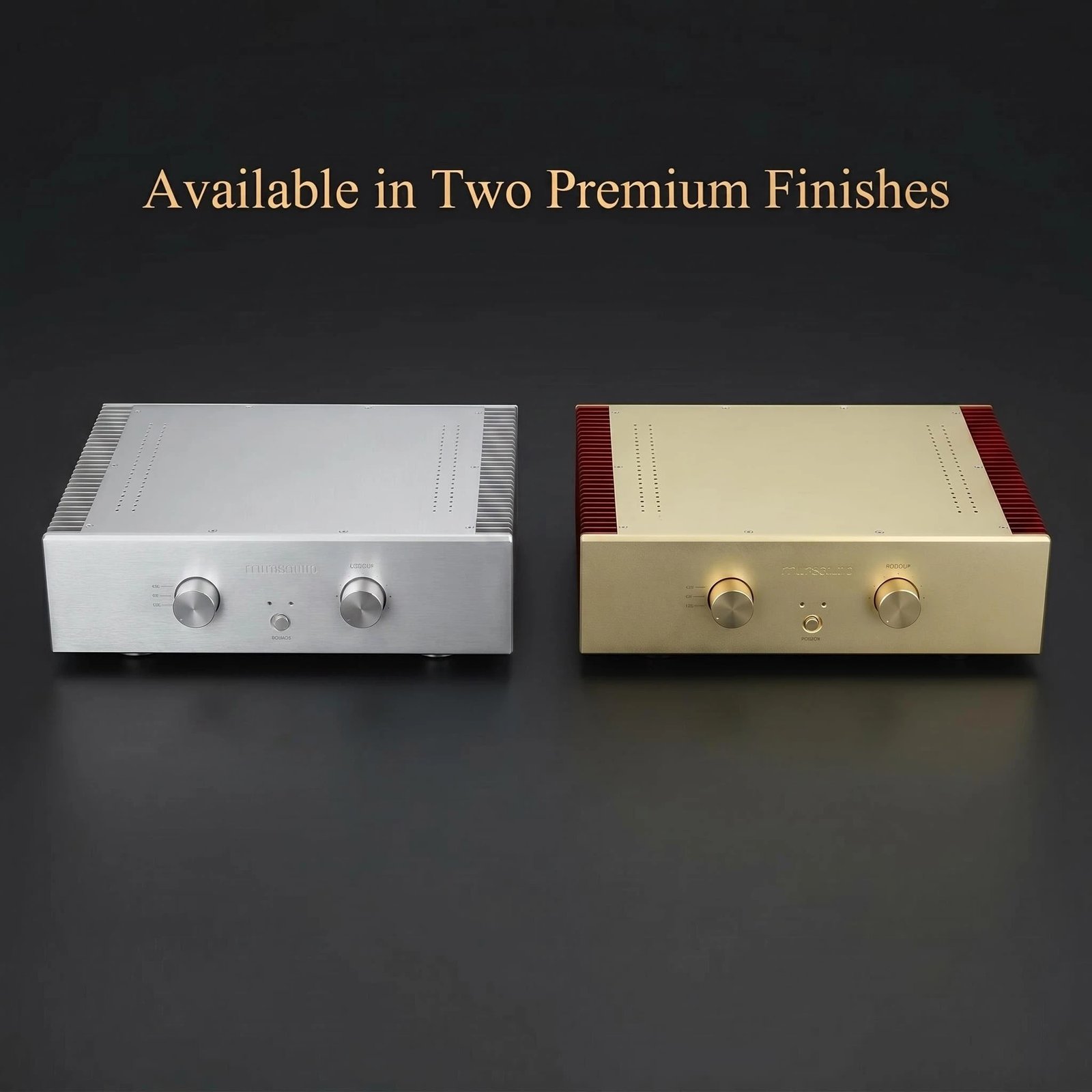

color
Silver, Gold
Voltage
110V, 220V
