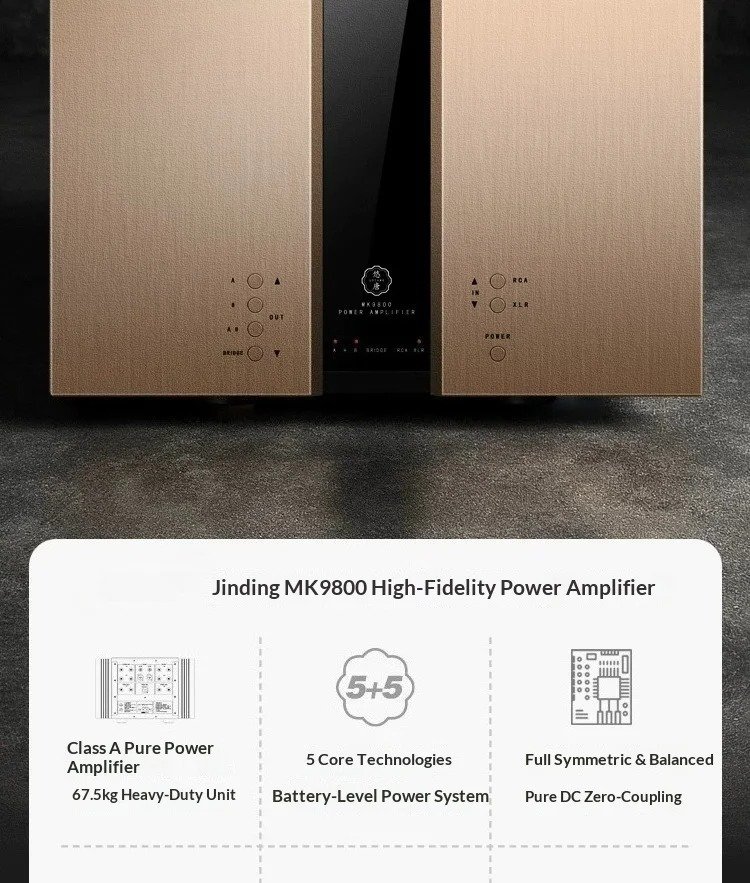

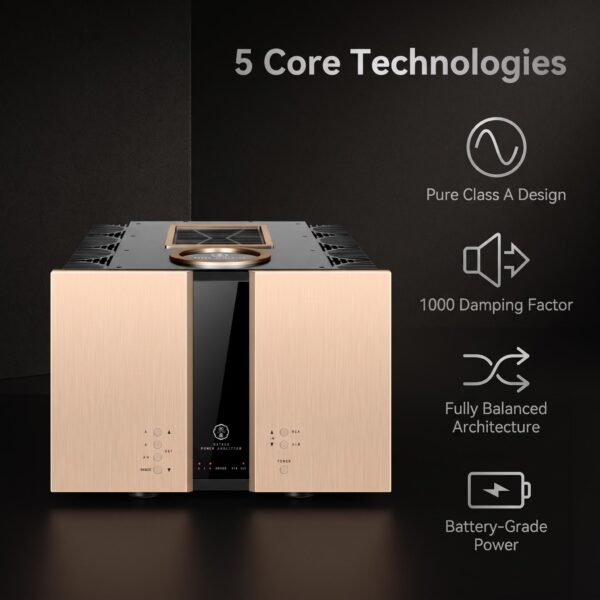

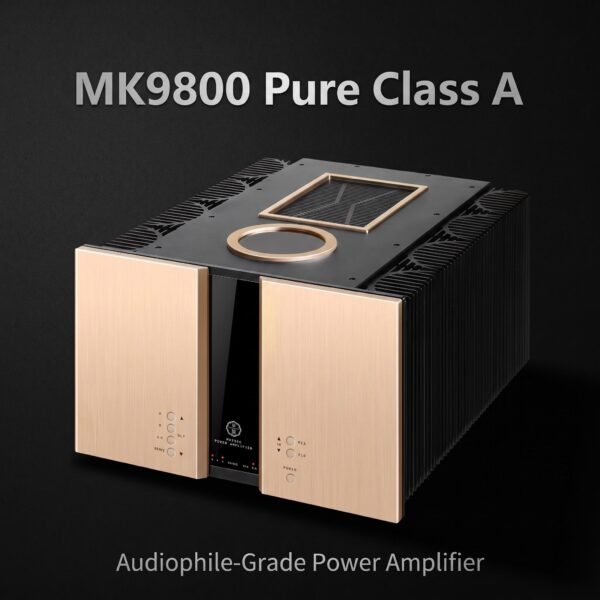

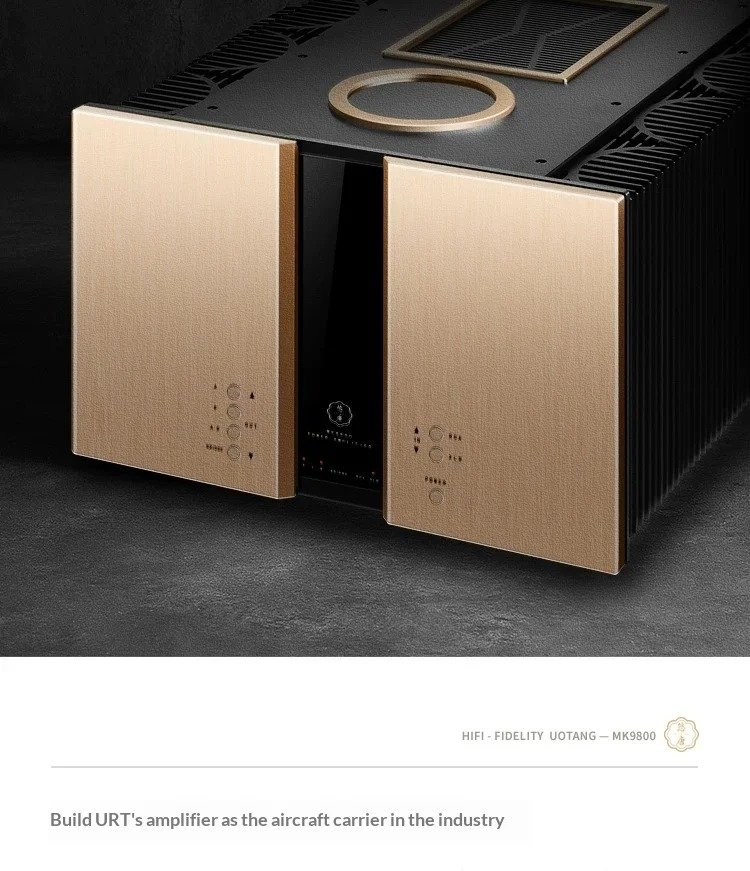

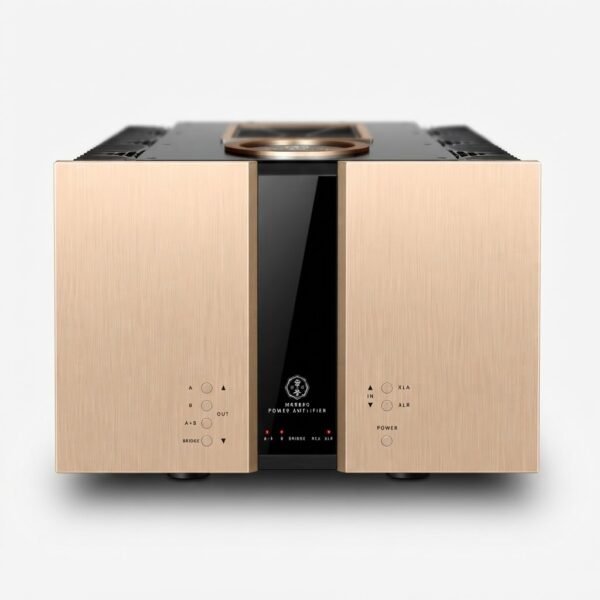

Designed specifically for high-end audiophiles, the MK9800 pure Class A power amplifier features a fully balanced, zero-coupled DC circuit, 1200W + 1200W output, 1000 damping factor, and <0.005% THD, delivering ultra-neutral, detailed sound for your home audio or professional recording studio setup.
A true pure Class A 148-pound heavy-duty full-power amplifier with zero harsh crossover distortion, delivering a warm and natural audio performance.

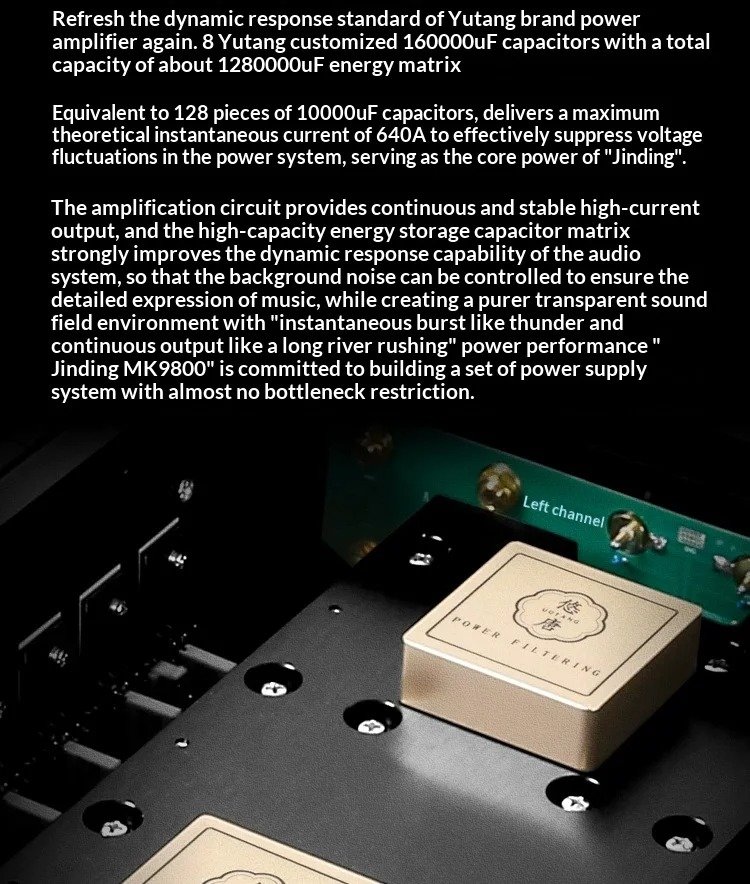

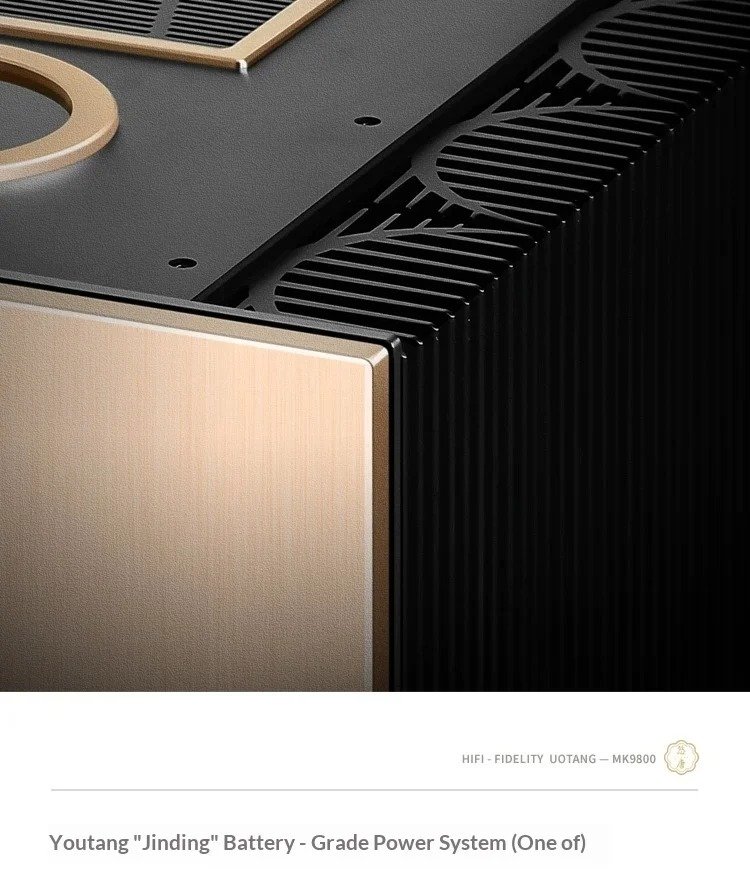

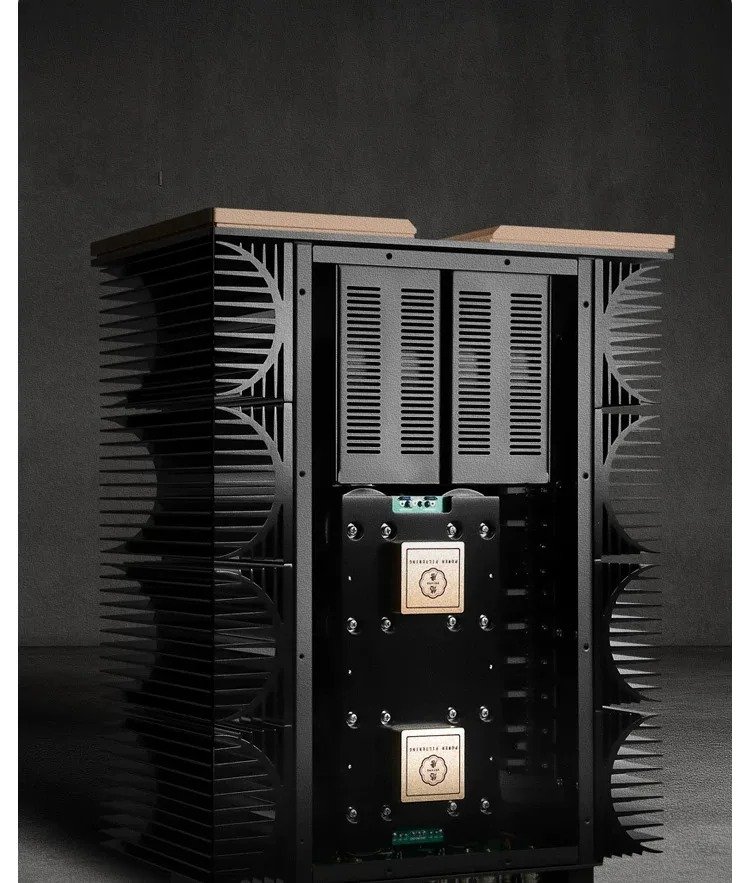

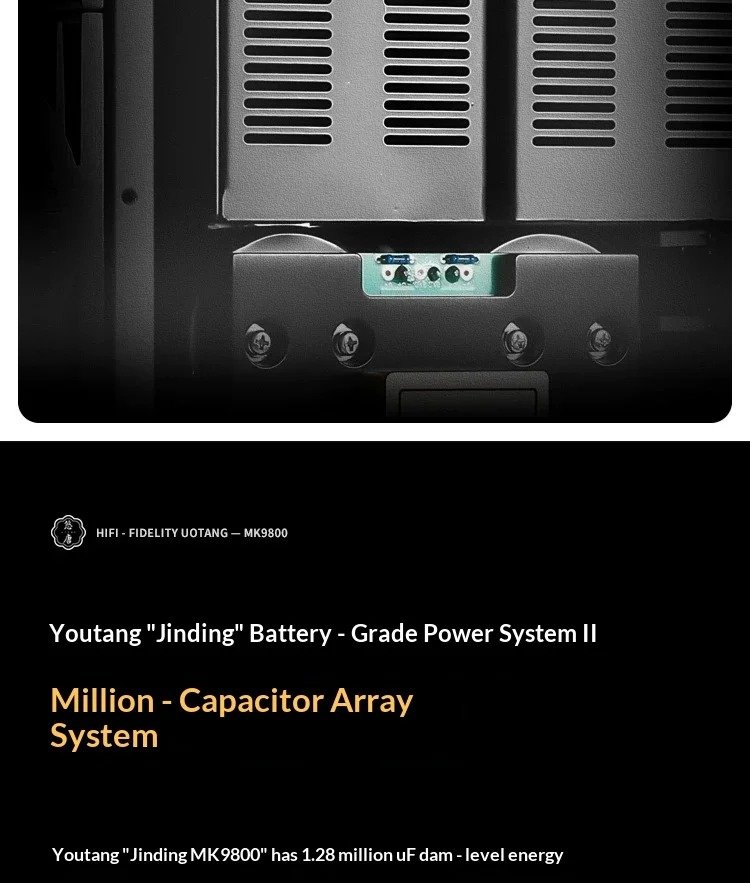

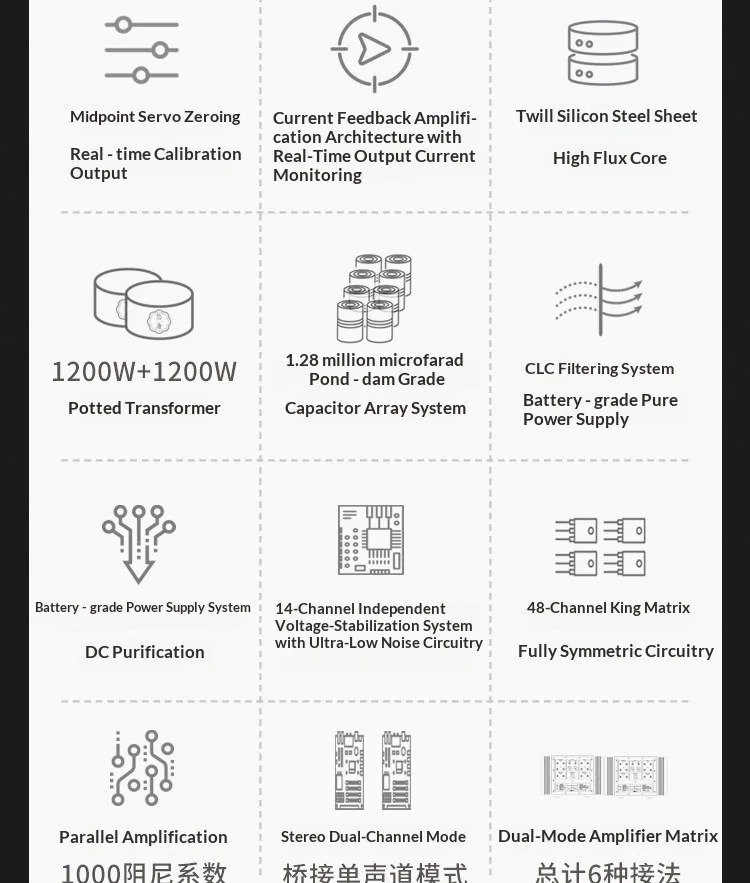

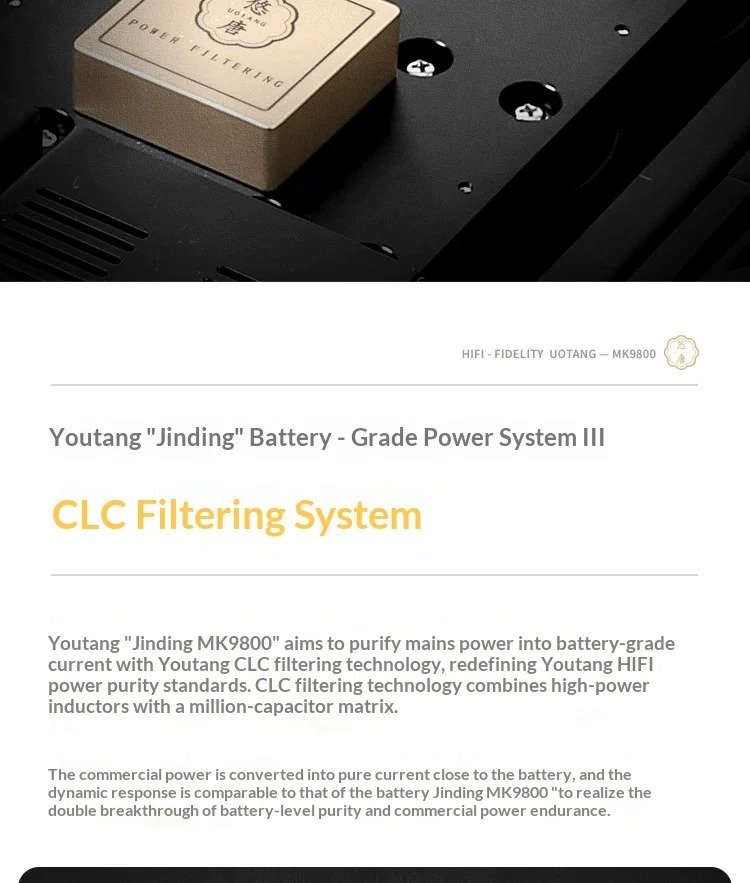

Utilizing a 5-cell battery-grade power system, it features a built-in 1200W+1200W packaged transformer, a 1.28MuF high-capacity capacitor bank, and CLC filtering, achieving ultra-clean DC power supply performance close to battery performance.

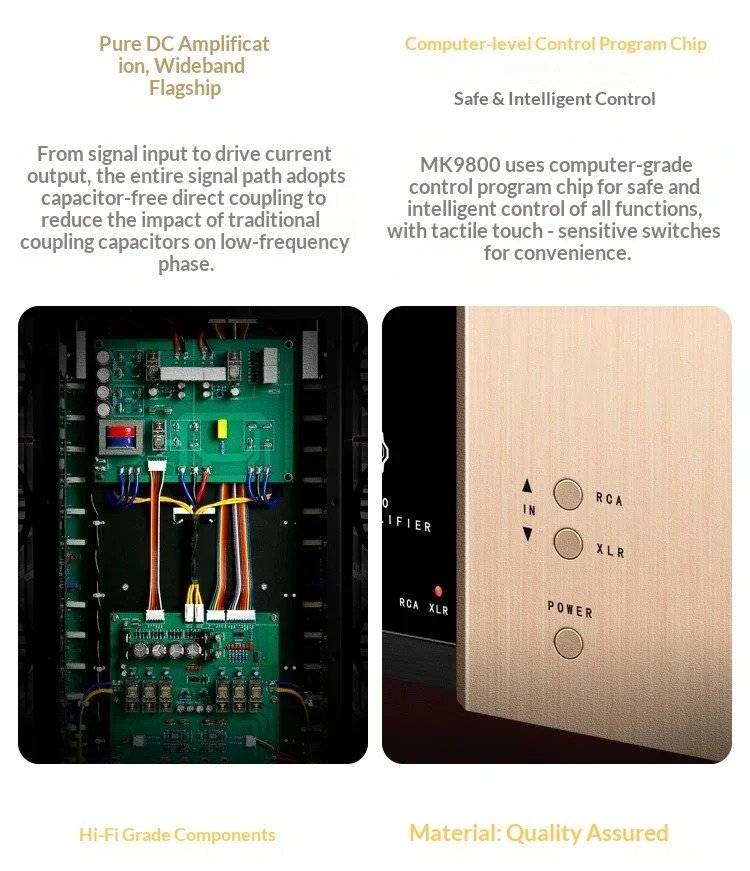

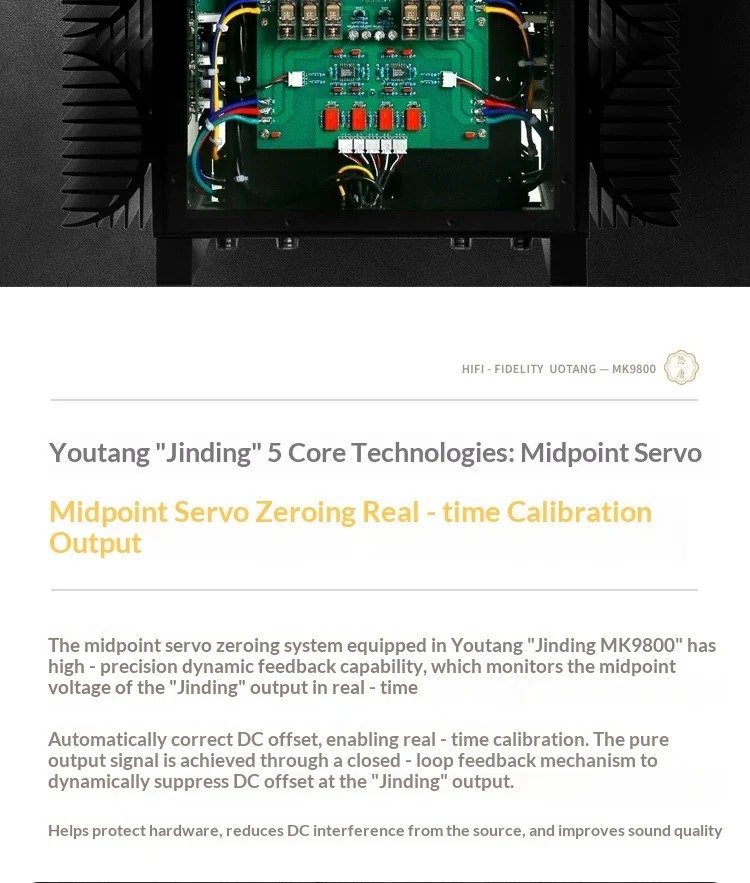

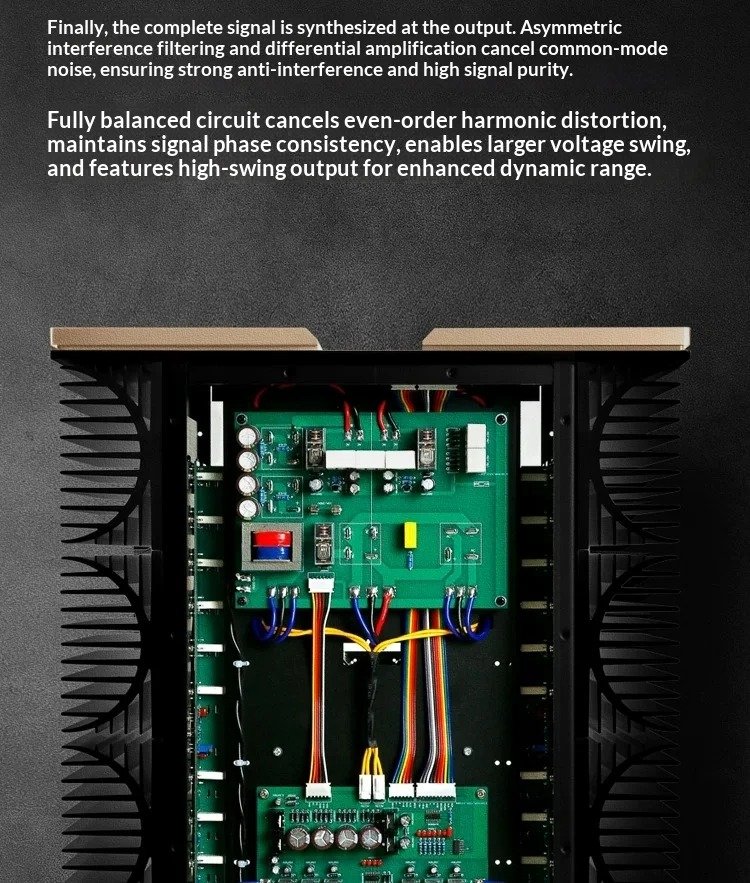

A fully symmetrical, fully balanced, pure DC zero-coupling architecture with real-time midpoint servo calibration ensures output accuracy and eliminates signal loss.

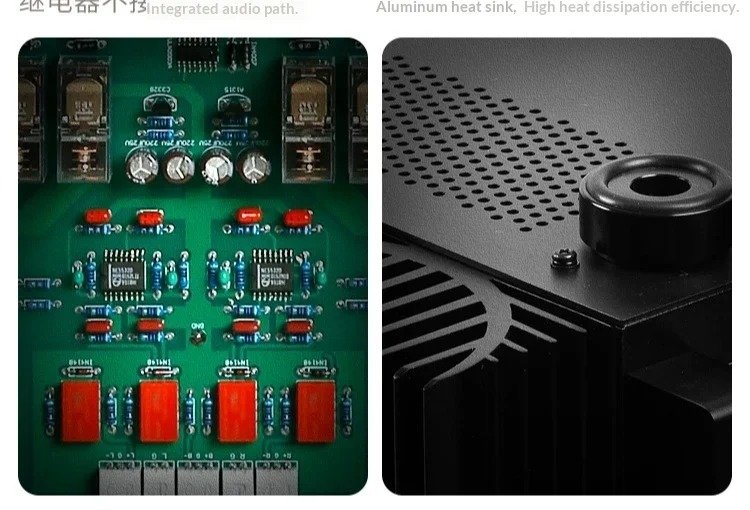

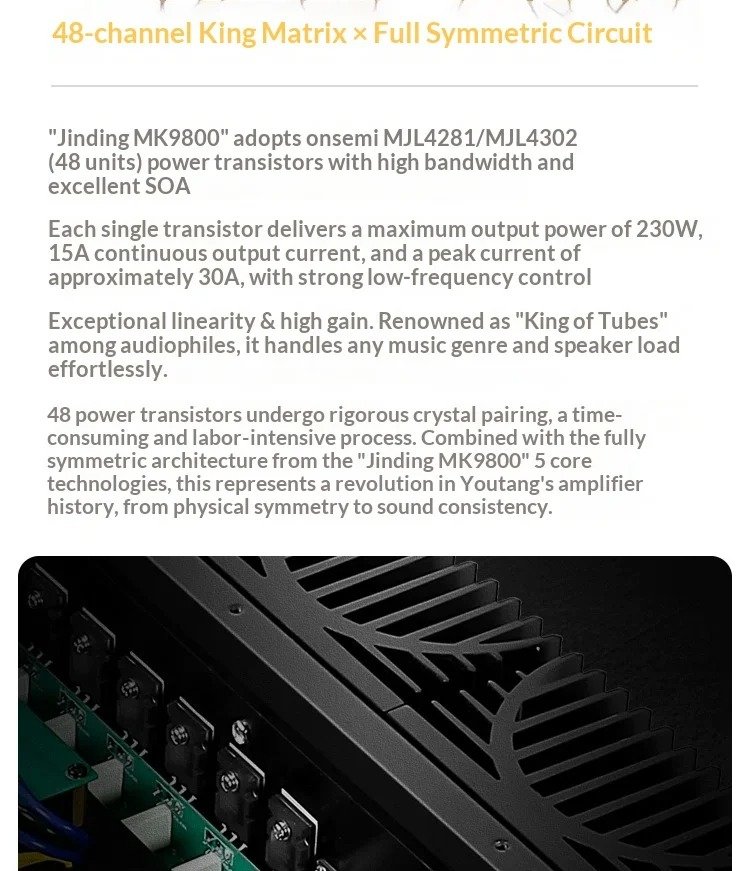

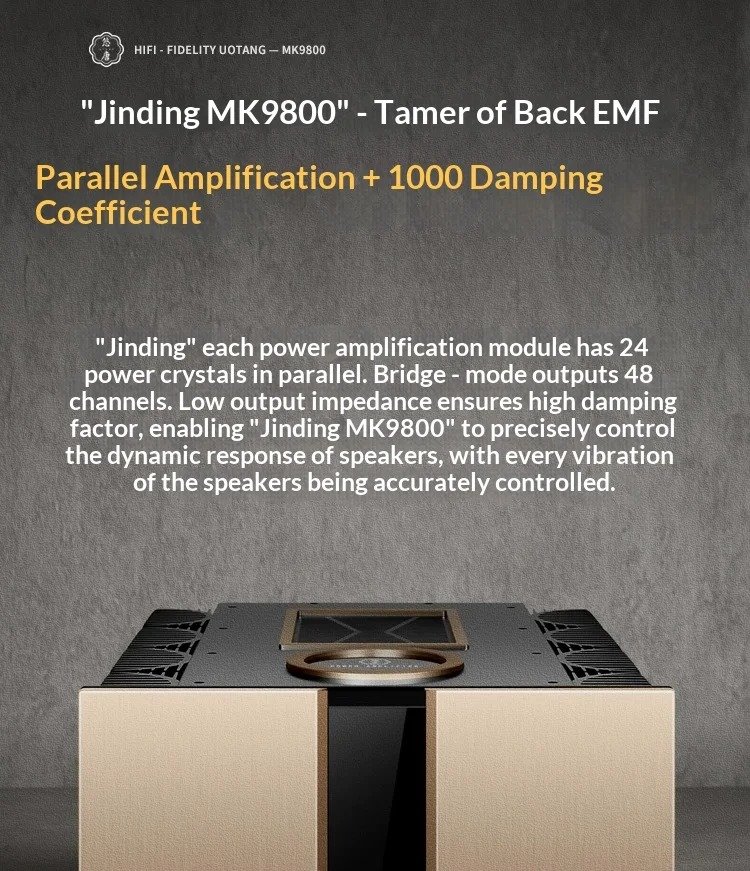

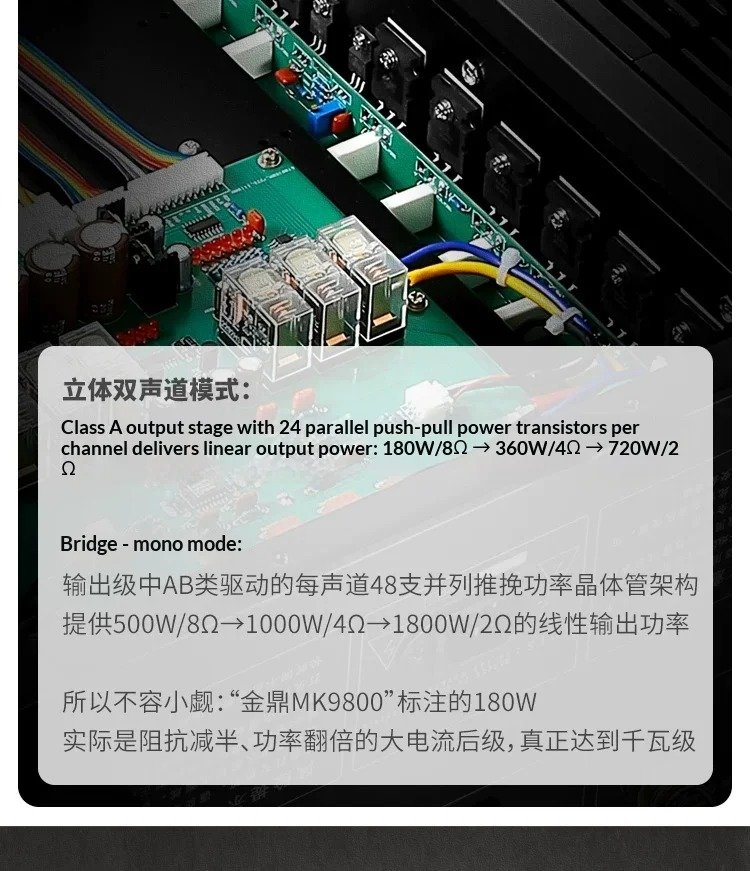

A current feedback amplification architecture monitors the output current in real time, paired with a 48-tube ON Semiconductor power transistor matrix, achieving stable and continuous power output. A 1000 ultra-high damping factor provides precise control over the speakers, eliminating muddy low frequencies and creating an immersive sound field.

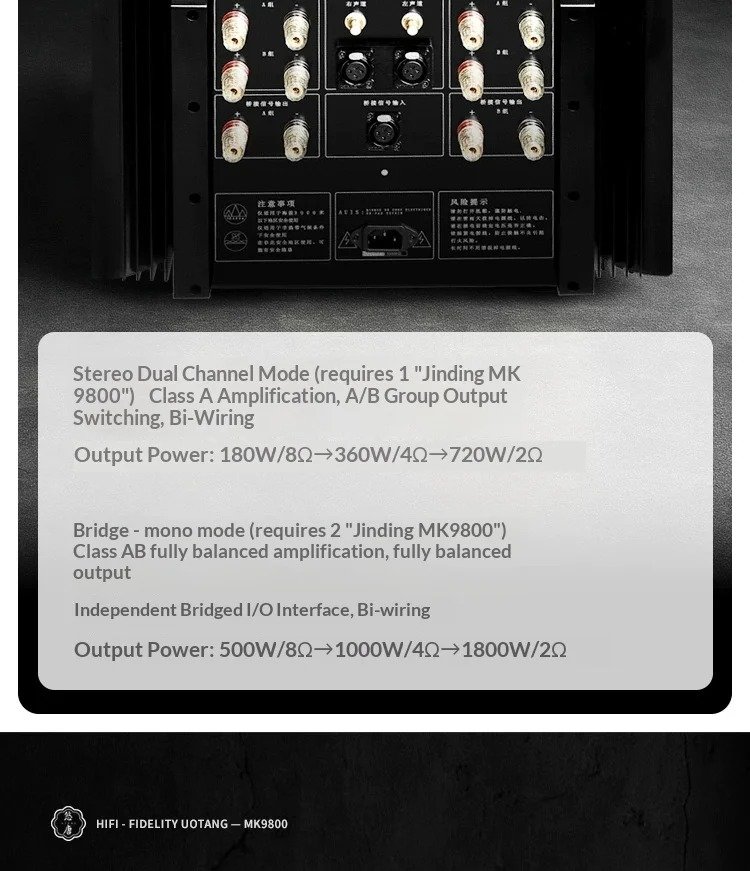

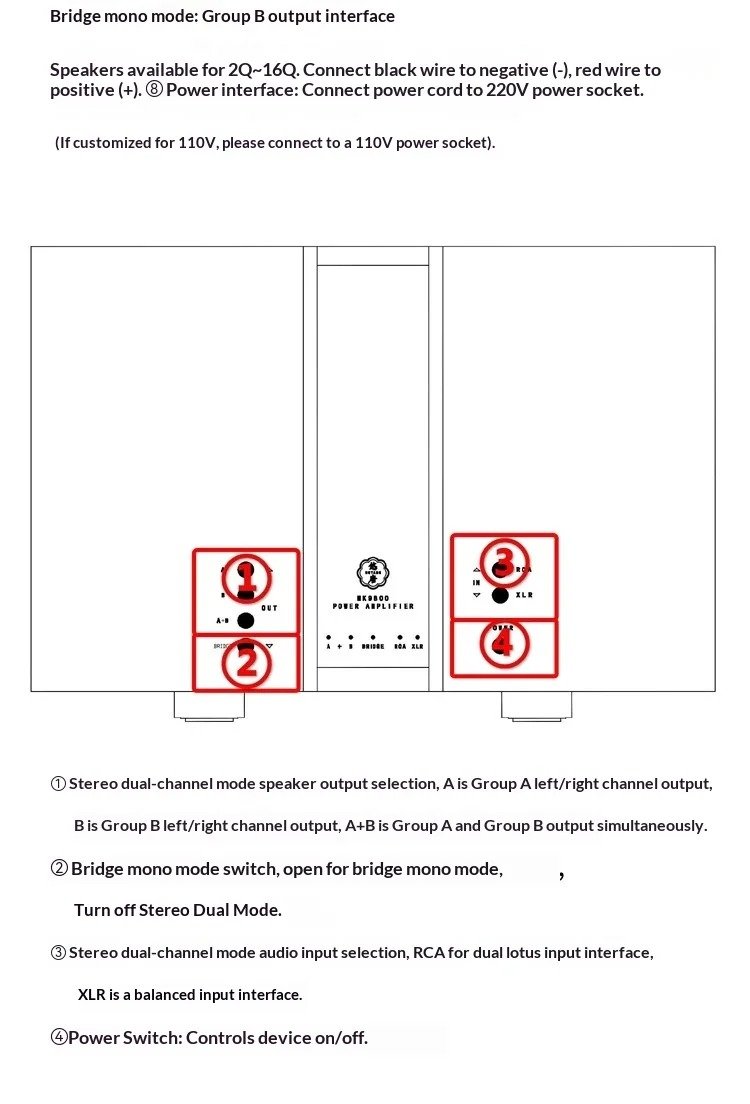

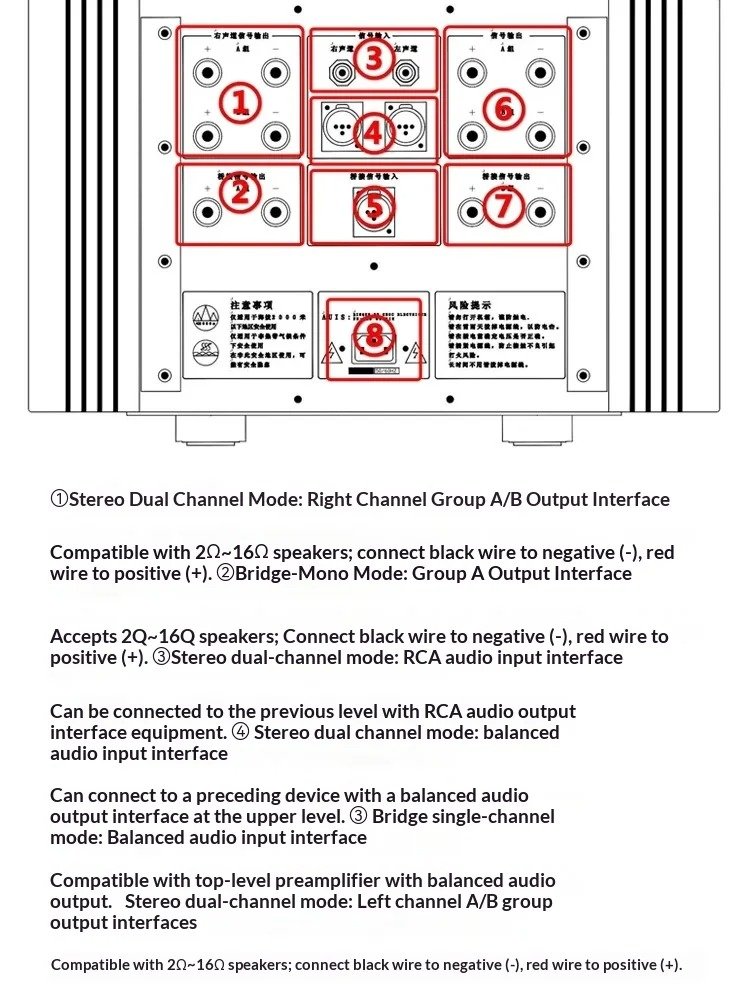

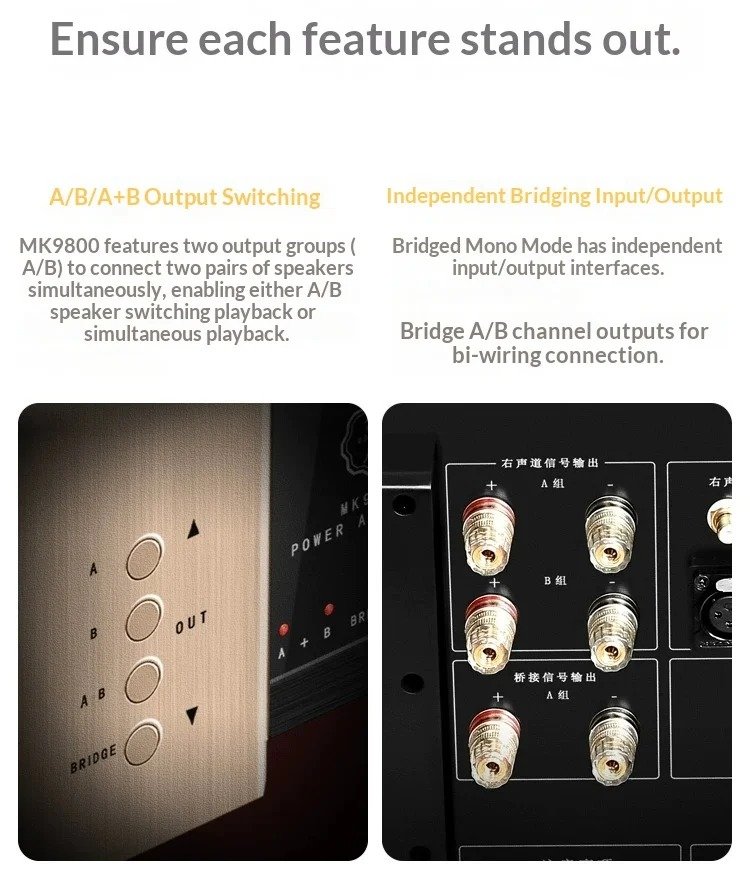

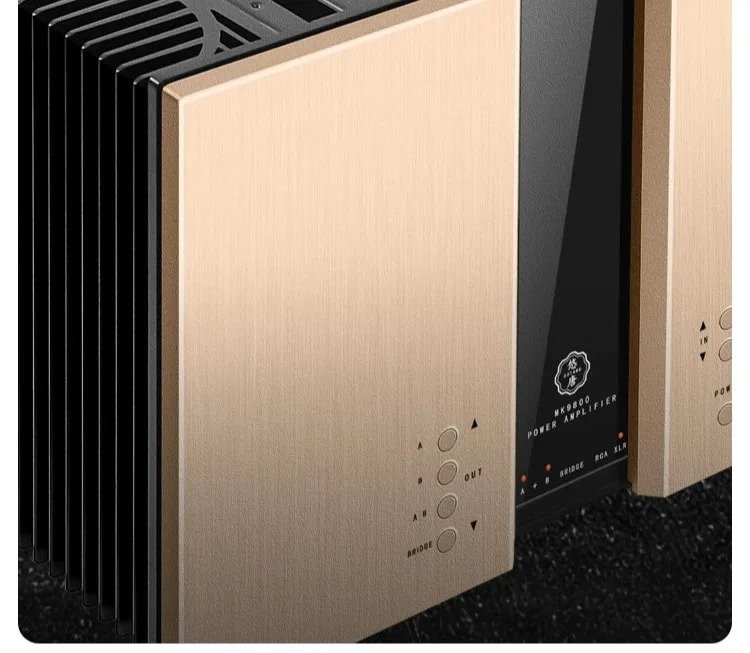

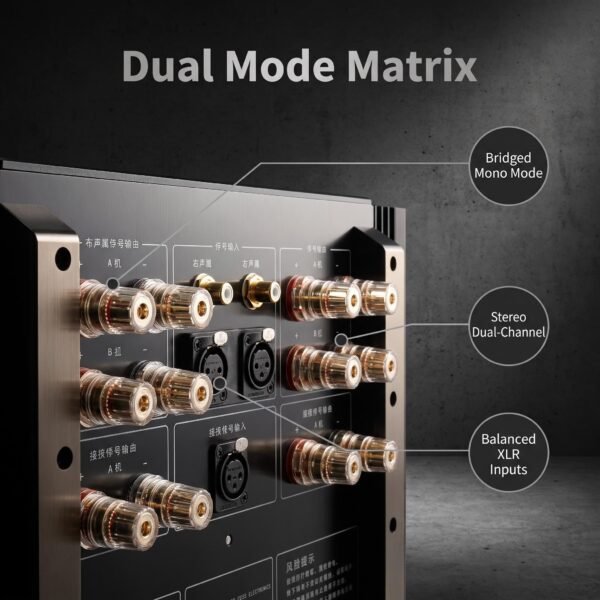

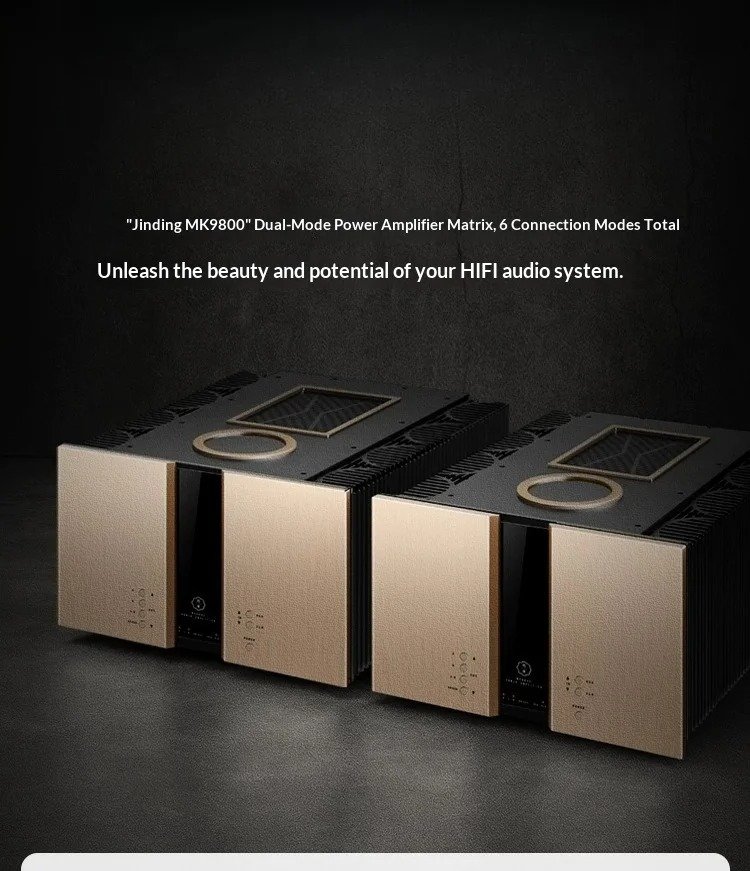

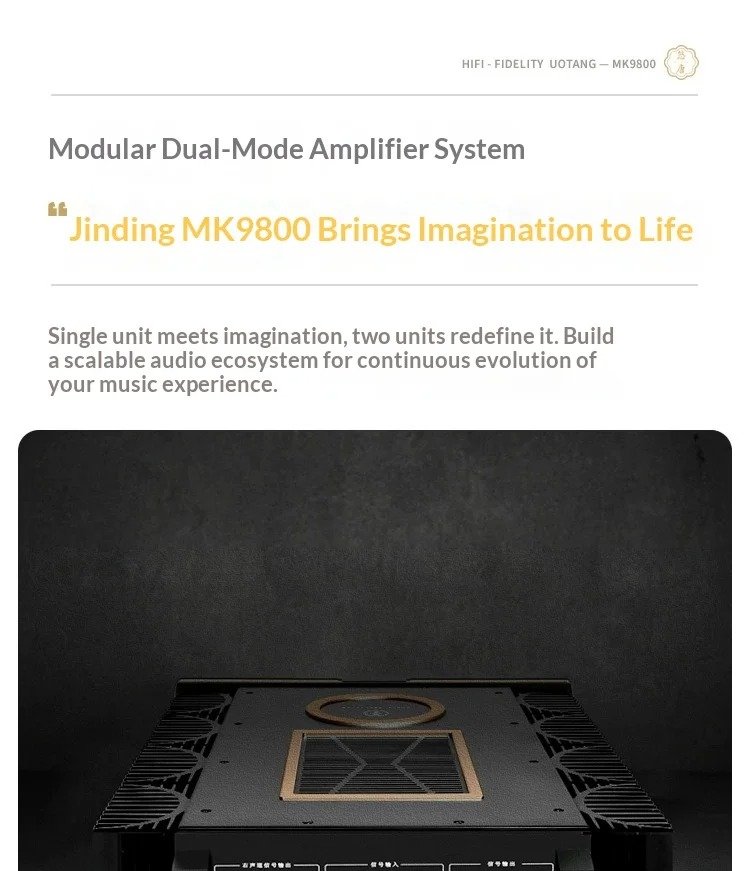

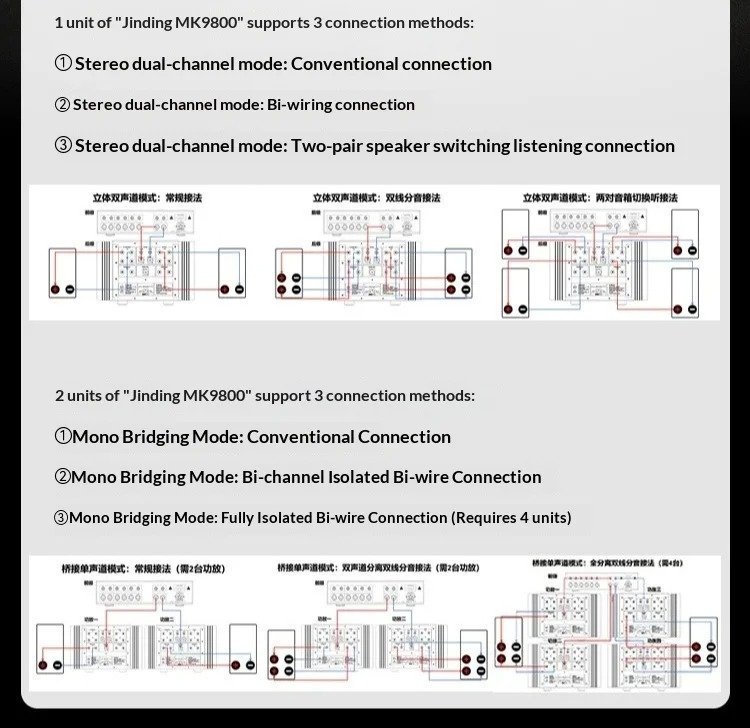

Dual operating modes support stereo two-channel and bridged mono, offering six connection options to match various audio system configurations.

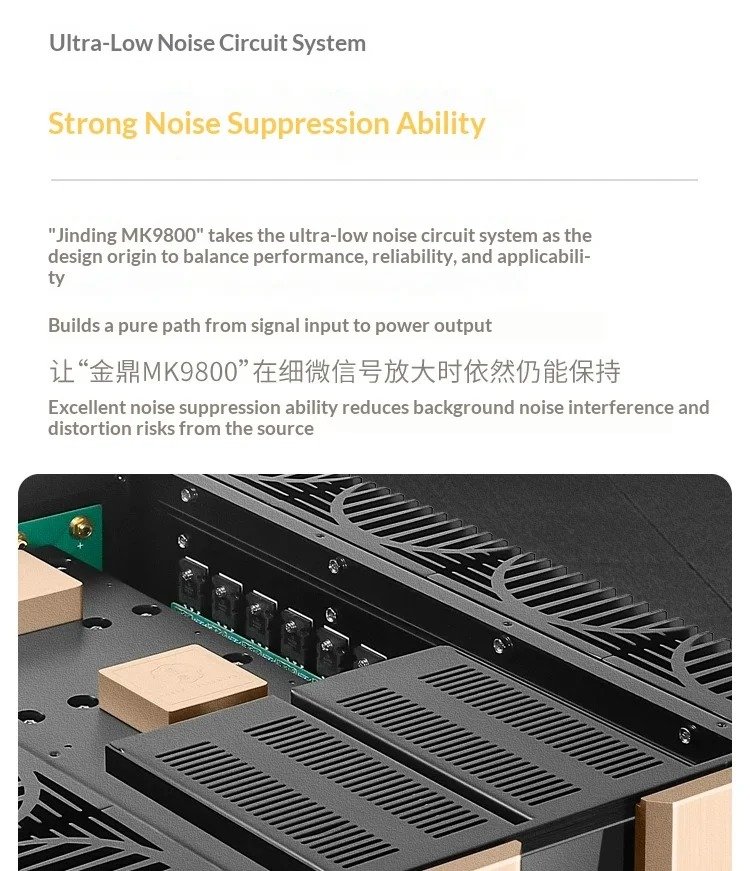

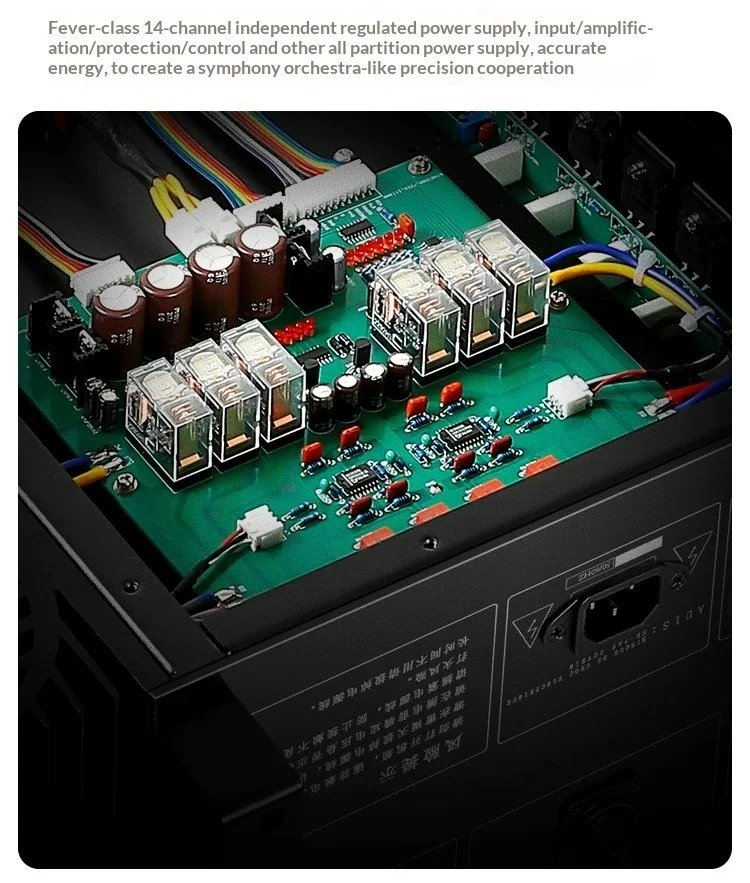

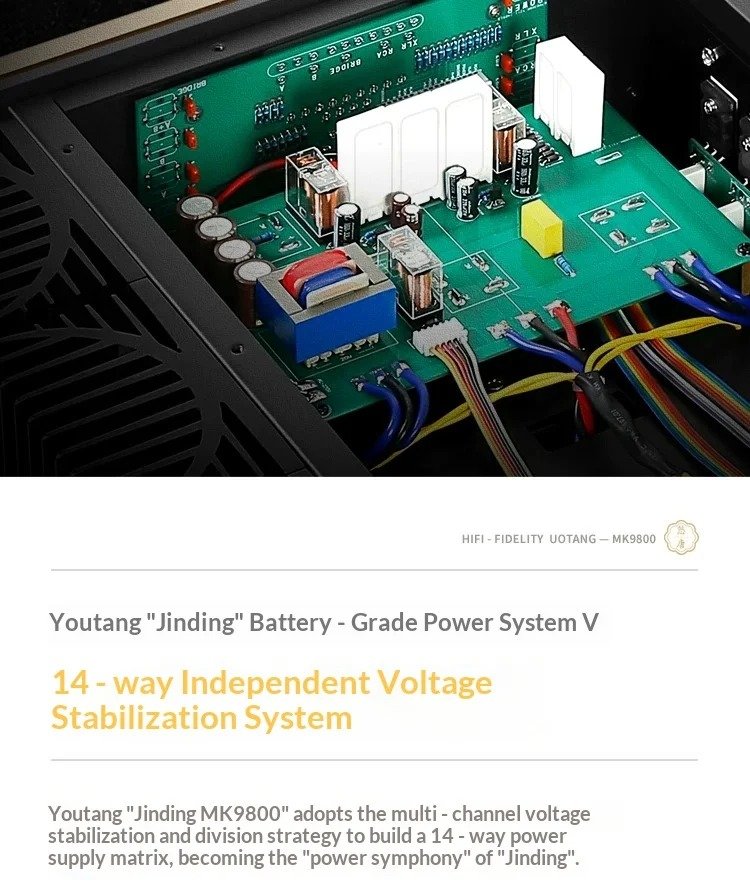

An ultra-low noise 14-channel independent voltage regulation system with a signal-to-noise ratio of up to 125dB and total harmonic distortion less than 0.005%. Restore every subtle detail of your music

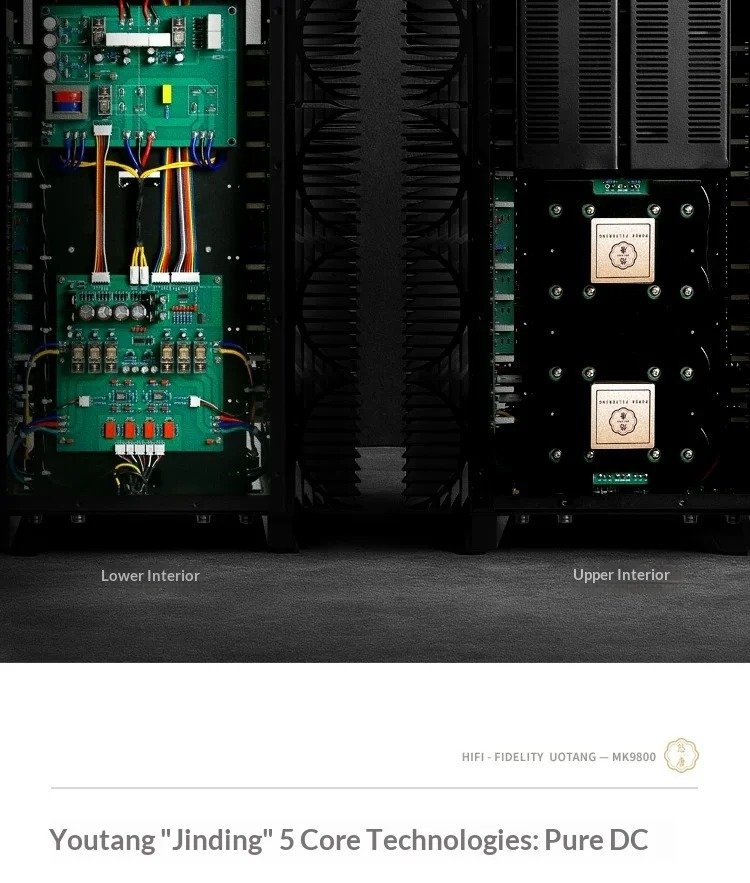

For audiophiles seeking the ultimate Hi-Fi sound quality, the MK9800 power amplifier is built with top-tier audiophile-grade components and mature professional audio technology, allowing you to enjoy a studio-level listening experience at home or in your studio. We’ve meticulously refined every detail of the power supply: from the high-flux silicon steel core and dual 1200W packaged toroidal transformers to the 1280,000 microfarad capacitor array, CLC filter circuit, and 14 independent regulated power rails, the entire battery-grade power purification system virtually eliminates all power ripple and noise, providing stable and clean power to every onboard audio component. This amplifier employs a fully symmetrical, fully balanced, pure DC zero-coupling design, completely eliminating all AC signal coupling distortion. The built-in midpoint servo system adjusts the output state in real time, ensuring optimal performance under all conditions. This amplifier uses 48 ON Semiconductor power transistors arranged in a fully symmetrical parallel matrix. The current feedback architecture dynamically tracks the output current and adjusts the gain instantly, maintaining extremely low distortion across the entire frequency range. With a high damping factor of 1000, this amplifier precisely controls your speakers with zero latency, delivering tight, fast bass and rich, detailed mid-high frequencies. It supports two operating modes: standard stereo two-channel mode provides 180W/channel at 8Ω, 360W/channel at 4Ω, and 720W/channel at 2Ω; bridged mono mode boosts output power to 500W at 8Ω, 1000W at 4Ω, and 1800W at 2Ω. Six different connection options cater to the diverse needs of your home theater, desktop Hi-Fi, and professional monitoring systems. The luxurious dark metal chassis, brushed gold front panel, and integrated large heatsink create an aesthetically pleasing ambiance for high-end audiophiles, perfectly matching your high-end speaker system and becoming the focal point of your listening room.

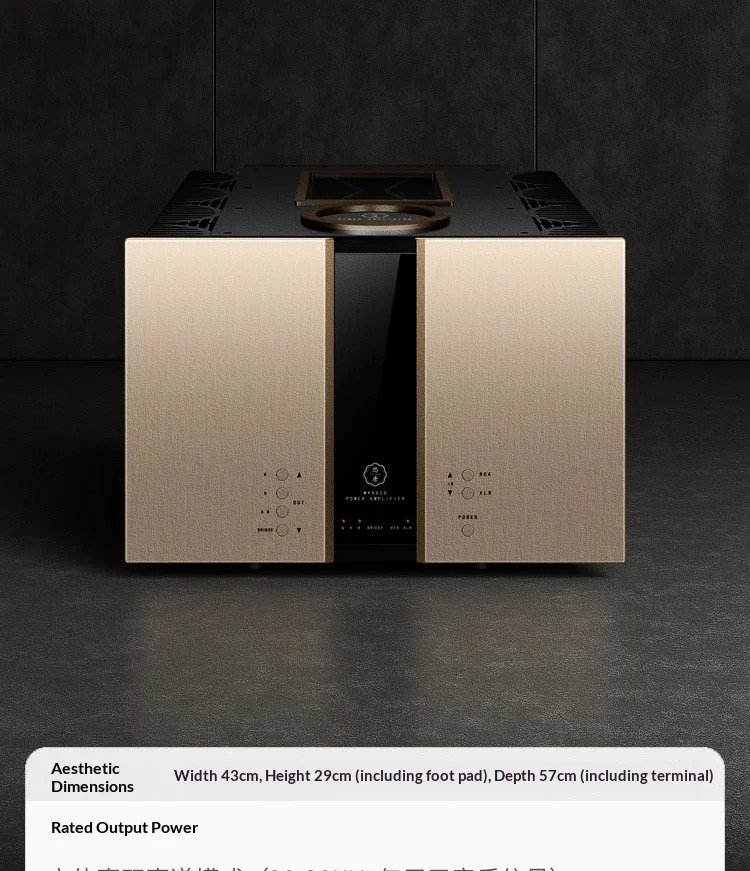

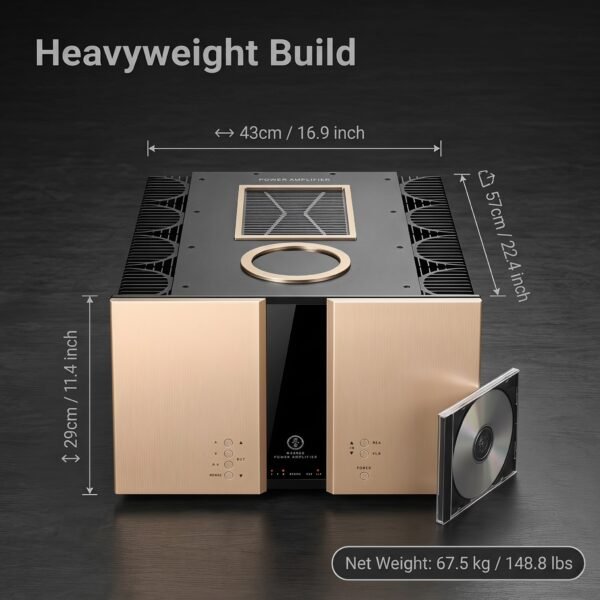

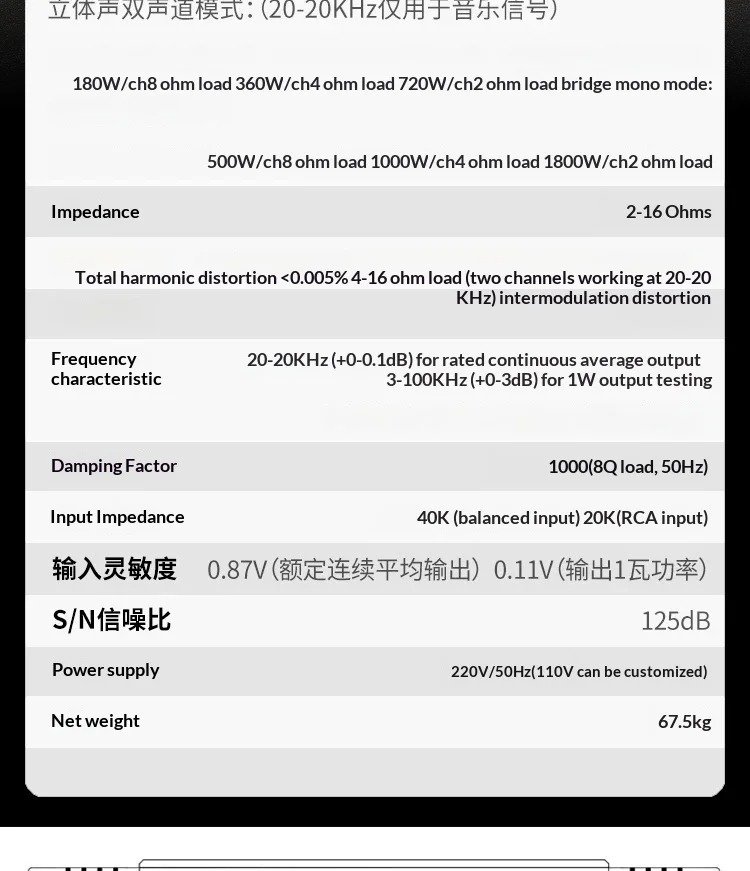

Product Dimensions: 43cm (W) x 29cm (H, including feet) x 57cm (D, including binding posts)
Rated Output Power (Stereo Dual-Channel Mode): 180W/channel (8Ω), 360W/channel (4Ω), 720W/channel (2Ω)
Rated Output Power (Bridged Mono Mode): 500W (8Ω), 1000W (4Ω), 1800W (2Ω)
Impedance Compatibility: 2-16Ω
Total Harmonic Distortion: <0.005% (20-20kHz, 4-16Ω load, dual-channel operation)
Intermodulation Distortion: <0.01%
Frequency Response: 20-20kHz (+0-0.1dB) at rated output, 3-100kHz (+0-3dB) at 1W output
Damping Factor: 1000 (8Ω load, 50Hz)
Input Impedance: 40KΩ (Balanced) XLR), 20KΩ (RCA)
Signal-to-noise ratio: 125dB
Power supply: 220V/50Hz (110V customizable for US use)
Net weight: 67.5kg
