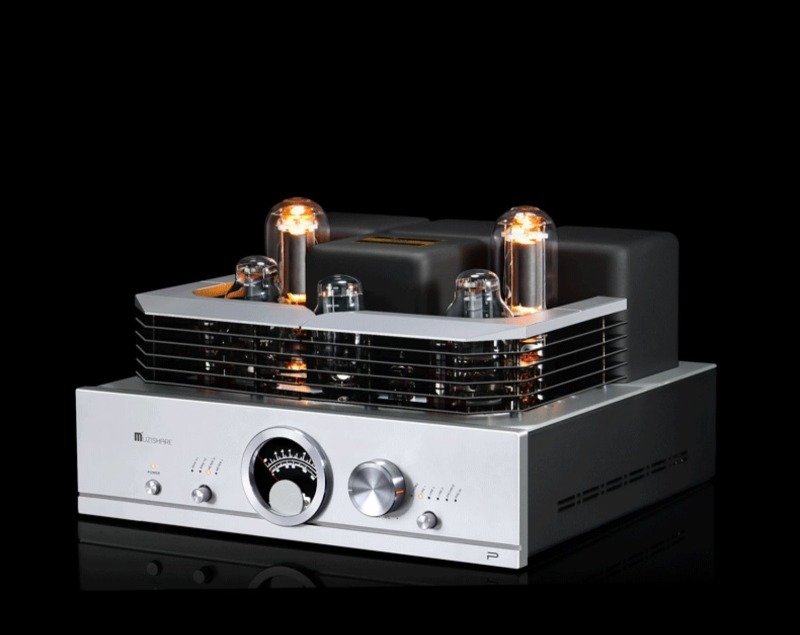

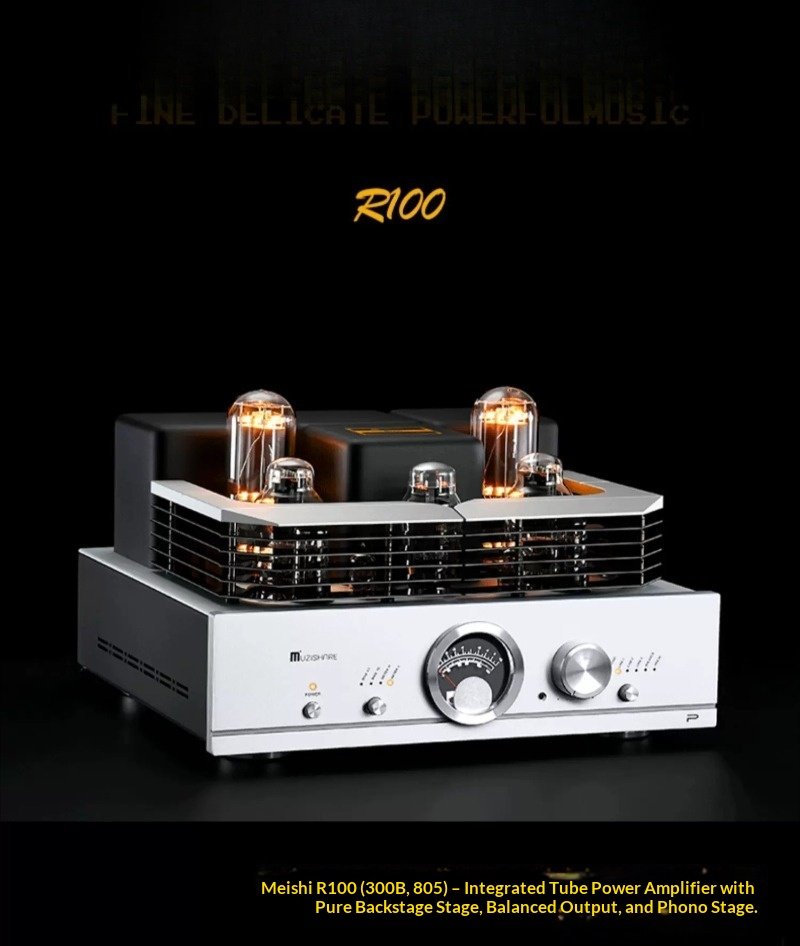

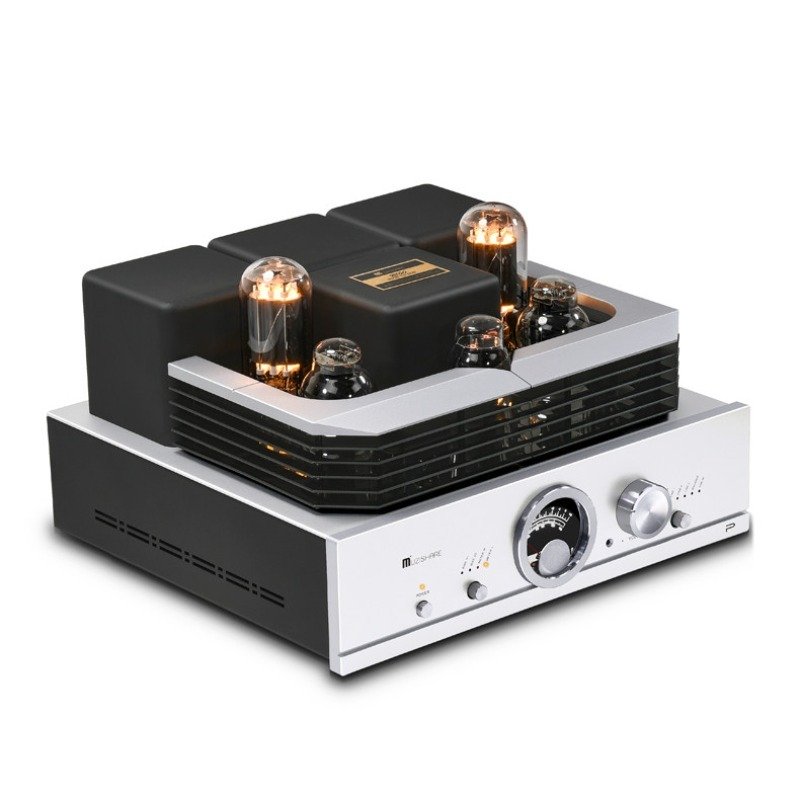

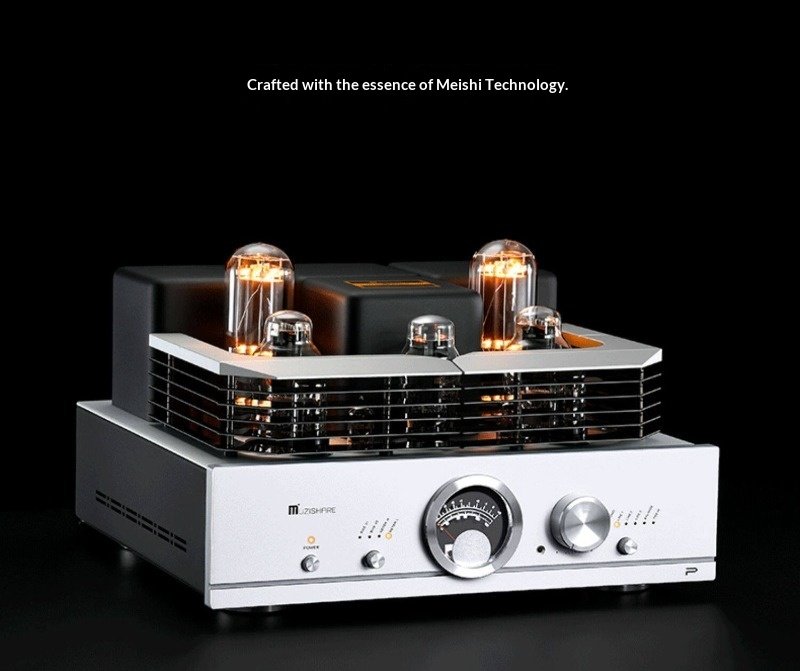

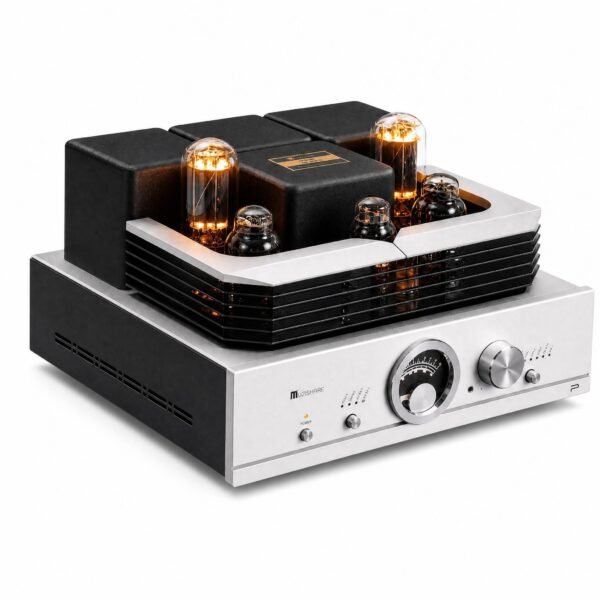

- MUZISHARE R100 | Pure Class A Tube Amplifier
Masterclass Vacuum Tube Engineering for the Ultimate Audiophile Experience.
Designed for uncompromising sound reproduction, the Muzishare R100 combines a pure Class A circuit architecture with premium 300B driver stages. Delivering breathtaking spatial imaging, natural timbre, and effortless dynamic headroom, it stands as a benchmark of refined tube amplification.
- Pure Class A Topology: Delivers rich, natural harmonics and exceptional low-distortion musicality.

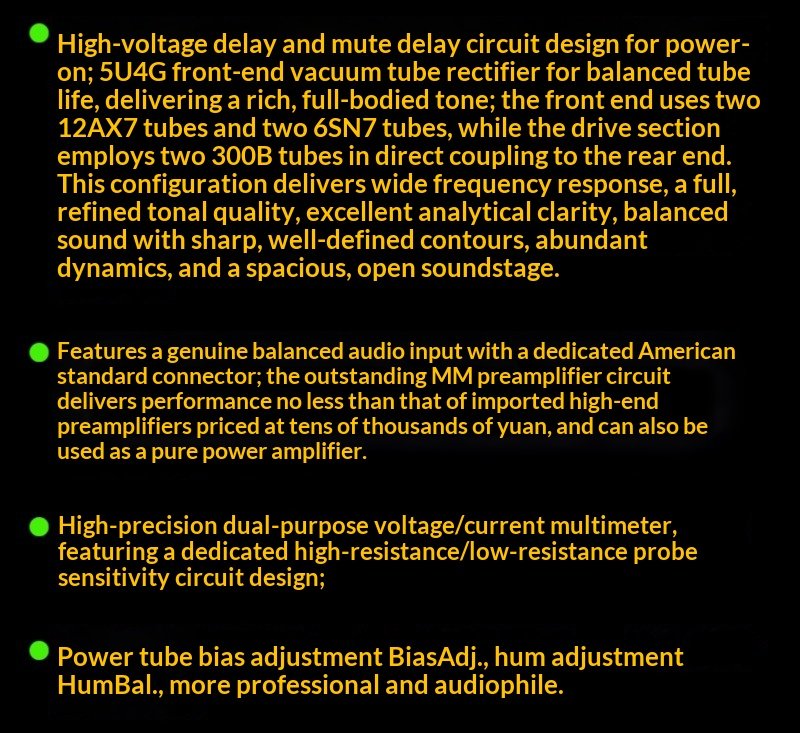

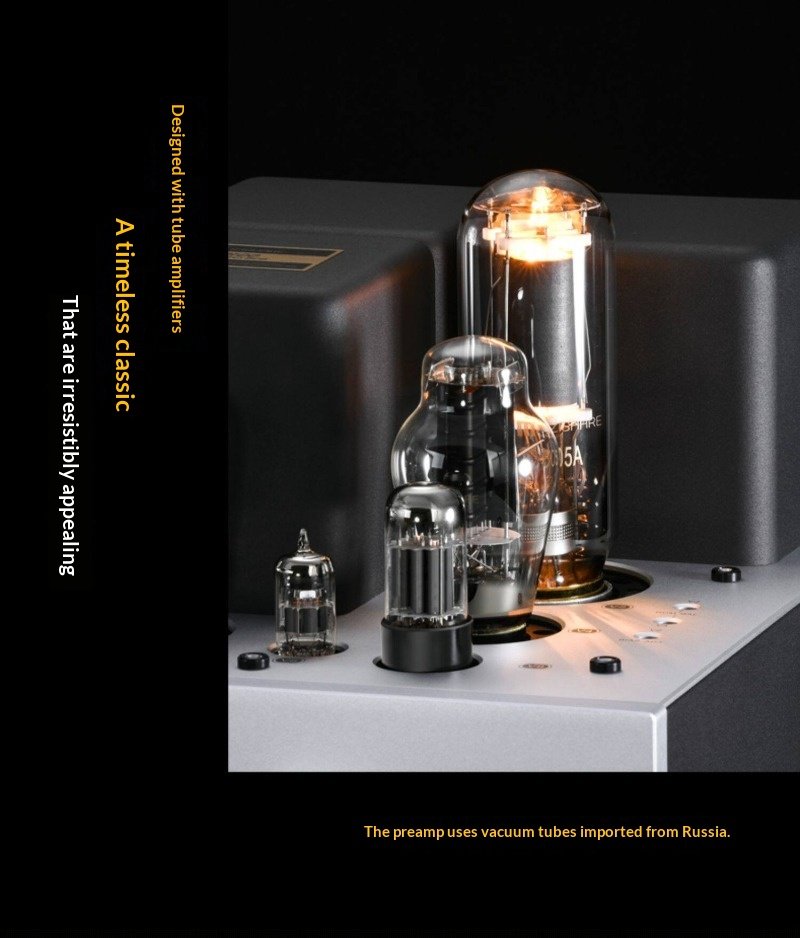

Precision 300B Driver Stage: Ensures exquisite midrange warmth and effortless transient response.
Flexible Tube Compatibility: Engineered to optimize performance across 845, 805, and 211 power tubes.

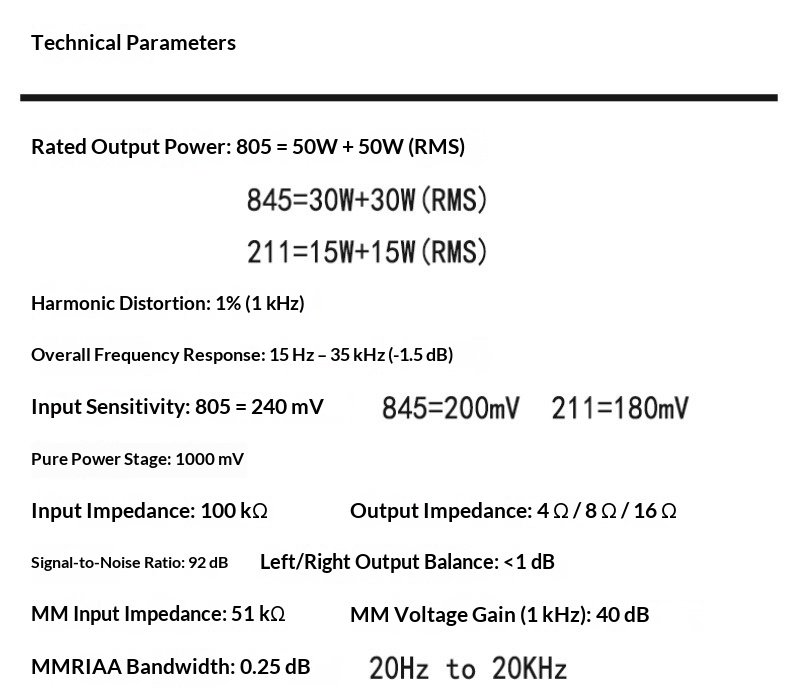

- Technical Specifications
Rated Output Power:
805 = 50W × 2 (RMS); 845 = 30W × 2 (RMS); 211 = 15W × 2 (RMS)
Harmonic Distortion: 1% (1kHz)
Frequency Response: 15Hz – 35kHz (-1.5dB)
Input Sensitivity: 805 = 240mV, 845 = 200mV, 211 = 180mV
Power Amplifier Mode (Direct Input): 1000mV
Input Impedance: 100kΩ

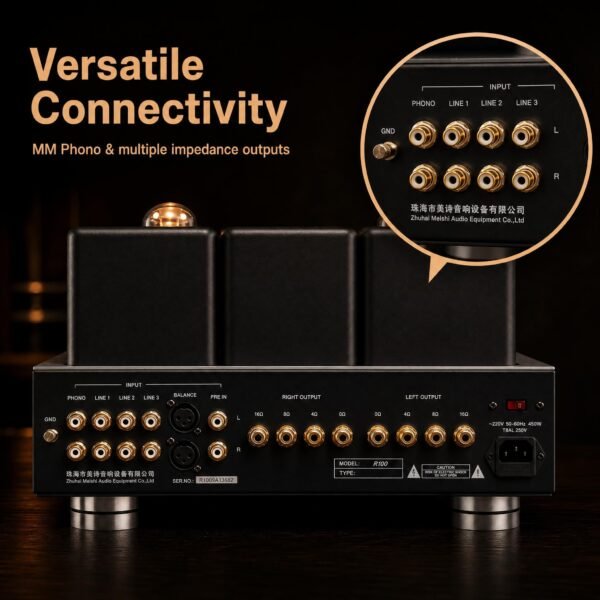

Output Impedance: 4Ω, 8Ω, 16Ω
Signal-to-Noise Ratio: 92dB
Left/Right Output Balance: < 1dB
MM Input Impedance: 51kΩ
MM Voltage Gain (1kHz): 40dB
MM RIAA Accuracy: 0.25dB, 20Hz to 20kHz

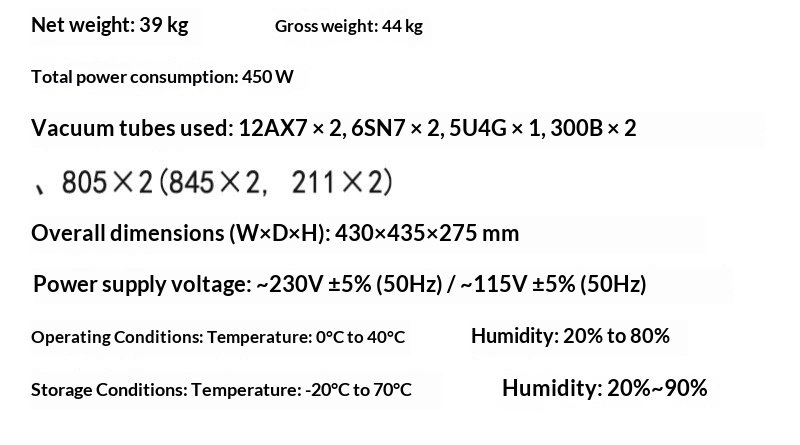

Net Weight: 39kg
Power Consumption: 450W

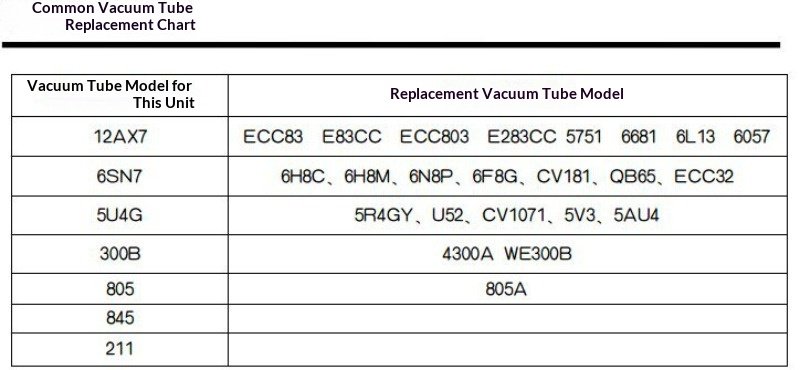

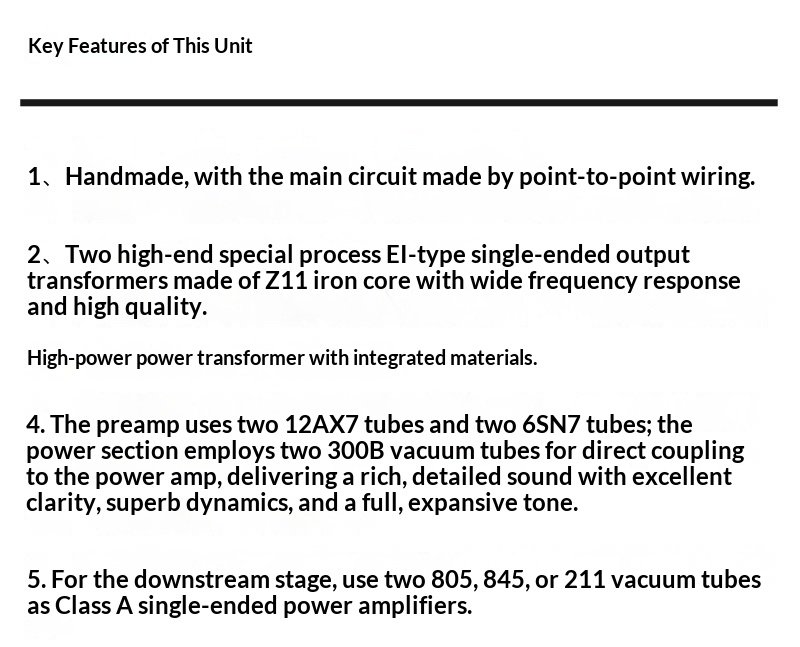

Vacuum Tubes: 12AX7 × 2, 6SN7 × 2, 5U4G × 1, 300B × 2, 805 × 2 (or 845 × 2, or 211 × 2)
Dimensions (W × D × H): 430 × 435 × 275 mm
Supply Voltage: ~230V ± 5% (50Hz) / ~115V ± 5% (50Hz)
Operating Conditions: Temperature: 0°C – 40°C, Humidity: 20% – 80%
Storage Conditions: Temperature: -20°C – 70°C, Humidity: 20% – 90%
