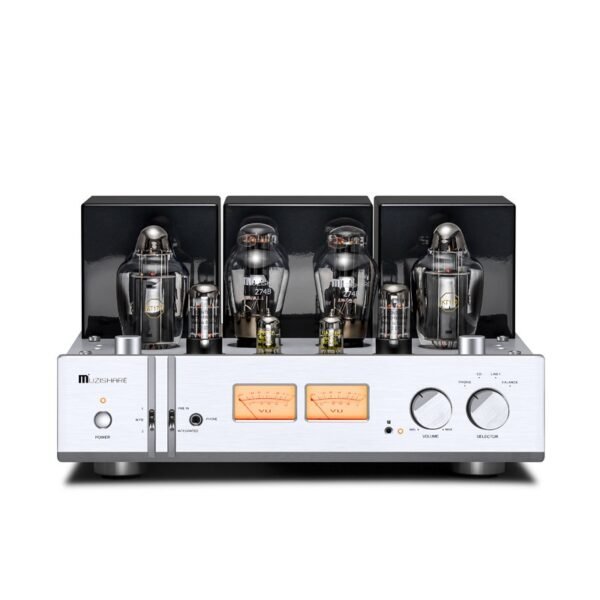

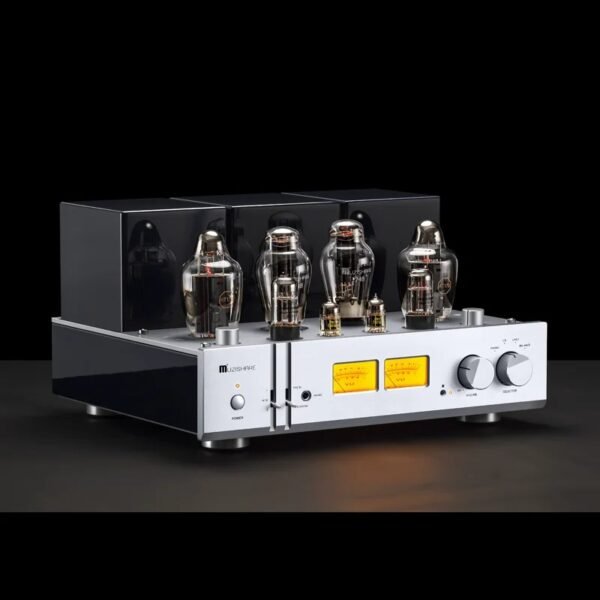

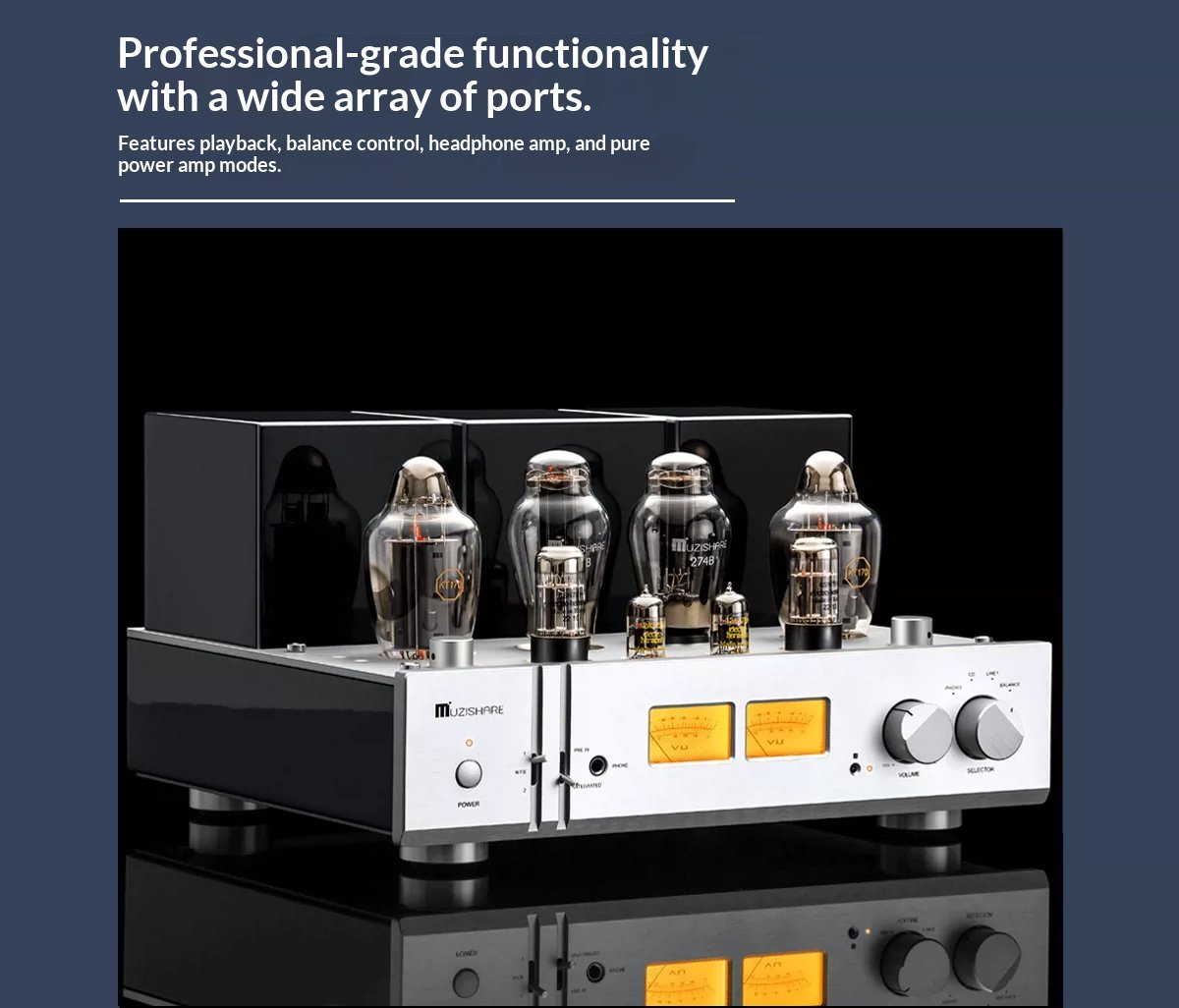

- Muzishare X10 Pro KT170 Single-Ended Class A Tube Amplifier
Pure Class A Performance. Uncompromising Tube Warmth.
Engineered around high-performance KT170 power tubes, the X10 Pro delivers exceptional dynamic headroom, ultra-low distortion, and unmatched sonic transparency.

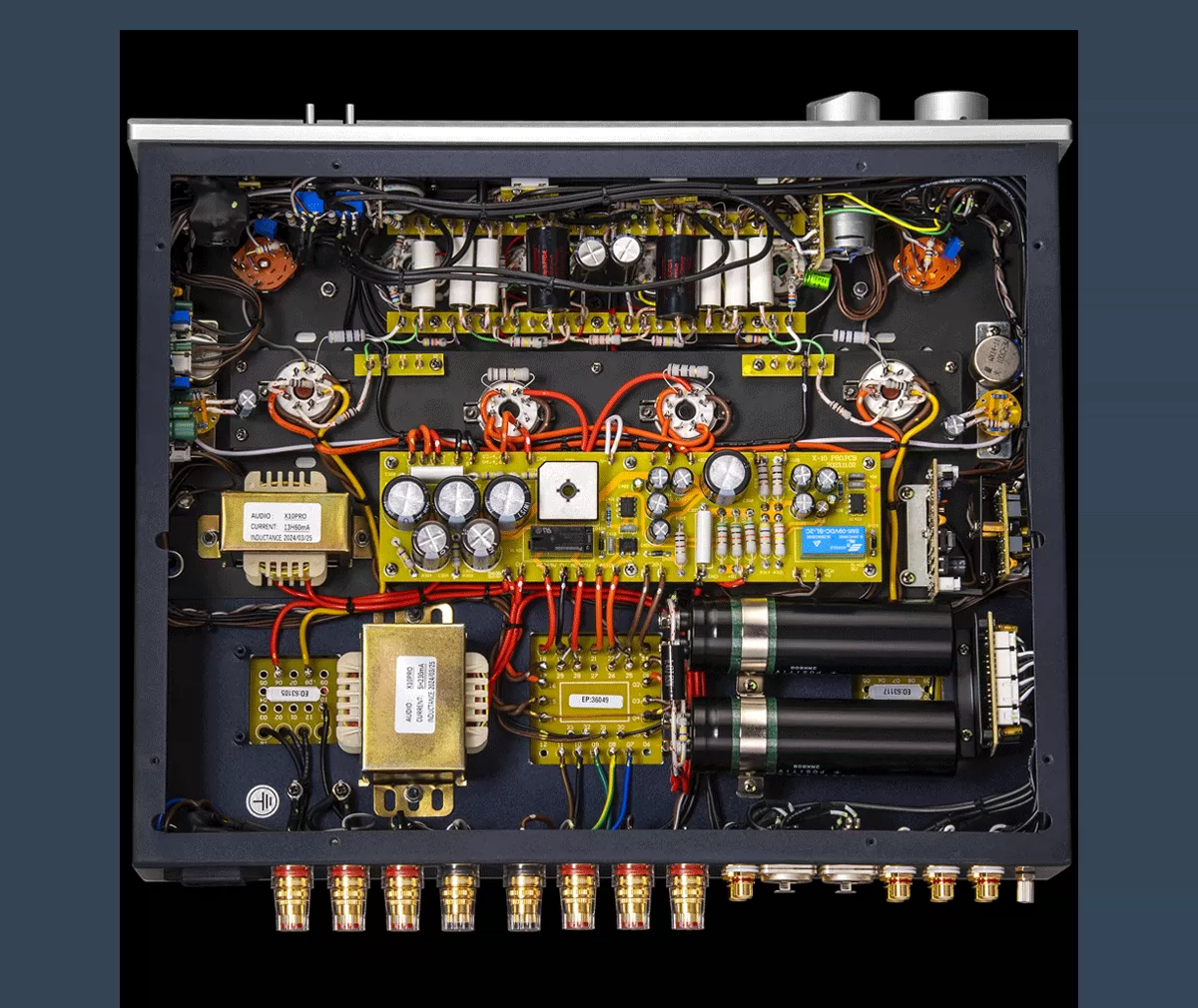

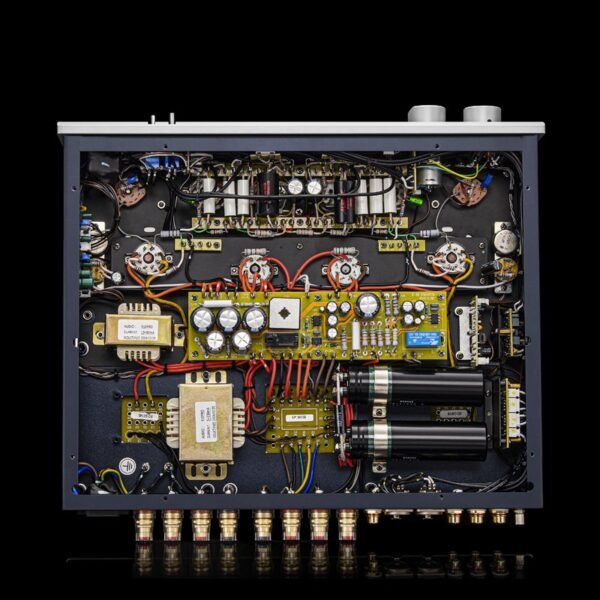

Hand-crafted point-to-point wiring combined with premium audiophile-grade components ensures breathtaking soundstage depth and authentic analog realism for the most discerning listeners.
- Technical Specifications
Rated Output Power: 28W + 28W
Harmonic Distortion: 1% (1kHz)
Frequency Response: 20Hz – 50kHz (-1.5dB)
Signal-to-Noise Ratio: 92dB
Left/Right Output Balance: <1dB
Output Impedance: 4Ω, 8Ω, 16Ω
Input Impedance: 100kΩ
Power Consumption: 270W
Net Weight: 36kg
Input Sensitivity: 165mV (-1.5dB), 180mV (-3dB), 1.5V (pre-in)

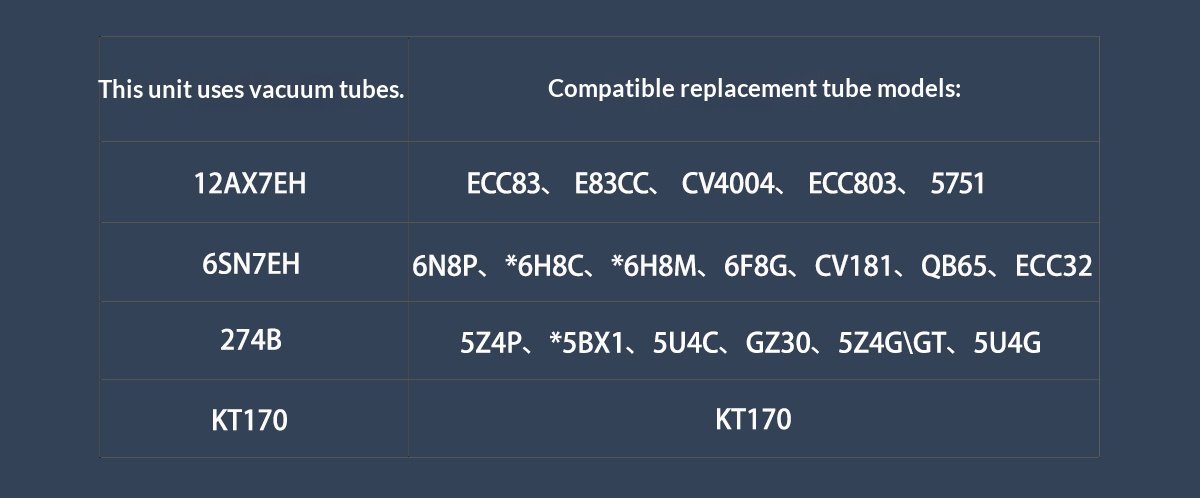

Vacuum Tubes: 12AX7EH x 2, 6SN7EH x 2, KT170 x 2, 274B x 2
Dimensions (W x D x H): 430 x 393 x 228 (mm)
Power Supply Voltage: ~115V / 230V ±5% (50Hz)
Operating Conditions: Temperature 0°C – 40°C, Humidity 20% – 80%
Storage Conditions: Temperature -20°C – 70°C, Humidity 20% – 90%
