Fully symmetrical X-Amp ultra-high-speed power amplifier circuit;
Fully DC-coupled circuit;
Balanced or single-ended input;
High damping characteristics, capable of driving all low-sensitivity, large-size speakers;
Precise sound quality: High resolution, superior control, and outstanding low-frequency performance.
Design and Materials:

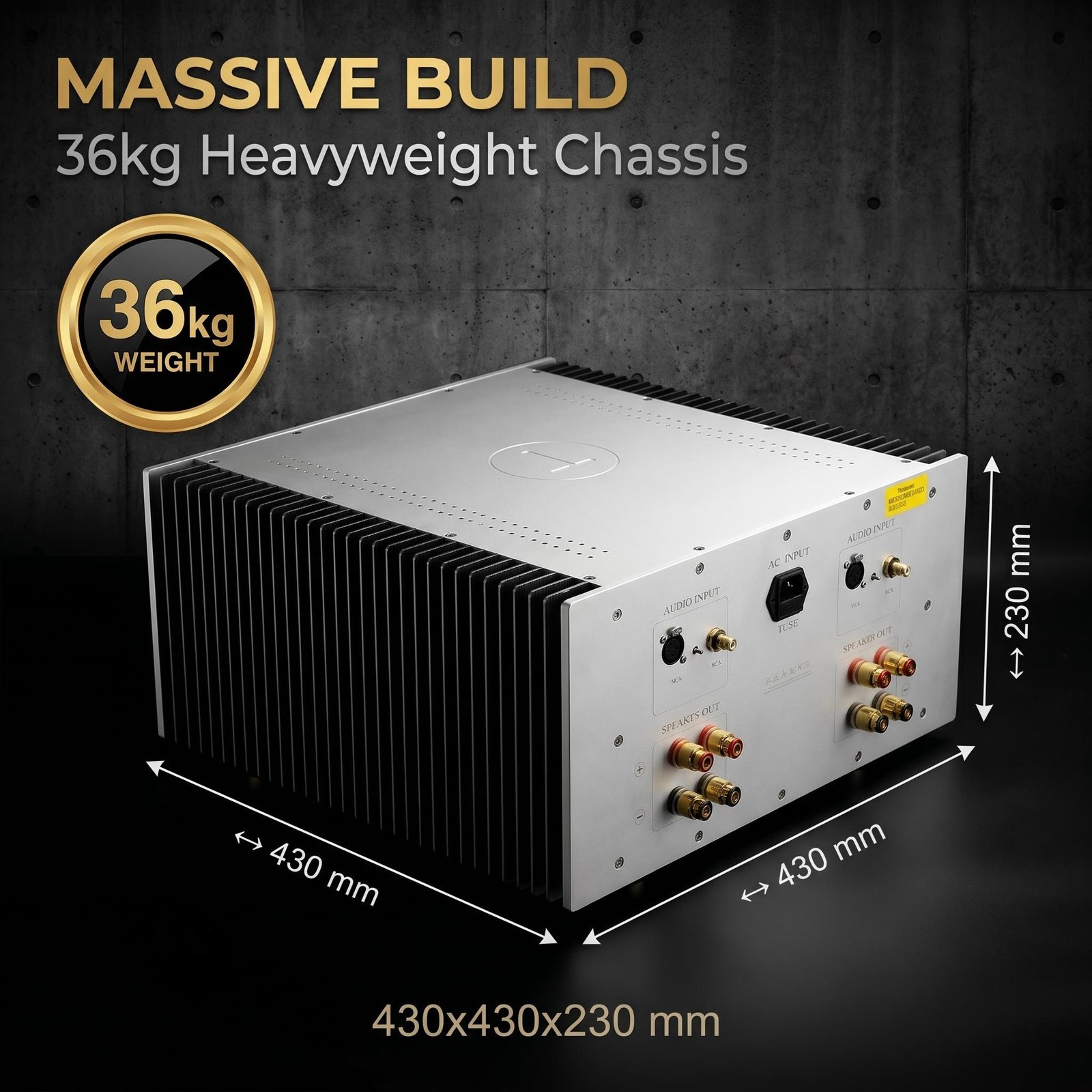

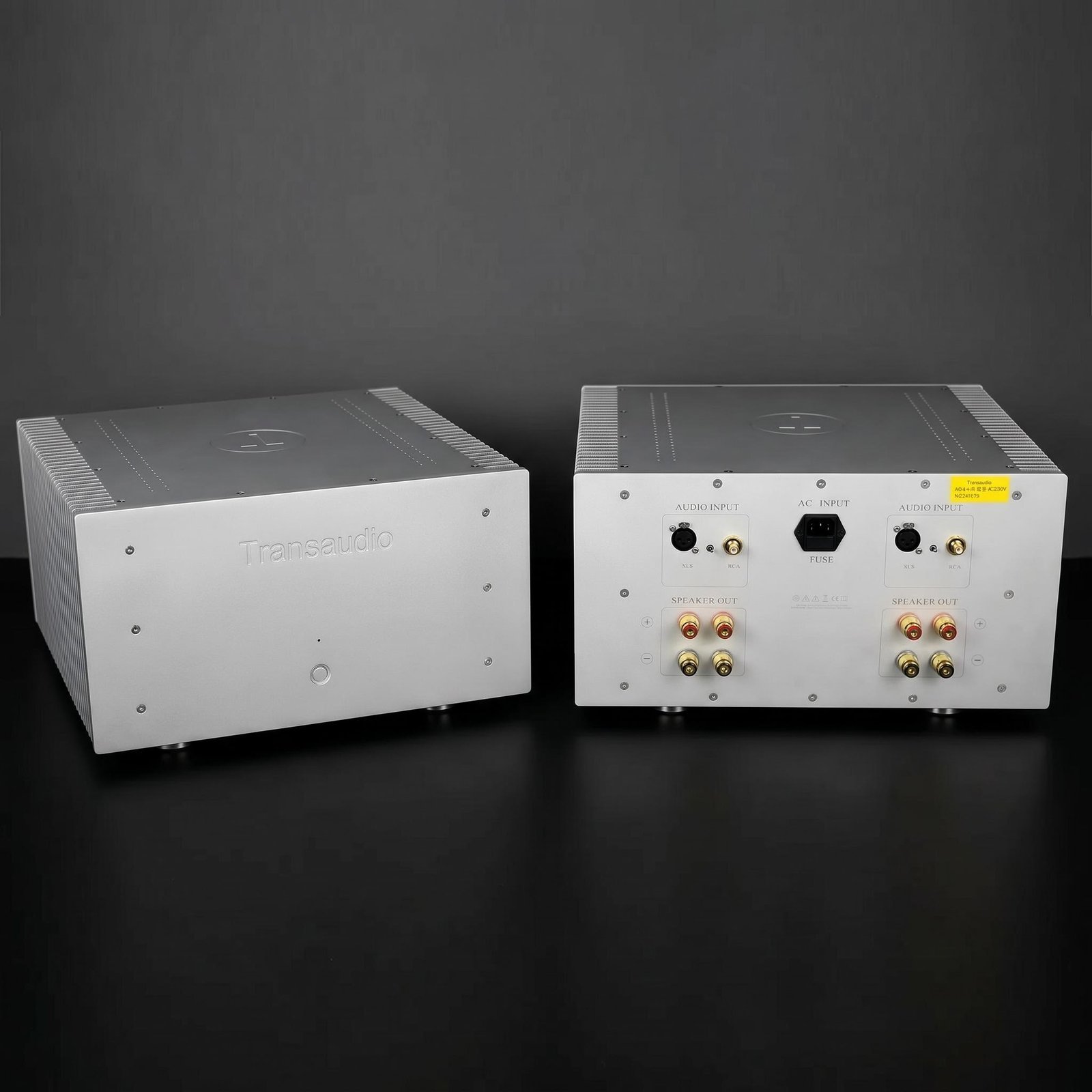

Oversized, robust chassis, 430mm wide, 430mm deep, and 230mm high (including feet). Heat dissipation area is 29.5% larger than the previous generation.

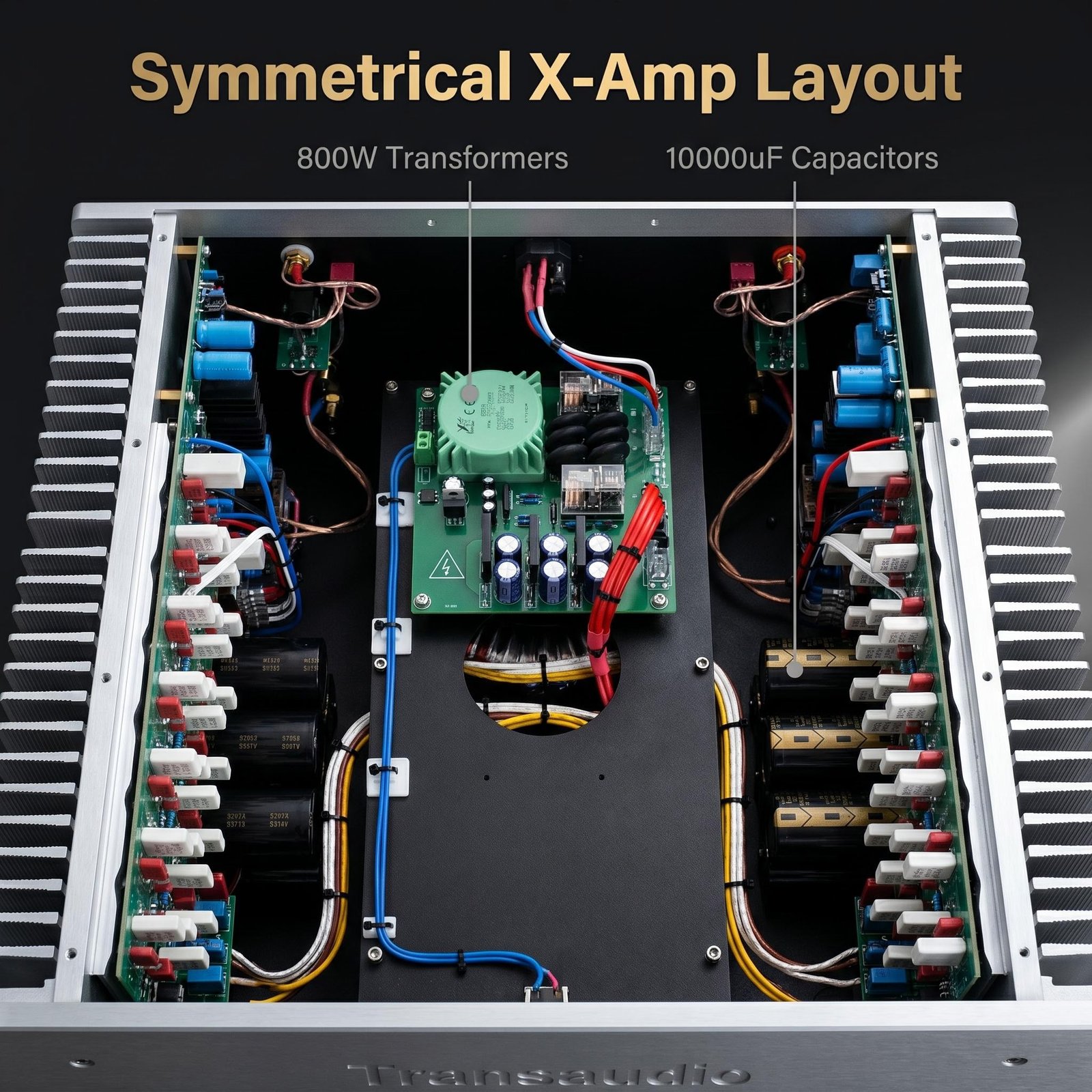

Each channel is equipped with an 800W Japanese steel-core transformer.

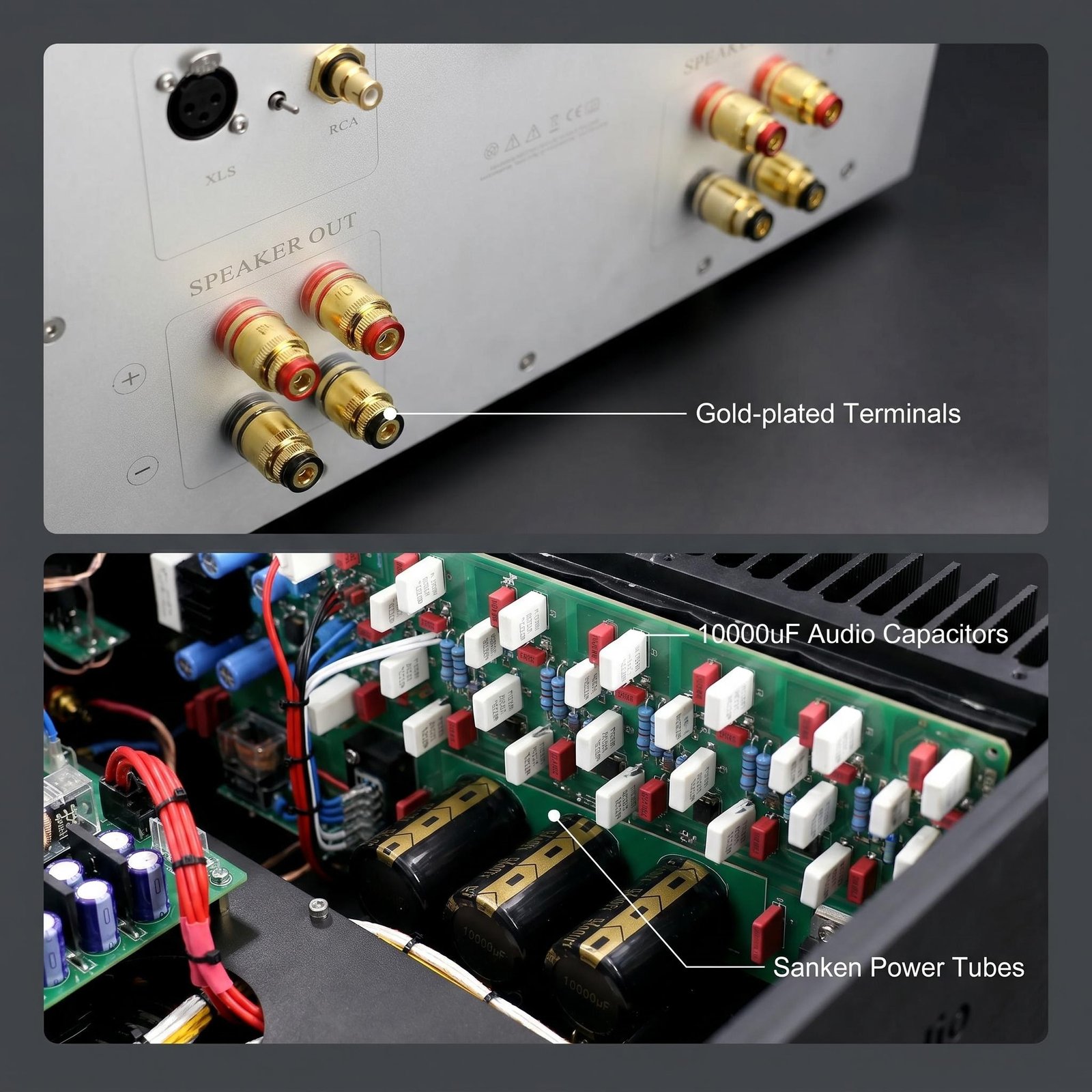

Each channel is equipped with eight 10000uF audio electrolytic capacitors. Left and right channels are completely independent; each channel’s amplifier board, power board, and protection board are completely independent. Each channel is equipped with seven pairs of precision-matched original Sanken vacuum tubes from Japan.
Ultra-high quiescent current, 120mA per tube.
Comprehensive speaker protection, effectively protecting your expensive speakers. Soft-start function. DC power supply filtering function. Shute power outlet and gold-plated fuse. Shengyun

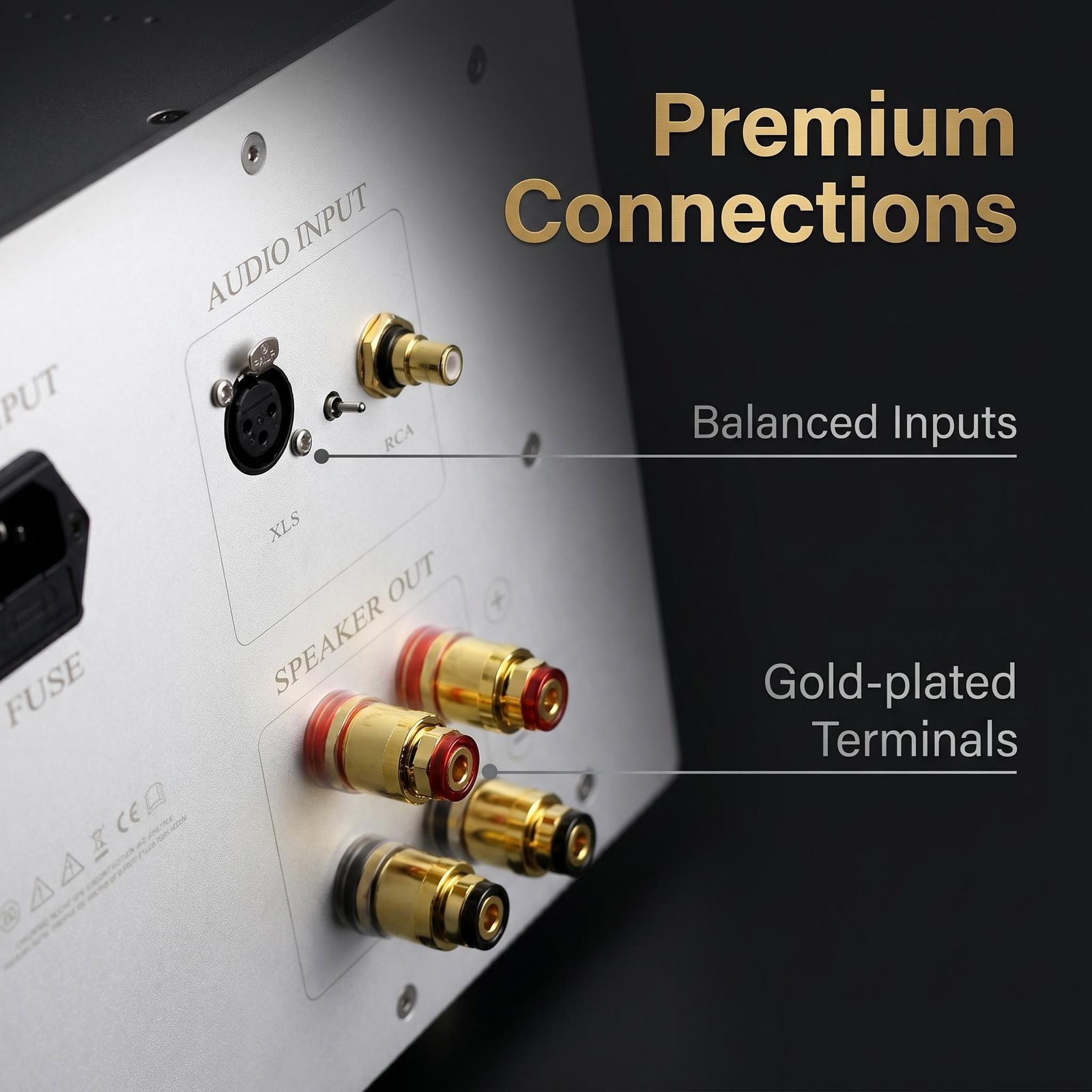

High-quality binding posts.
Shengyun RCA signal connector.
All signal cables are single-crystal copper wire.
Uses American ALPHA solder wire.

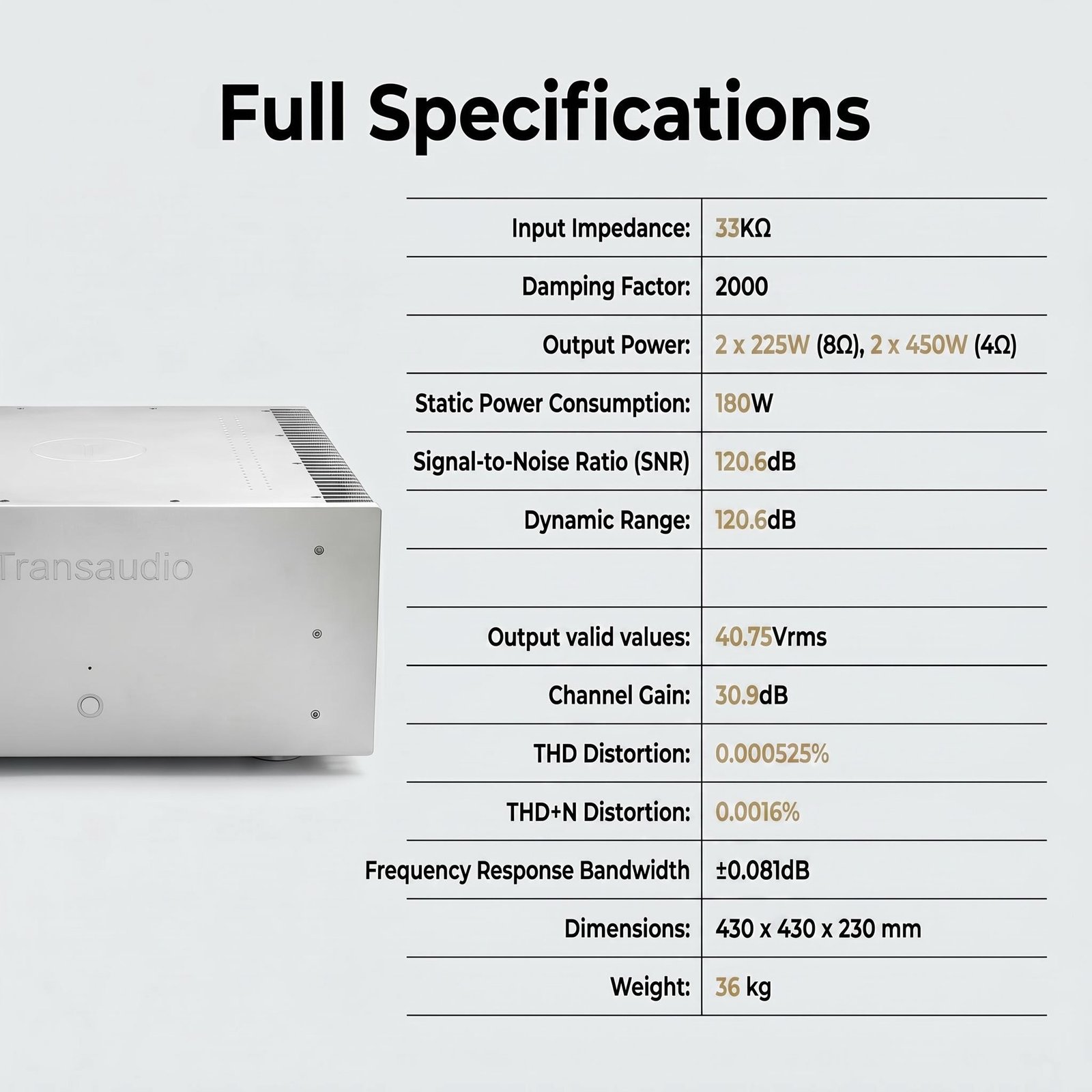

Specifications
Input Impedance: 33KΩ

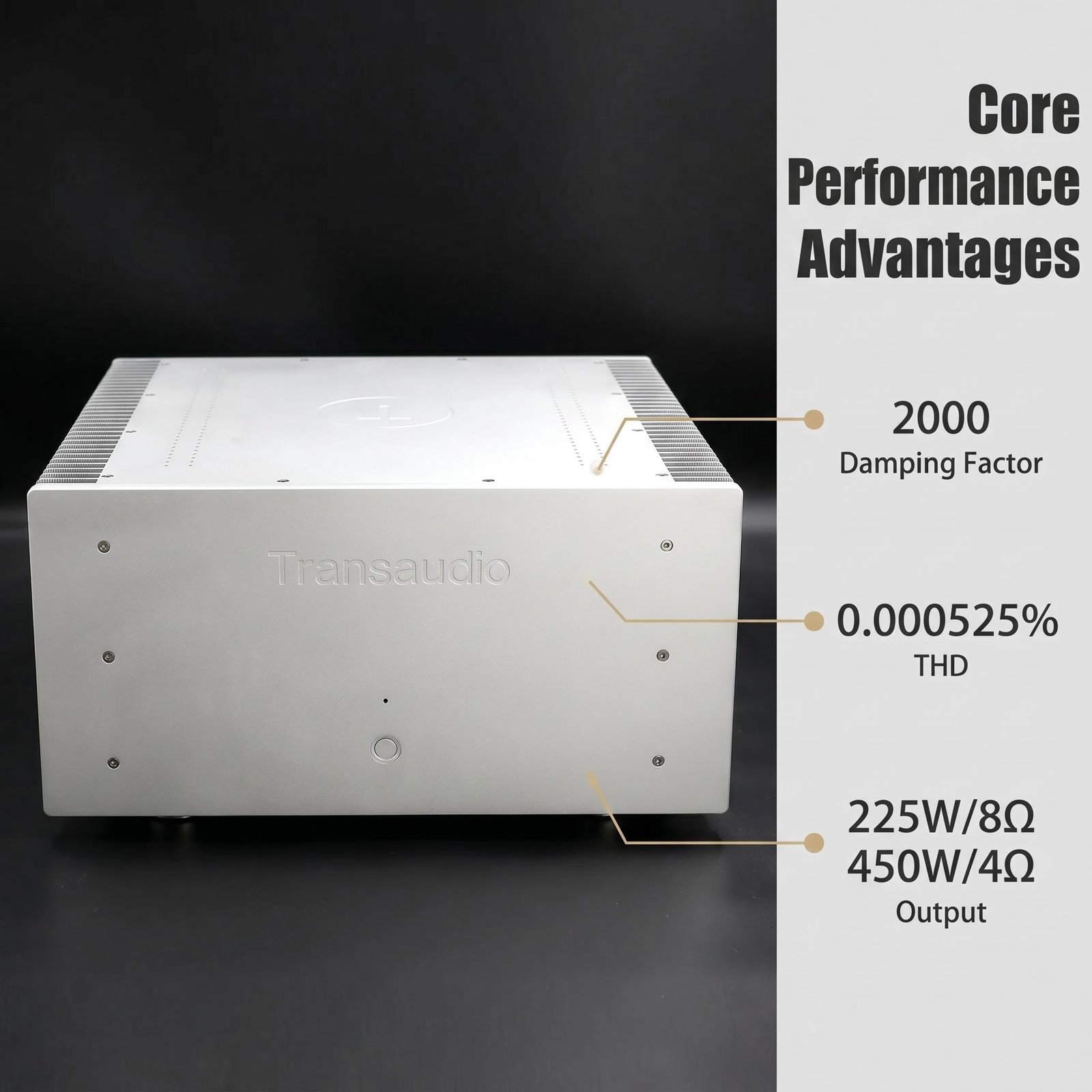

Damping Factor: 2000

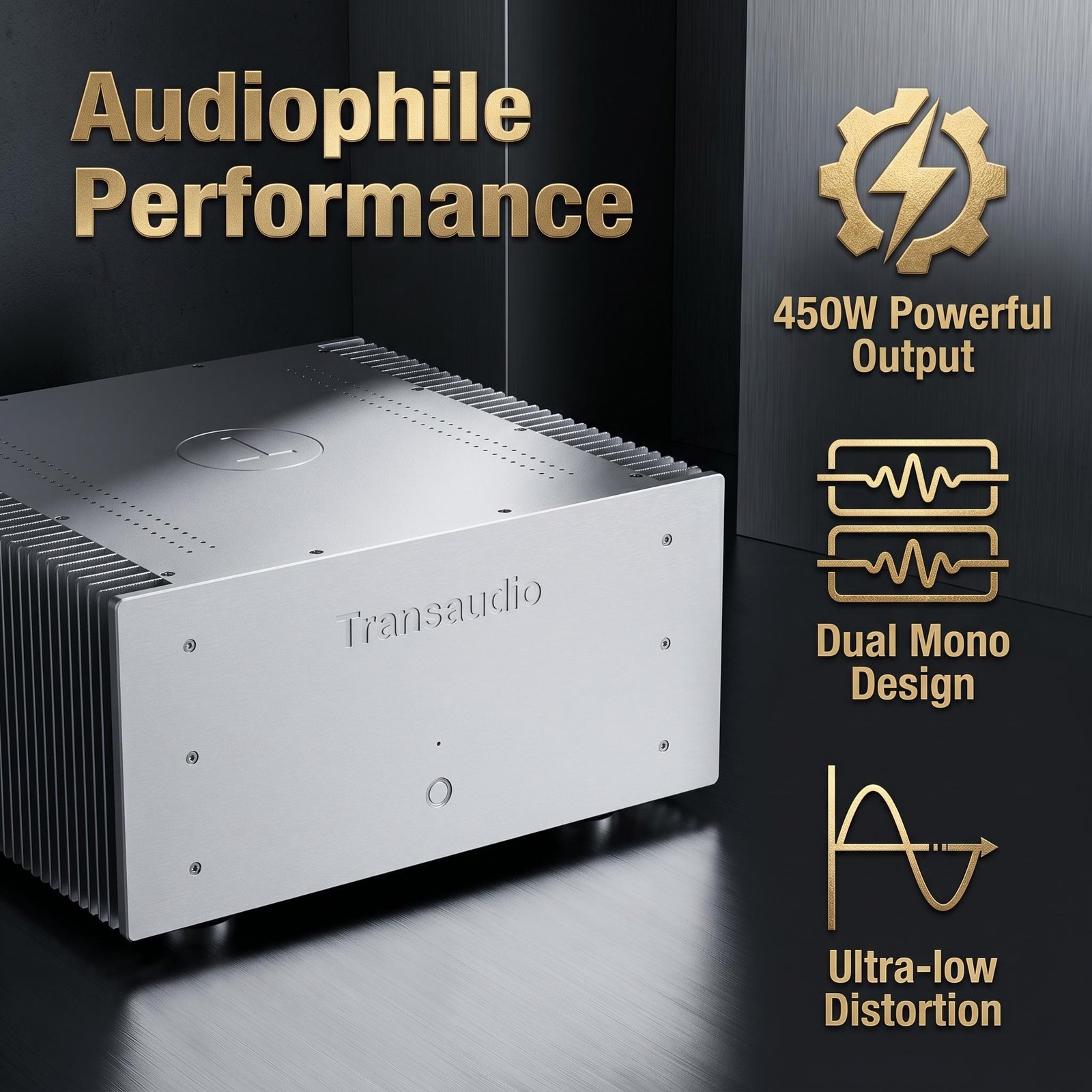

Output Power: 225W/8Ω, 450W/4Ω RMS power, capable of stable full-power output for extended periods
Static Power Consumption: 180W
Power Supply Voltage: AC110V or AC220V

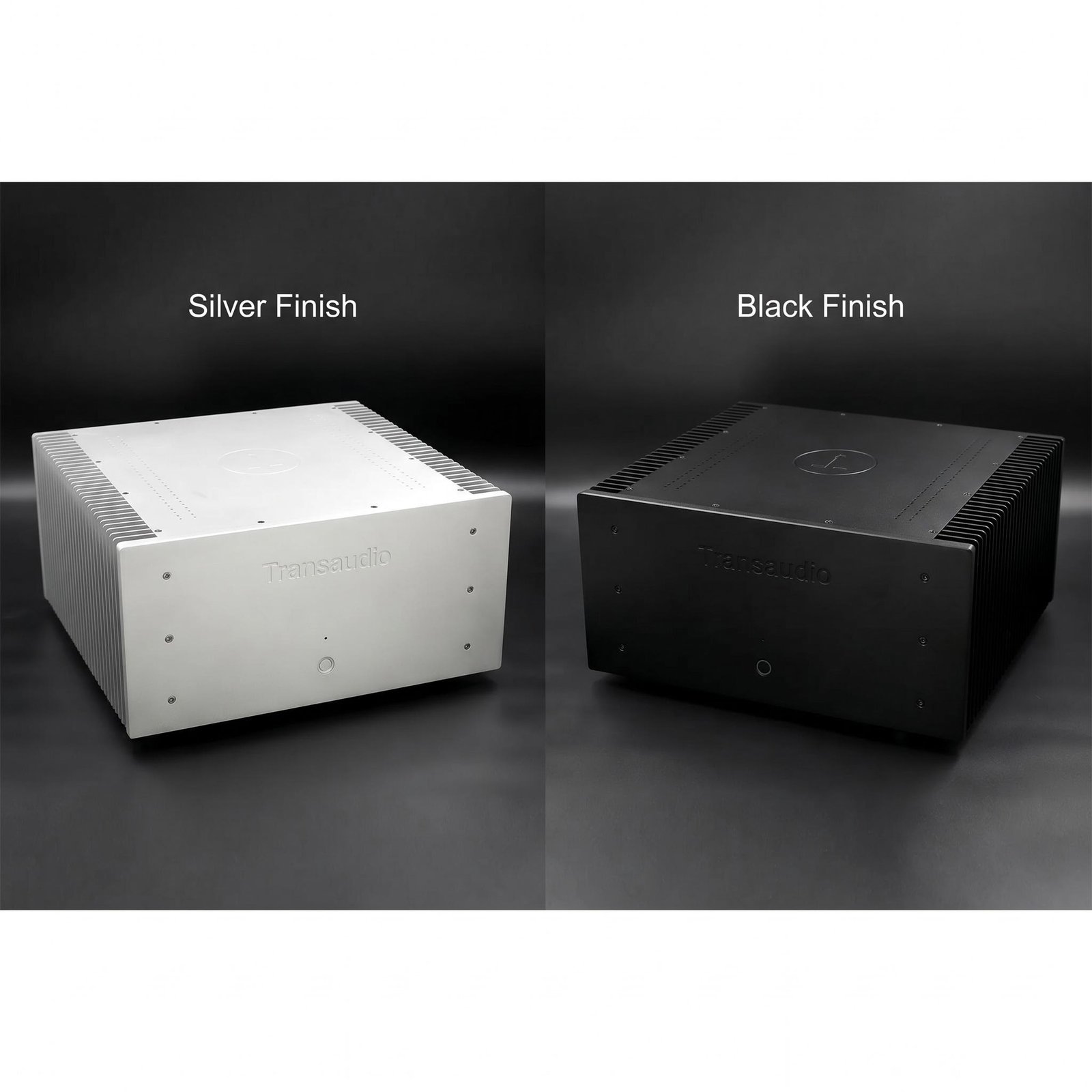

Chassis Color: All silver or all black
Weight: 36kg
Dimensions: 430*430*230mm

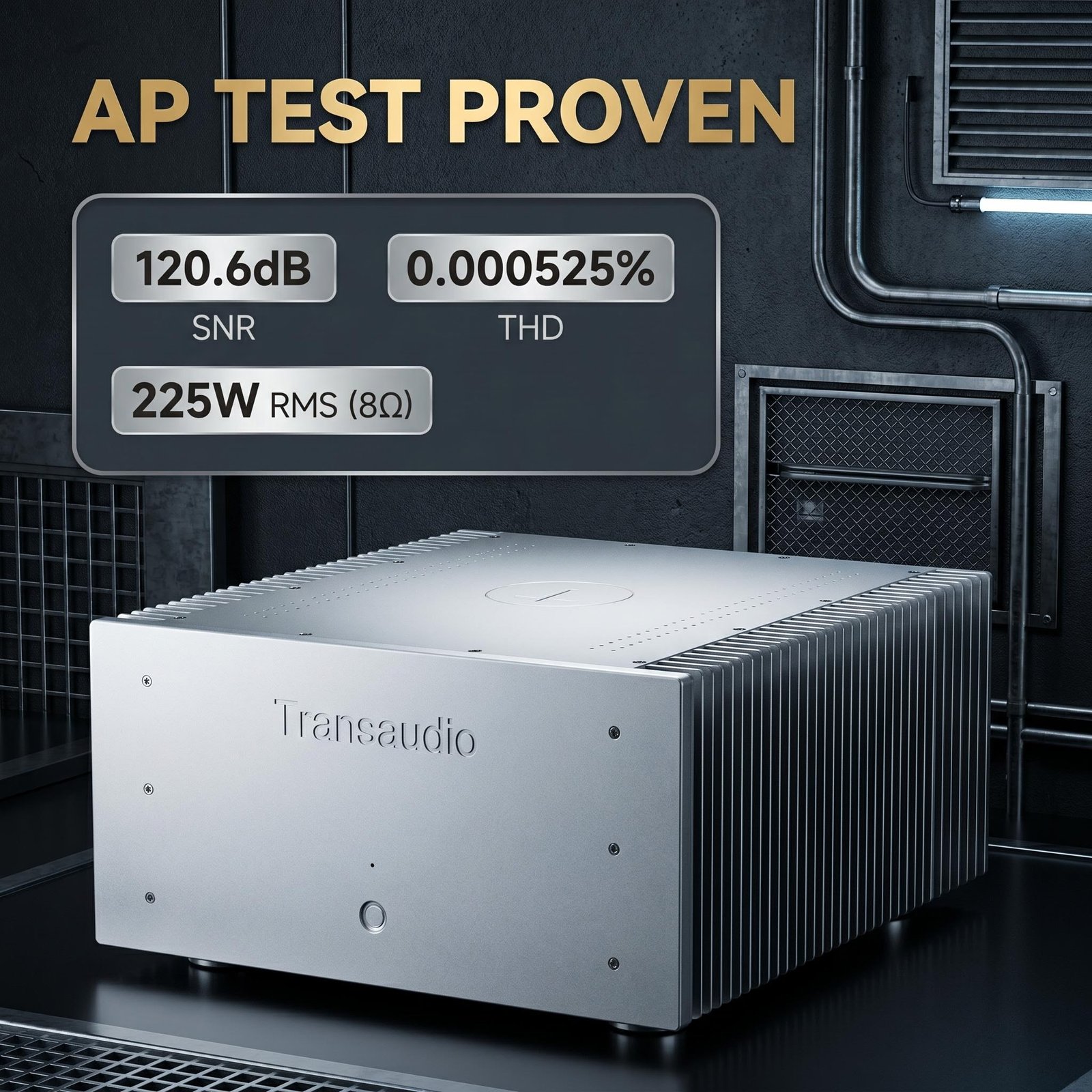

AP Test Parameters (800W load test data per channel with 8 ohms)
Output RMS: 40.75Vrms
Channel Gain: 30.9dB (35.2x)
Signal-to-Noise Ratio: 120.6dB
Dynamic Range: 120.6dB
Total Harmonic Distortion: 0.000525%
Total Harmonic Distortion Plus Noise Distortion: 0.0016%
Frequency Response Bandwidth: ±0.081dB
