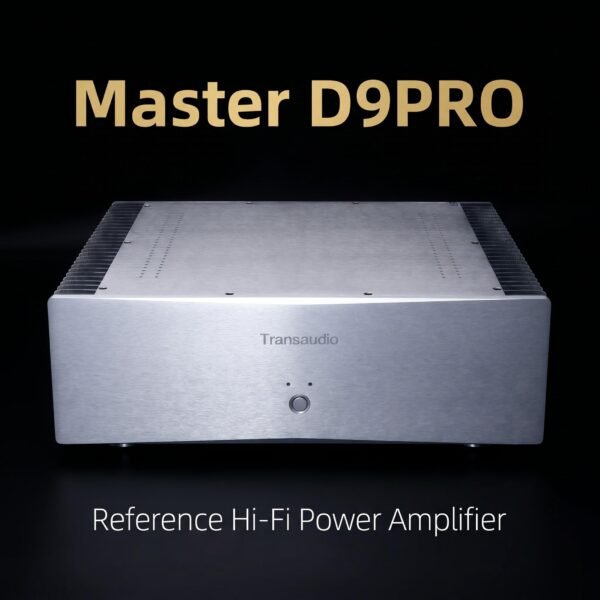

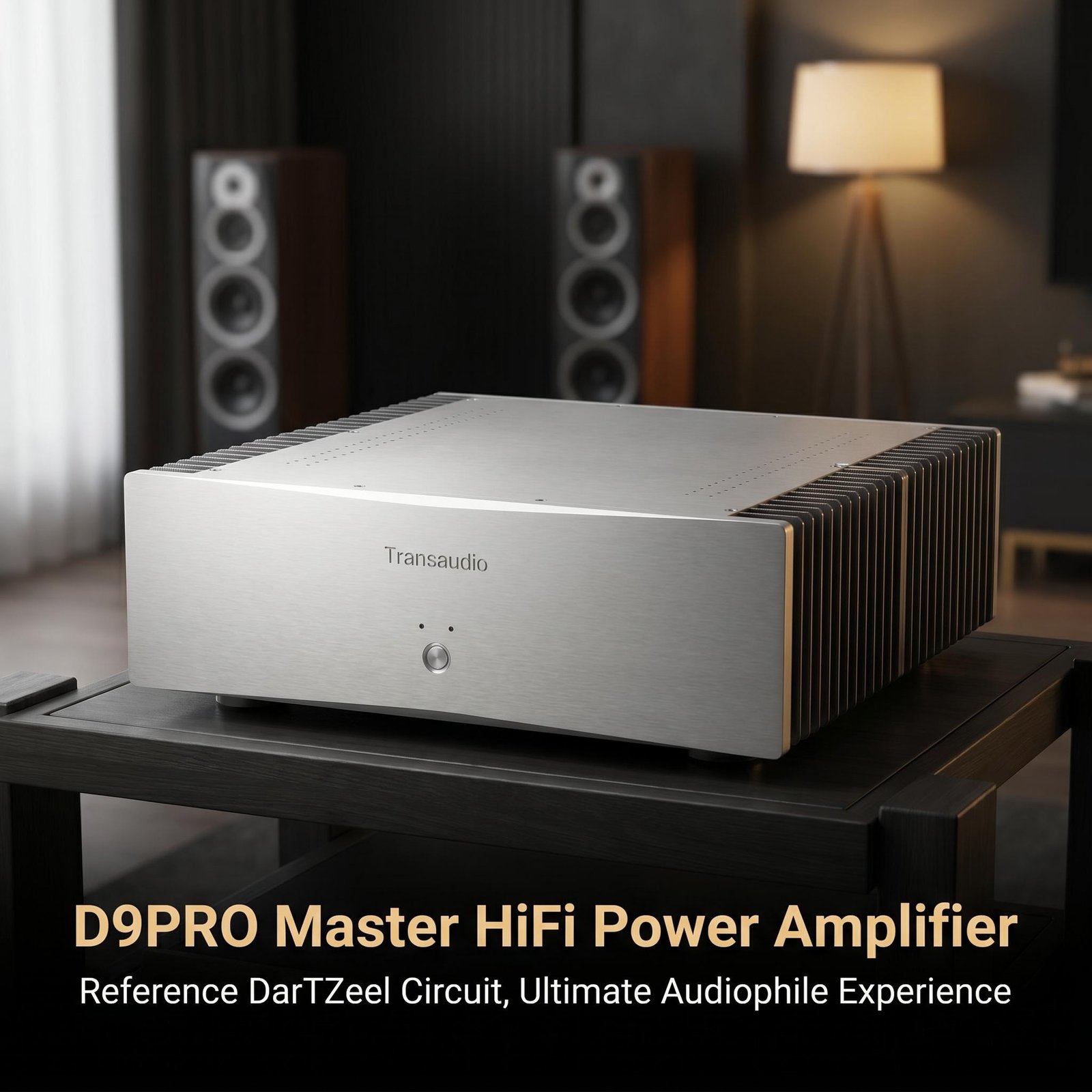

DarTZeel large-loop feedback-free amplifier circuit;
Warm, mellow, comfortable, and pleasing sound;

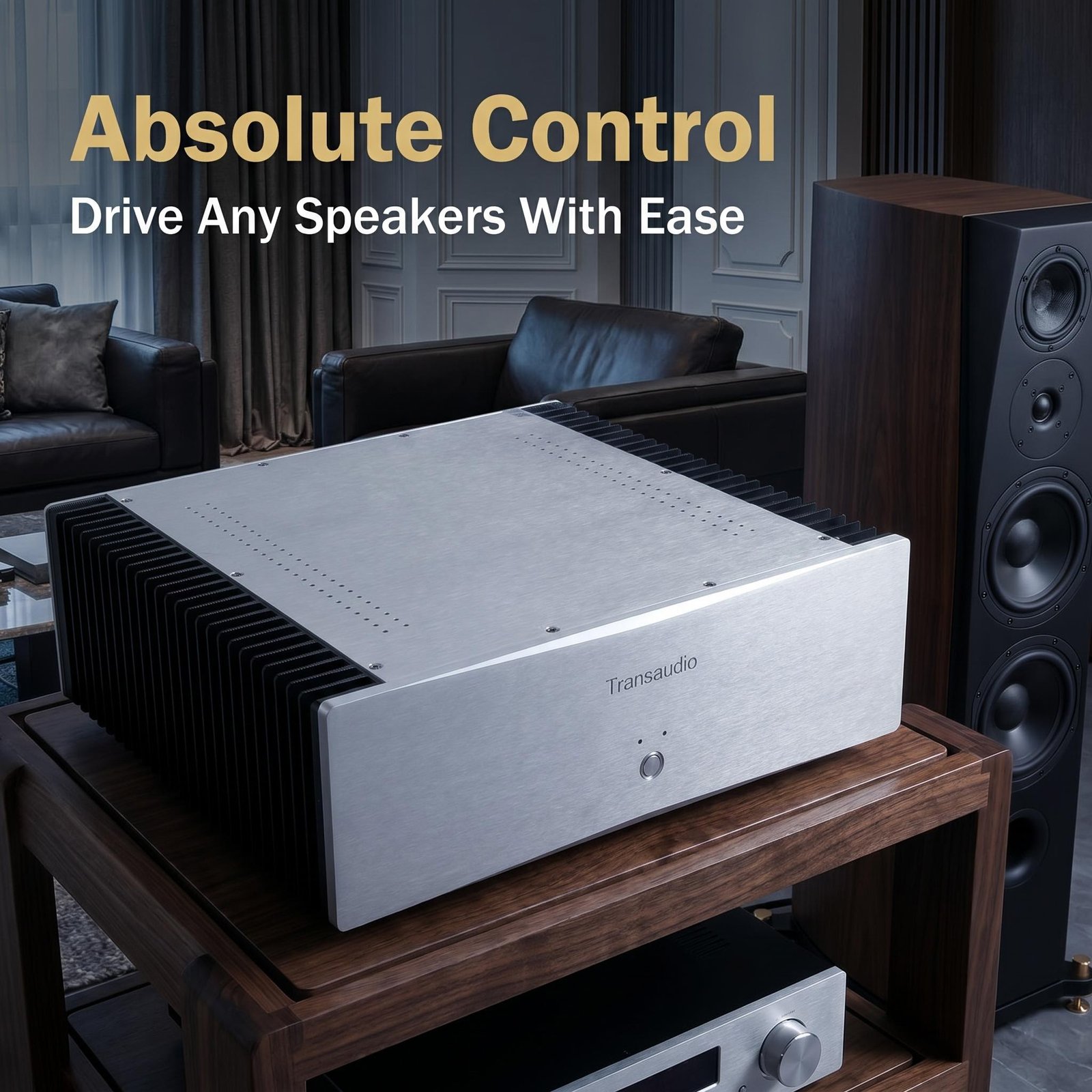

High damping coefficient for precise control of any speaker;

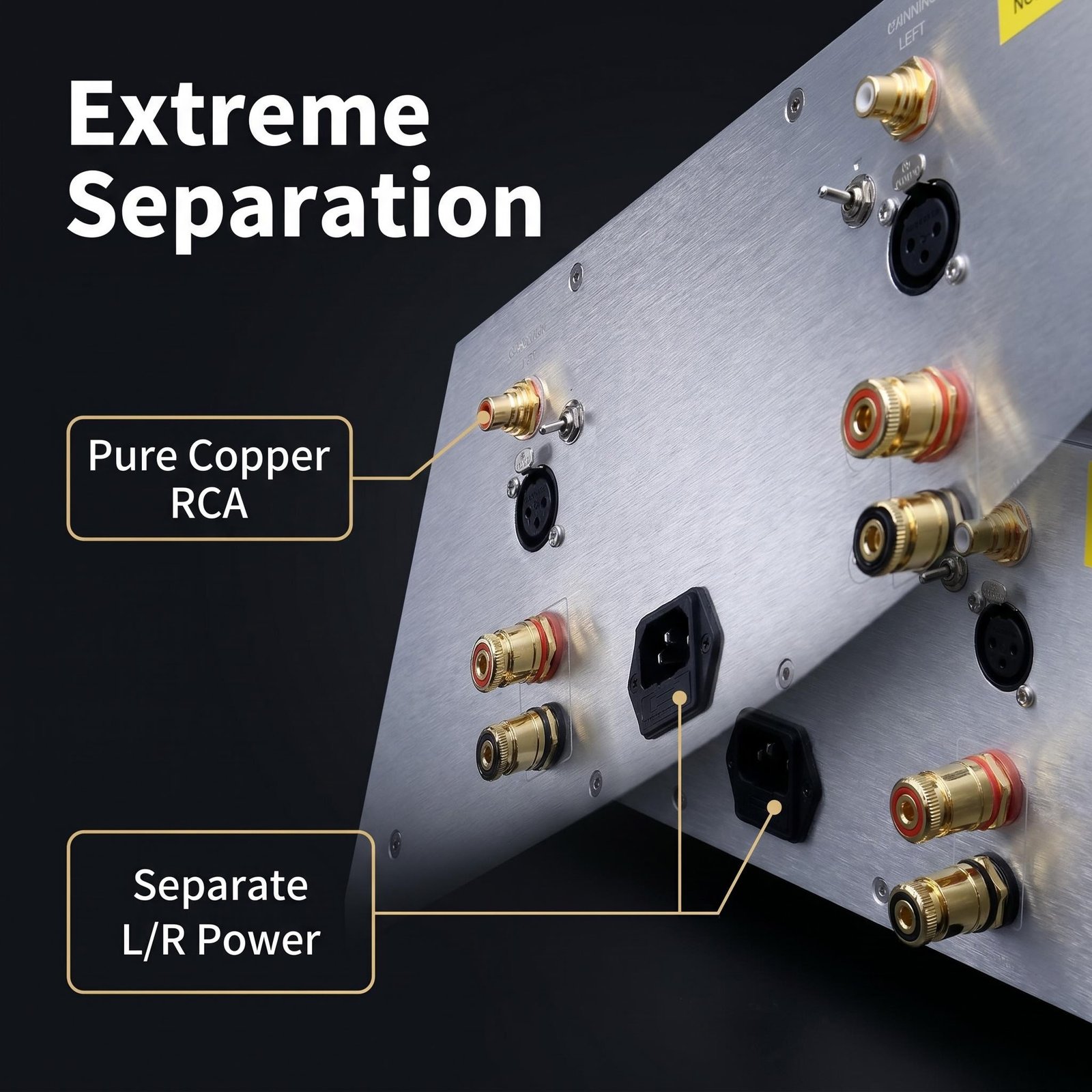

Two-channel to one-channel design with independent power supply for the left and right channels, achieving extremely high separation;
Features soft-start and comprehensive speaker protection circuitry.

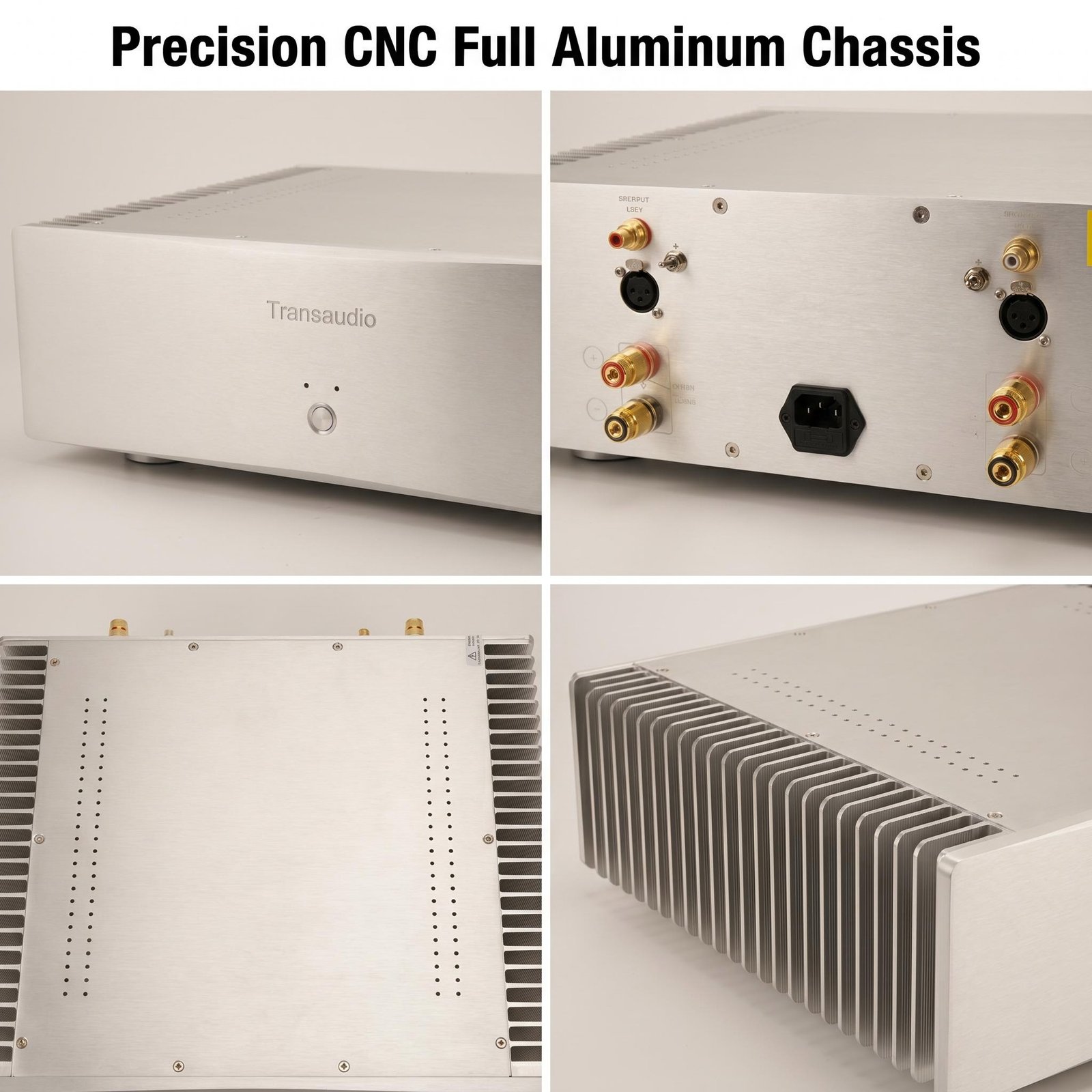

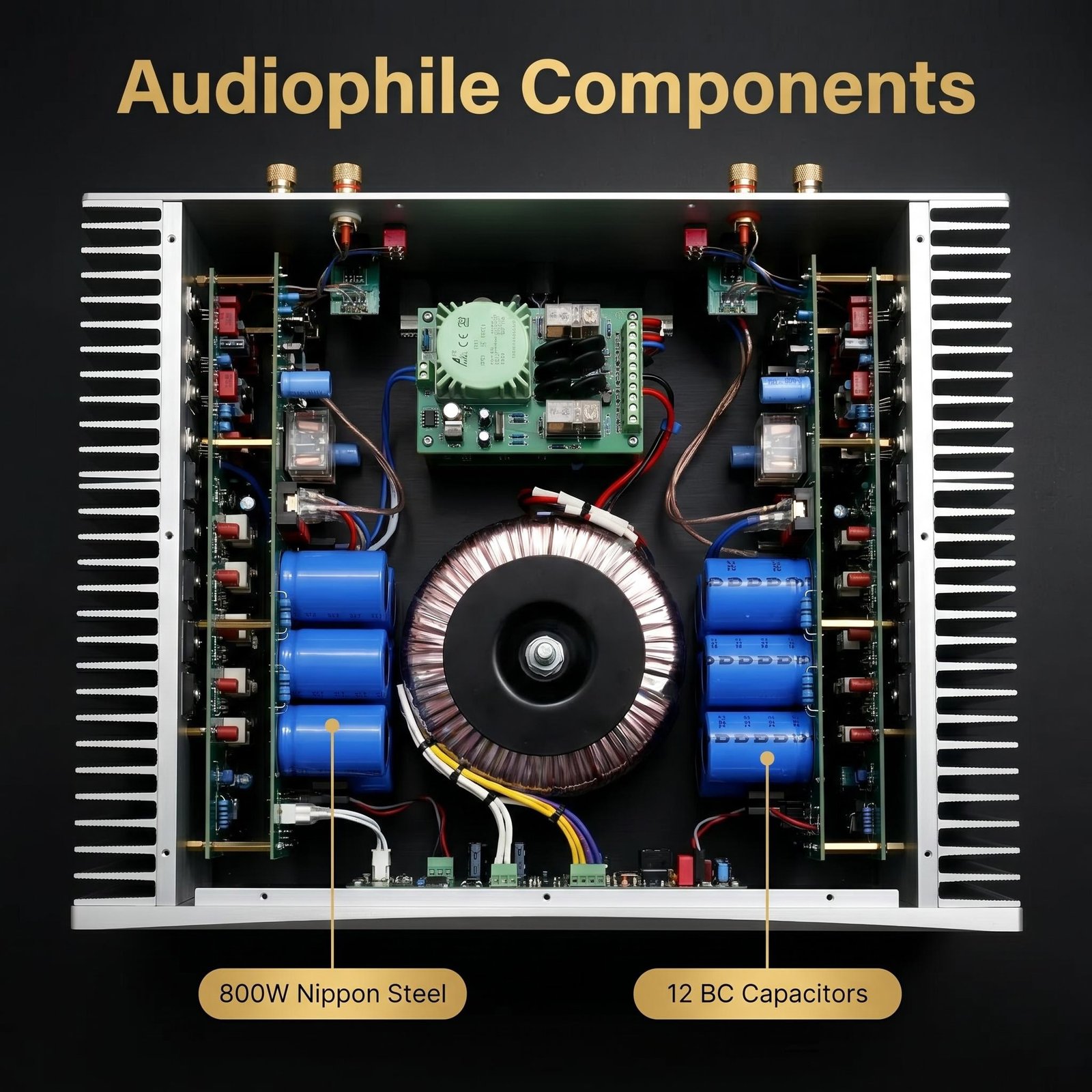

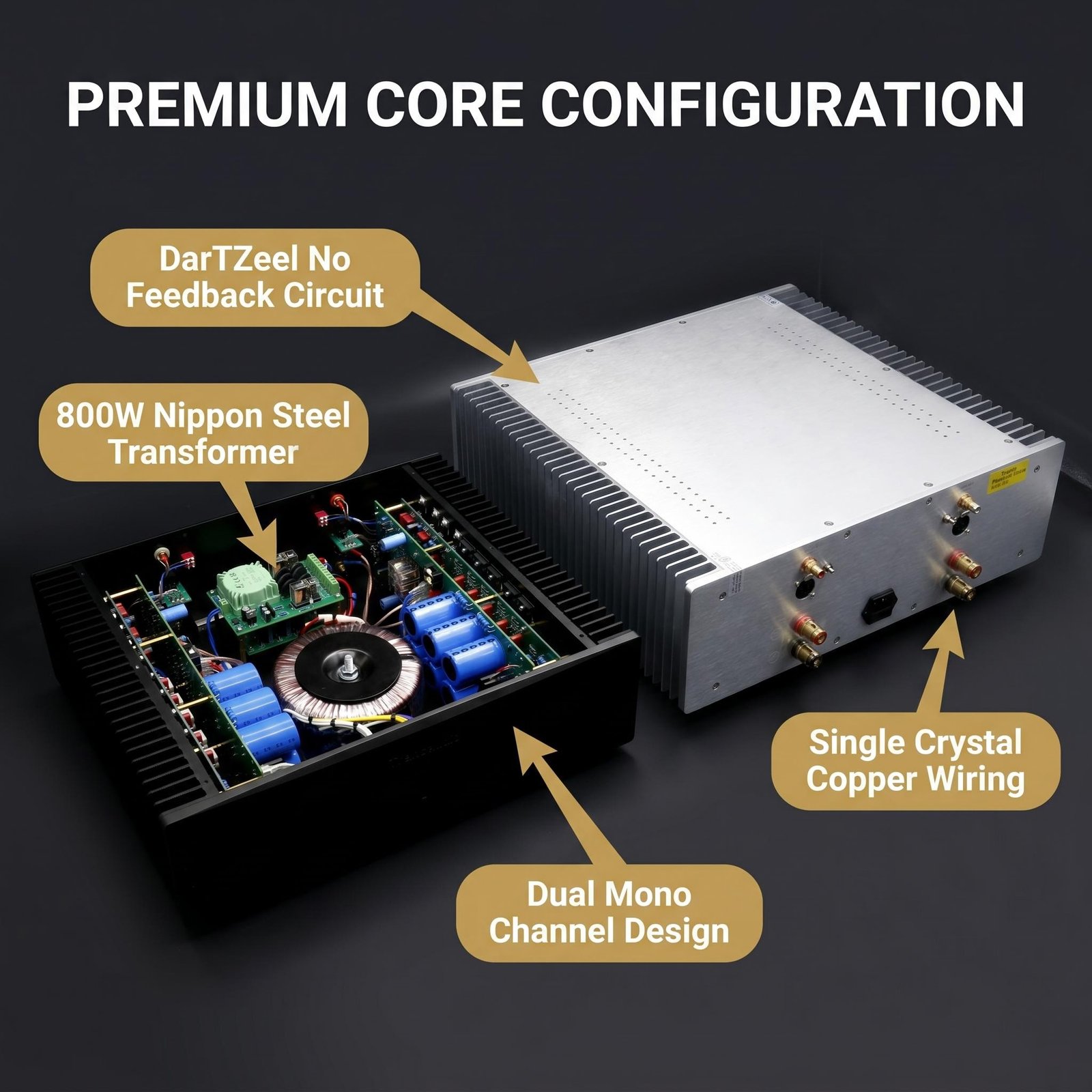

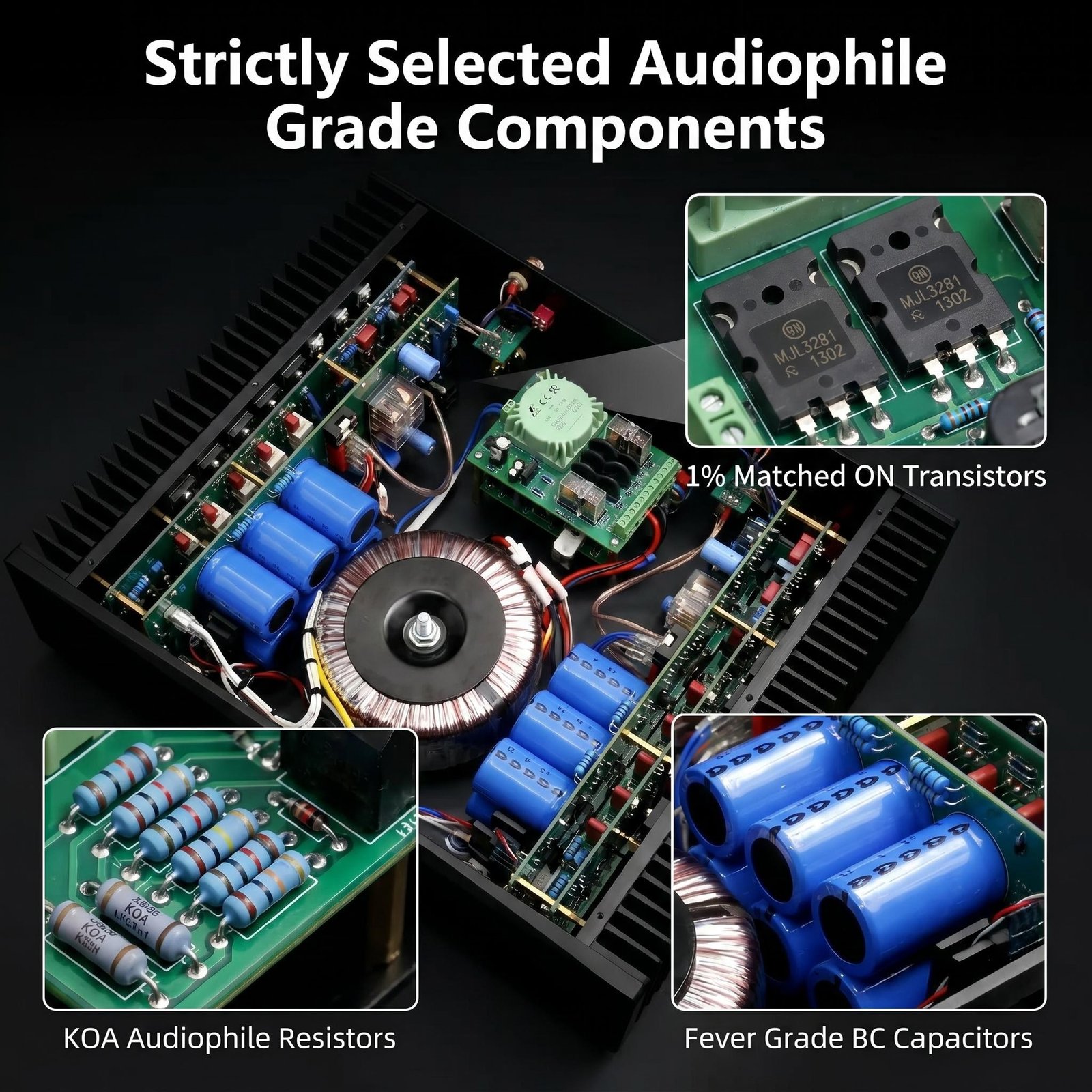

Materials: 10 pairs per group, 5 pairs per channel; Precision testing, 1% matching accuracy; ON MJL3281/1302; High output current capability; Taiwan single-crystal copper wire for both small signal and high current cables; High-end pure copper RCA terminals and binding posts; 800W high-end Japanese steel transformer; KOA audiophile-grade resistors; 12 audiophile-grade BC electrolytic capacitors; CNC machined all-aluminum high-precision chassis

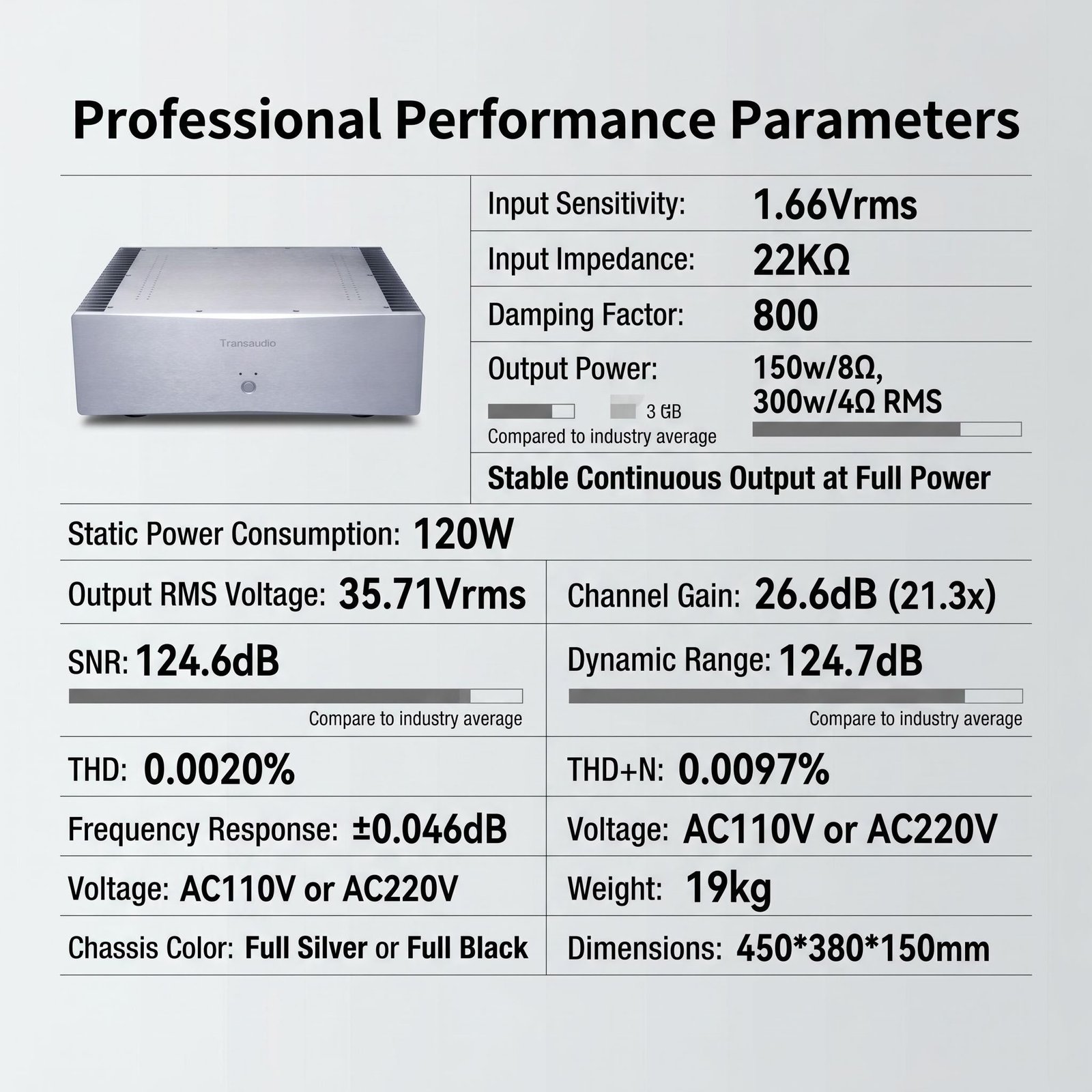

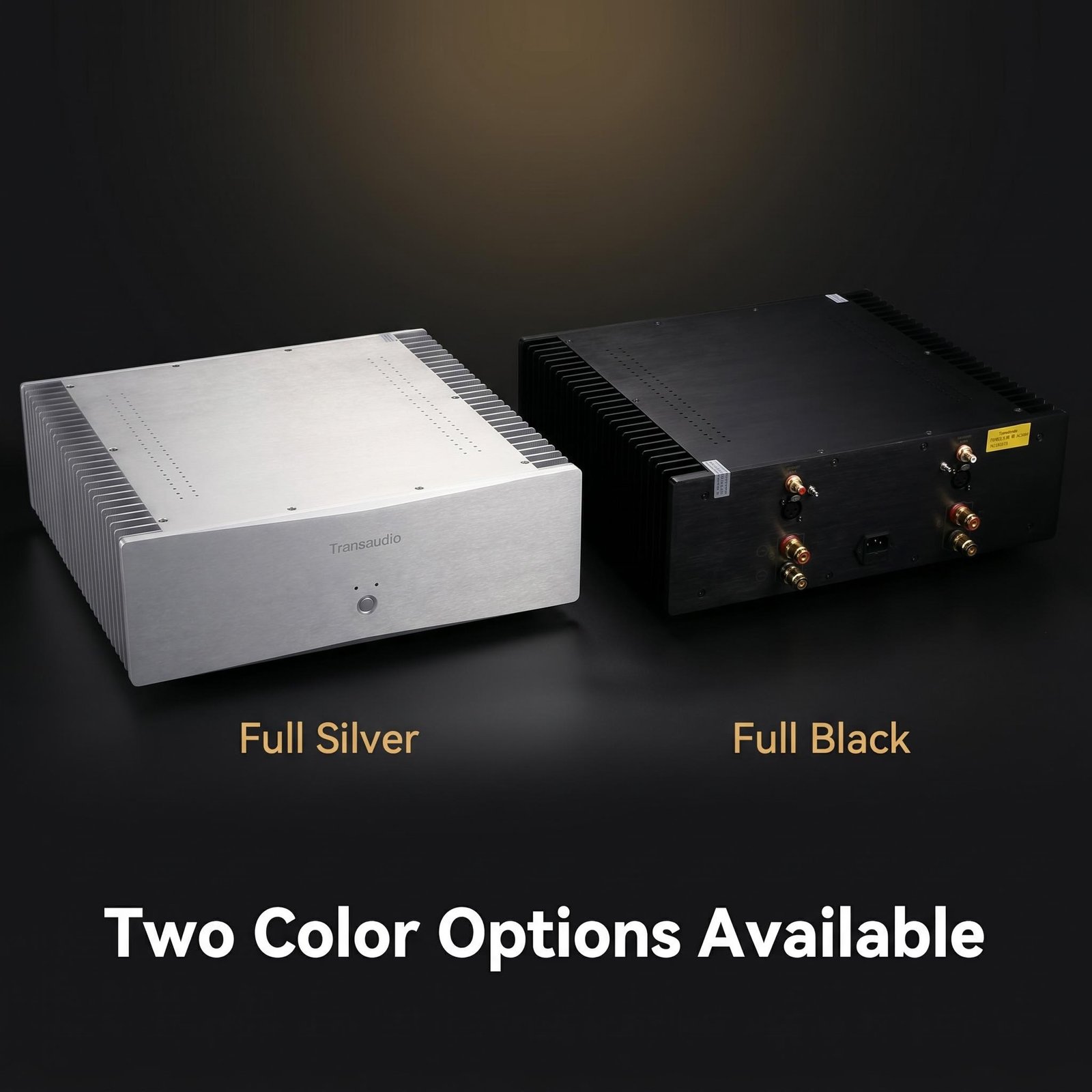

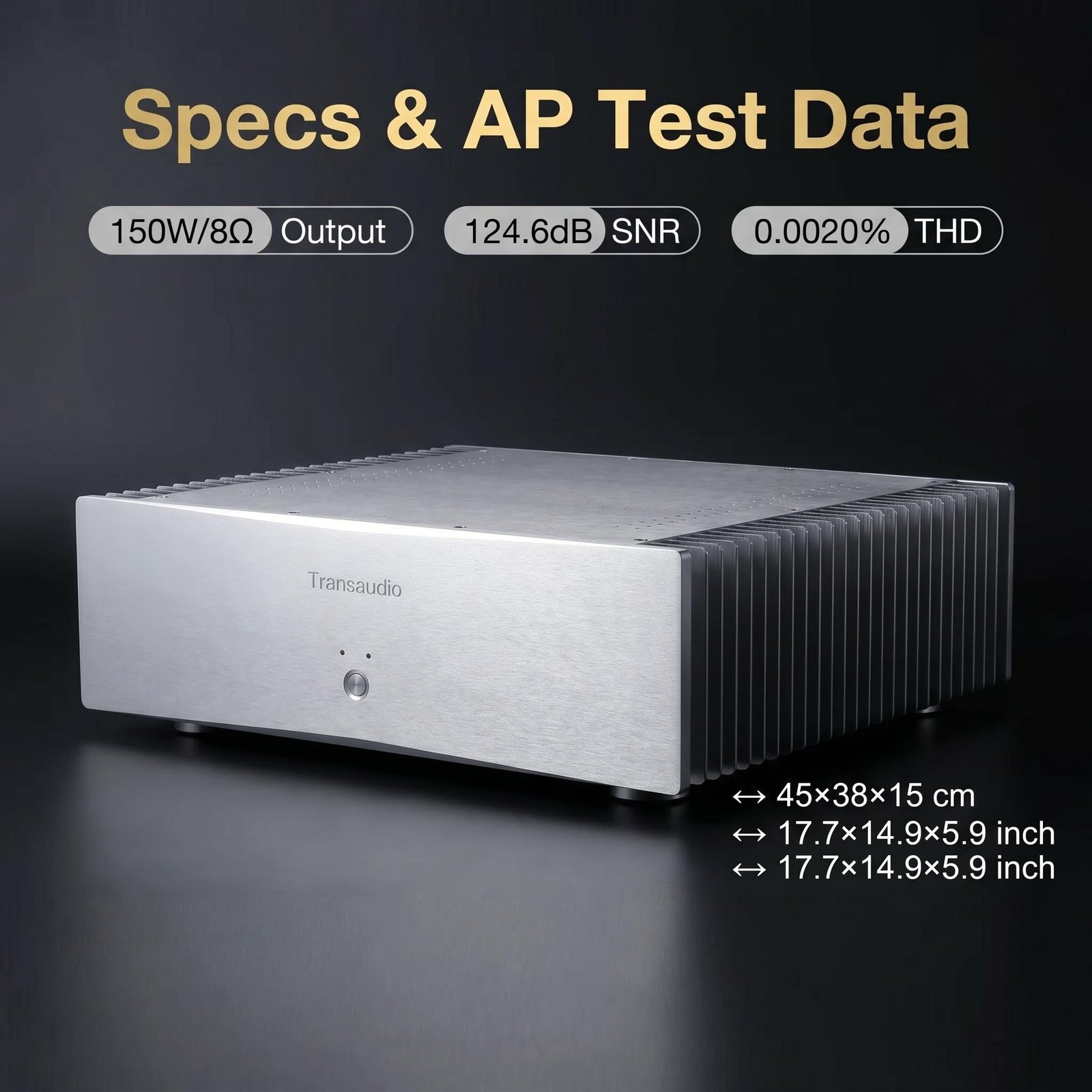

Specifications: Input Sensitivity: 1.66Vrms; Input Impedance: 22KΩ; Damping Coefficient: 800; Output Power: 150W/8Ω, 300W/4Ω RMS power, capable of stable full-power output for extended periods; Static Power Consumption: 120W; Power Supply Voltage: AC110V or AC220V; Body Color: All silver or all black; Net Weight: 19kg; Dimensions: 450*380*150mm
AP Test Parameters (8Ω) (800W load test)
Output RMS: 35.71Vrms
Channel Gain: 26.6dB (21.3x)
Signal-to-Noise Ratio: 124.6dB
Dynamic Range: 124.7dB
Total Harmonic Distortion: 0.0020%
Total Harmonic Distortion Plus Noise Distortion: 0.0097%
Frequency Response Bandwidth: ±0.046dB
